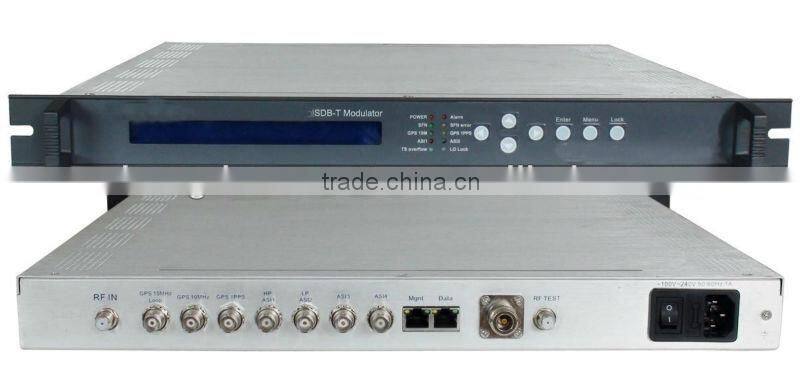

ISDB-T Digital Led Module

Name: ISDB-T Digital Led Module
Brand: shida
SKU: 134428489
Availability: InStock

Chengdu Star-Xinhui Tel-Communicational Co., Ltd.

US$ 1 - 10,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

shida

Model Number:

SDC-3000M

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name shida

Model Number SDC-3000M

Specifications

ARIB STD-B31 standard
four TS hot backup input
upgraded and controlled through network system

Product Description

Features

1 Full complying with ATSC A/53 standard

2 Constellation mapping:8-VSB

3 EN50083 ASI and SMPTE 310M interface standard

4 Dual channel DVB-ASI and SMPTE-310M input, automatic switch-over and hot backup

5 RF range: 40MHz~860MHz,1Hz stepping

6 Front panel and IP long distance control

7 RS coding, data interlacing, Trellis coding

8 Channel bandwidth: 6MHz

9 Excellent RF output performance: EVM,MER,SNR,shoulder level and so on

10 Remote maintenance, monitoring and software upgradin

11 Keyboard operation and LCD display

12 Network management software

Specification

Signal input	4 Way ASI input, hot backup, BNC interface
	GPS 10MHz reference clock input, BNC interface
	GPS 1PPS input, BNC interface
	Connector Specifications: BNC Block, impedance 75Ω
Modulation	Standard	ARIB STD-B31
	Mode	mode 1(2k),mode 2(4k),mode 3(8k)
	Constellation	DQPSK,QPSK,16QAM,64QAM
	External coding	RS (204,188)
	Internal coding	Convolution (1/2,2/3,3/4,5/6,7/8)
	Guard interval	1/4,1/8,1/16,1/32
	Hierarchy mode	A,A+B,A+B+C
	Time domain interlacing	mode 1:0,4,8,16 mode 2:0,2,4,8 mode 3:0,1,2,4
	Bandwidth	6MHz,7MHz,8MHz
RF Out	Connector	N Type, 50ΩImpedance
	RF range	40~860Mhz,1hz step
	Output level ATT	-16dbm~+3dbm,0.5db step
	MER	≥ 40db
System	LCD display, keyboard and NMS operation
System	Supporting software upgrading through network
General	Demission (WLH)	482mm×455mm×44.5mm
	Weight	6kg
	Temperature	0~45°C(operation),-20~80°C(storage)
	Power supply	AC 100V~240V,50/60Hz
	Consumption	22W
