Specifications
Automatic solder feeder:1.wire dia.0.4 0.5 0.6 0.8 1.0 1.2 1.6 mm
2.interval time 0~3.5s
3.feeding speed 14~35s

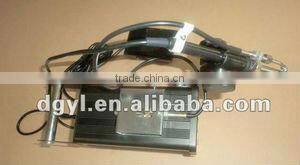

ULUO376D automatic solder feeder :
Power consumption | 90W |
Voltage | AC 220V/110V |
Temperature Range | 200°C-480°C |
Temperature Stability | ±2°C(stationary,no load) |
Tip to Ground Resistance | <2Ω |
Tip to Ground Potential | <2mV |
Motor | Step motor |
Feed speed | about 2.7mm/s-27mm/s(36º/s-360º/s) |
Feeding speed | 0-150mm |
Feeding interval time | 0-2.7s |
Backing time | 0-0.9s(about 0-25mm,constant speed 360º/s) |
Feeding mode | Auto(1-9) Manual(0) |
Diameter of solder wire | 0.3, 0.4, 0.5, 0.6, 0.8, 1.0,1.4, 1.6(mm) |
Weight | about 4kg |
Features:
1.High frequency current heating,temperature controlled by K-type sensor,rapid temperature rising and thermal recovery.
2.Automatic soldering wire breaking,ESD safe design
3.Micro computer control,temperature adjusted by buttons,digital temperature calibration,auto sleeping function
4.Auto and manual feeding modes available.Feeding times can be set.
5.Feeding speed ,length and interval time can be adjusted,with adjustable backing function.
6.Pedal switch and hand switch available
7.Can be used as a lead free soldering only
8.Can prevent soldering wire from spattering during soldering process.
We are main manufacture high frequency lead free soldering station and soldering tips.
900M,200M,500M,GOOT,UNIX,Weller series soldering tips.we also customize special soldering tips as per customers' demand.
Welcome to inquiry!
