MPO Trunk cable
MTP/MPO trunk cables connect MTP/MPO modules together as a permanent link. The trunk cables are available with 12, 24, 48 and 72 fibers. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP/MPO also provide much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel. The merits of MTP/MPO trunk cable generally include:
High quality—MTP/MPO trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MTP/MPO trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.
Time saving—With the special plug and play design, MTP/MPO trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
MPO Fiber Trunk Patch cable are terminated with MPO connector on both end. All of OMC’s MPO Connectors are from Taiwan,Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO products’ Standard:
1. Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
2. Structured cabling per TIA-568-C
3. Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
4. InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MTP LGX Cassette, you can choose any of the polarities as you need.
MPO patch cord’s Specification:
MPO/MTP’s spec items. |
Single mode (UPC Flat polish, APC 8 degree polish) |
Multimode (PC Flat polish) |
Insertion loss |
Standard loss≤0.7dB Low loss≤0.35dB |
Standard loss≤0.5dB Low loss≤0.35dB |
Return loss |
≥55dB |
≥35dB |
Durability |
<0.3dBtypical change, 200 matings |
|
Interchangeability |
≤0.2dB |
|
Tensile strength |
>70N |
|
Operating Temperature |
-40 to + 85°C |
|
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
MPO Interference index
Connector type |
Testing items |
Min |
Max |
MPO PC |
ROC_X(abs)(mm) |
500 |
|
ROC_Y(abs)(mm) |
50 |
||
Angle_X(deg) |
-0.2 |
0.2 |
|
Angle_Y(deg) |
-0.2 |
0.2 |
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
Max.DH.Ave(nm) |
-300 |
300 |
|
Max.DH.Adj(nm) |
-300 |
300 |
|
Max. Core Dip(nm) |
-300 |
300 |
|
Fiber height(nm) |
-300 |
300 |
|
ROC_X(abs)(mm) |
1000 |
3000 |
|
MPO APC |
ROC_X(abs)(mm) |
500 |
|
ROC_Y(abs)(mm) |
50 |
||
Angle_X(deg) |
-0.2 |
0.2 |
|
Angle_Y(deg) |
7.8 |
8.2 |
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
Max.DH.Ave(nm) |
-300 |
300 |
|
Max.DH.Adj(nm) |
-300 |
300 |
|
Fiberheight(nm) |
|
|

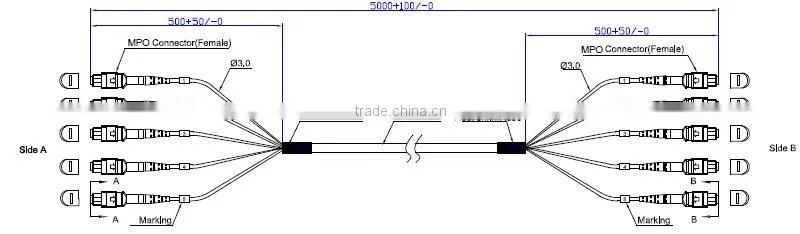

Cable Structure:
Features:
1. Low insertion loss, high return loss
2. MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies
3. Economical solution for mass-termination of fiber
4. Designed for low loss and standard loss SM and MM applications
5. Ruggedized round cable, oval cable and bare ribbon options available
6. Color coded housings available to differentiate fiber type, polish type and/or connector grade
7. Good in repeatability and exchangeability
AVAILABILITY:
1. Ribbon and bundle cable available;
2. Patch cord, pigtail cable assemblies available.
3. MT-MT ribbon patch cord is available.
Packing: PE bag,carton
Shipping: by air by DHL by FedEx or upon on requests.
We offer the sincere dedicated service!
Before Sale:
detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After Sale:
Any problems on the product, please contact us
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
OMC INDUSTRY CO., LIMITED.
Add:3F, No.4 Bldg. Yujingtai industry park. Huarong Rd. Longhua District Shenzhen China. 518109
Tel: 0086-755-85266015
Can I get some samples ?
Yes, Sample order is available for quality check and market test .And you just to pay the express cost.
What's your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.
What's the delivery time ?
It usually takes about 3-7 working days .
