Duct drop cable

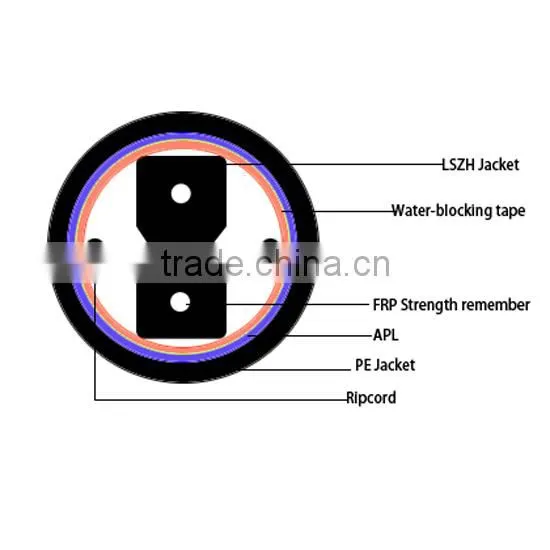

Bow-type Drop cable is Special design for FTTH drop section. The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) or metal are placed at the two sides. A water-blocking tape and an APL is applied, Then, the cable is completed with a black or color LSZH sheath.
Characteristics
-Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
-Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
-Simple structure, light weight and high practicability
-Fibers count is 1-12 cores, can be other fiber cores upon request.
-Novel flute design, easily strip and splice, simplify the installation and maintenance
-Low smoke, zero halogen and flame retardant sheath
Parameters:
Cable |
Fibers |
Cable Size(mm) |
Cable Wt(kg/km) |
Tensile strength Long/short term(N) |
Crush Strength (N/100m) |
Banding Radius Static/Dynamic (mm) |
GJYXFCH -1 |
1 |
7.3±0.2 |
42 |
40/80 |
2000 |
15/30 |
GJYXFCH -2 |
2 |
7.3±0.2 |
42 |
40/80 |
2000 |
15/30 |
Storage Temp: -20°C ~+50°C
Other fibers please contact our sales representative.
Application:
Packaging
one piece in a platic bag.
Several bags in a carton of 54*39*35cm
Shipping
goods shipped by air or by land transporation.
1,Free samples can be provided.
2,OEM service
3,Nice payment terms.
4,high quality products
5,Competitive price,
6,fast delivery
7,New product priority sell
8,Optical Network Project Consultant.
9,New Products development for customer.
10,Cost-effective logistic solution can be chosen for you.
11,The specific sales person to serve our customers so that you can feel easy and efficient.
PLC splitters
Adapters
Patch cord
1,Can we get free samples?
Yes. Free samples can be offered for your test. You only need to pay the freight.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3,How will we do if we are not familiar with the optical products?
Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5,What is your quality control.
source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
optical test. Our products are strictly tested in accordance with IEC and ITU standard.
we have 30% spot test by Quality Assurance Department after the products finished.
