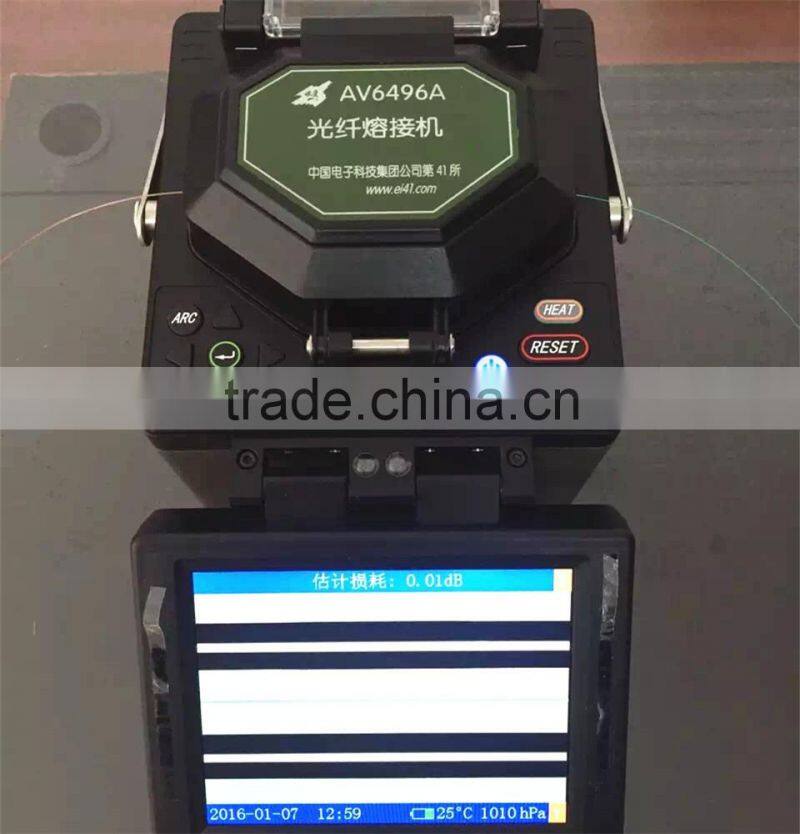

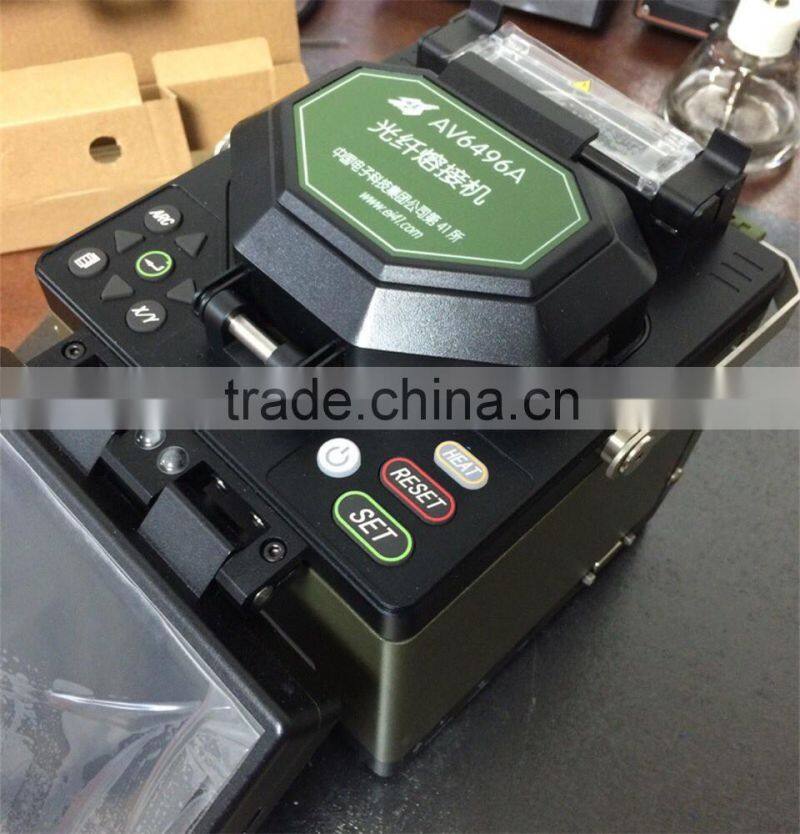

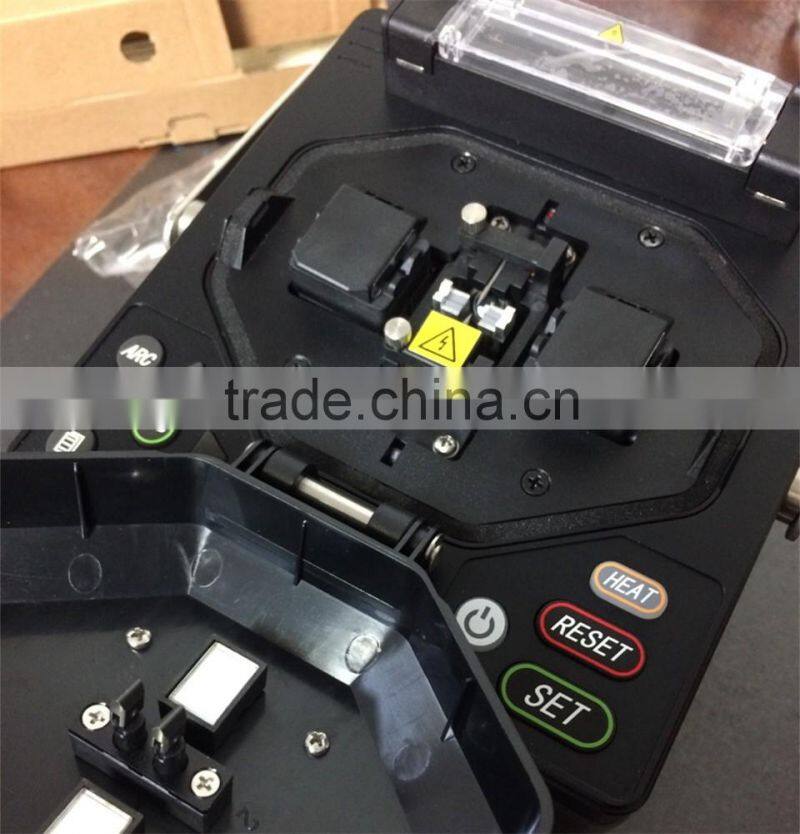

Optical Fiber Fusion Splicer

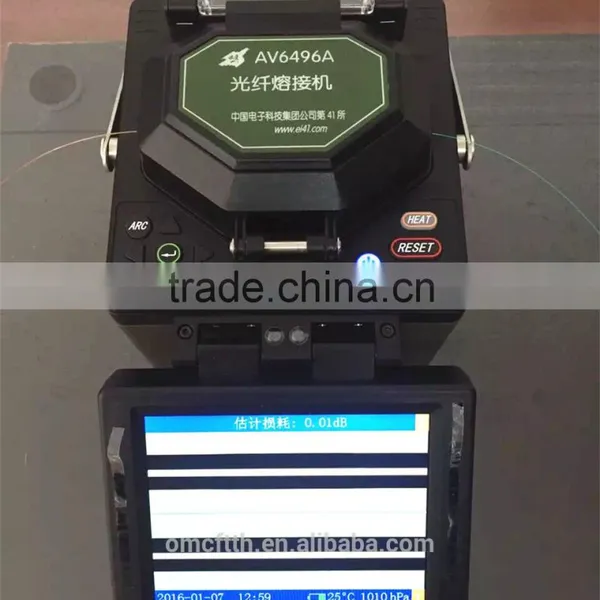

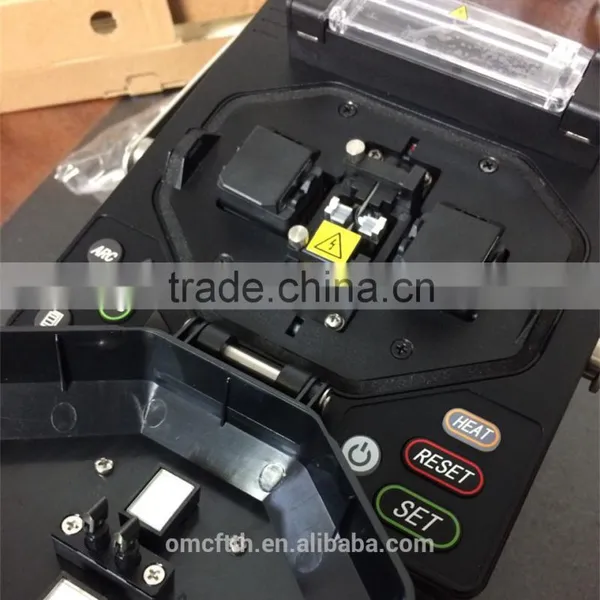

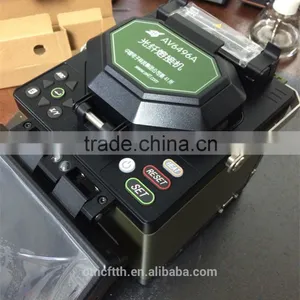

AV6496A is an optical fiber splicing device with a brand new design. With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx. Lightweight and compact, it is easy to use even in confined space. The novel fiber imaging system makes the image clearer. The real-time embeded Operating System provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long-time field work. The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environments
Main Features:
ο New fully-digitalized design;
ο Small in size, lightweight: only 2.8kg with battery;
ο Takes only 8 seconds for splicing,25 seconds for pyrocondensation;
ο Can set automatic start of splicing or of pyrocondensation upon close of the cover;
ο Simultaneous display of X/Y axis; zoom in up to 304 times original size;
ο Real time discharging for adjustment; no need for further adjustment;
ο Electrode has a long life; discharging times up to 4000;
ο With USB and VGA ports;
ο 5.7 inch digital high resolution LCD;
ο Precise real-time display of remaining battery capacity;
ο Built-in high capacity battery, which enables up to 220 times of splicing and heating;
Technical Highlights:
HD Optical Image Acquisition System
ο HD aligner for double separate optical fibers
ο High performance CMOS sensor
ο Sensor pixels 640*480
Len Imaging Optical Fiber Aligning System
ο Fast evaluation of fiber profile
ο Precise fiber alignment
ο Precise evaluation of splicing loss
Real-time Discharging Correction System
ο High performance discharging electrode
ο AC-DC mix discharging technique
ο Current feedback and environment compensation
Typical Application:
AV6496A Fiber Splicer is mainly applied in fiber cable construction, fiber line maintenance, emergency repair of fiber cables and tests and production of optical fiber components.
Technical Parameter:
Applicable Fiber |
SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF |
Average Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return Loss |
<-60dB |
Operation Mode |
Auto,Half auto,Manual |
Align Mode |
Advanced PAS align mode. |
Fiber Diameter |
clad diameter:80µm∼150µm,coating diameter:100µm∼1000µm |
Cleave Length |
8∼16mm(coating diameter<250µm), 16mm(coating diameter 250∼1000µm) |
Magnification |
Vertical 152times,horizontal 304times. |
Image Display |
5.7´ 640*480 LCD. |
Pull Test |
Standard 2N(optional). |
Pyrocondensation Tube |
40mm,60mm and a series of micro Heat-Shrinkable Tubing. |
Battery Capacity |
Typically splice 220 times, charging for 3.5 hour(available when charge). |
Battery Lifetime |
Cycle life up to 300∼500 times, replaceable. |
Electrode Lifetime |
>4000 times, replaceable |
Lighting for Construction |
Built-in super High-brightness LED supply convenient for night work |
Ports |
USB,VGA |
Power Supply |
Built in 11.1V Lithium Ion Battery.AC adopter(input AC100∼240,output DC13.5V/4.5A) |
Environment Adaptation |
Temperature range:-10℃∼50℃;Humidity:95%RH(40℃,no condensing);Altitude:0∼5000m |
Size |
L×W×H=160×150×140(mm) |
Weight |
2.3kg(no battery ), 2.7kg (including battery) |
Indent Information:
Main body: AV6496A Fiber Splicer
Standard equipment:
Key |
Description |
QTY |
1 |
AV6496A optical fiber fusion splicer |
1 |
2 |
AC power adapter |
1 |
3 |
AC current cable |
1 |
4 |
Standby electrode |
1 |
5 |
Blower brush |
1 |
6 |
Bottle with siphon |
1 |
7 |
Fiber bracket |
1 |
8 |
User´s manual |
1 |
9 |
Luxury tote kit |
1 |
10 |
Fiber Cleaver(AV33012) |
1 |
11 |
Li-Ion battery |
1 |
one piece in a paper box
other size carton is available too.
Shipped in 3 days after payment
We offer the sincere dedicated service!
Before Sale:
detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After Sale:
Any problems on the product, please contact us

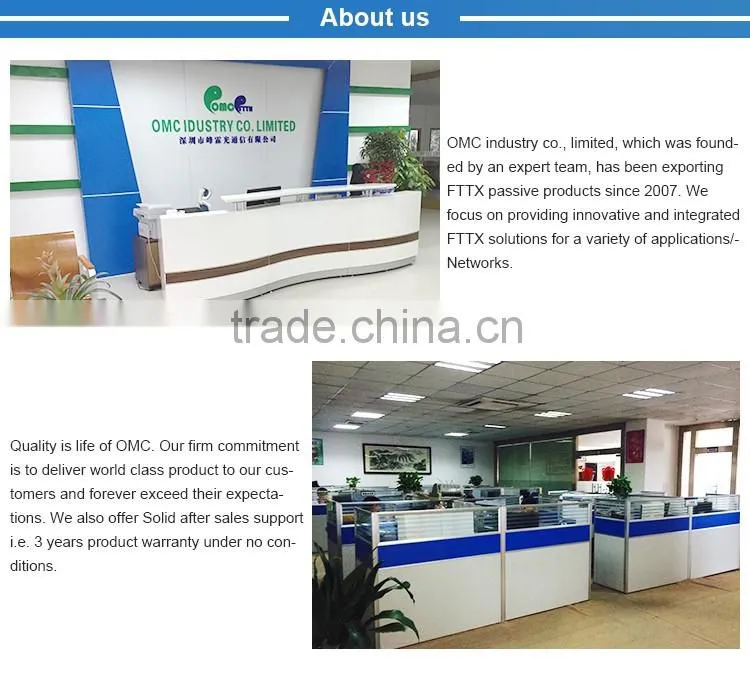

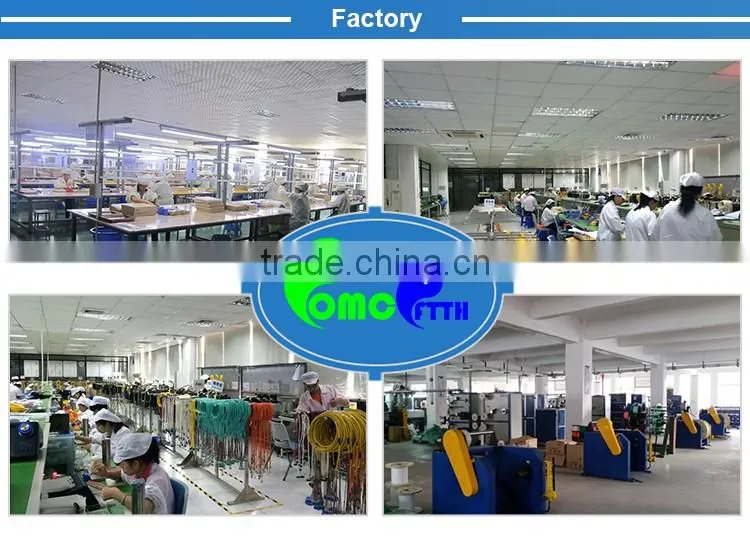

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
1. What's your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T, Western Union.Cash Etc.
2. What's the delivery time ?
It usually takes about 3-7 working days .
