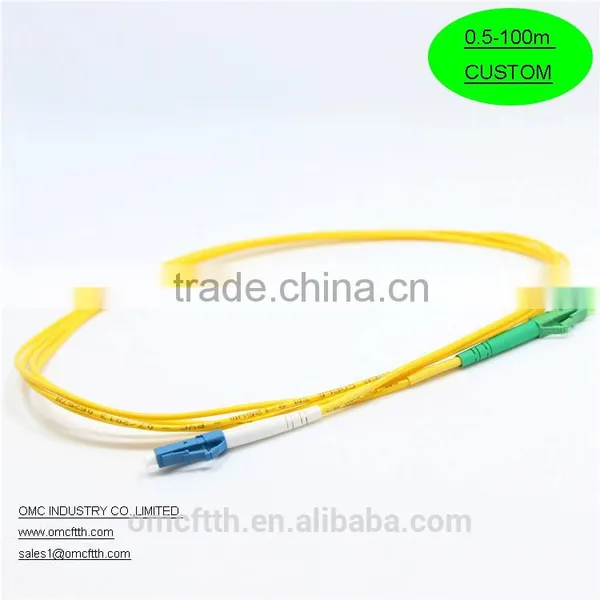

High quality China-made LC UPC-LC APC Simplex Fiber optic patch cord
- 1000000 Perch / Perches per Month
- Shenzhen
- Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OMC or OEM | Model Number: | LC UPC-LC APC Simplex |
Product Description
High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Products info
Connector | LC to LC | Jacket OD | 2.0mm |
Fiber Mode | 9/125μm | Jacket Color | Yellow |
Polish | UPC to APC | Wavelength | 1310/1550nm |
Fiber Type | Simplex | Jacket Material | PVC/LSZH |
Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
Return loss | ≥50dB | Vibration | ≤0.2dB |
Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |
Geometric Specification (only for 3D interferometer tested)
Test items | Connectors | PC End-face | APC End-face |
LC | 7~25 mm | 5~15 mm | |
Apex Offset | ≤50 um | ||
Fiber Spherical Height | +/- 50 nm | ||
Angular Offset | ------ | 8°± 0.2° |

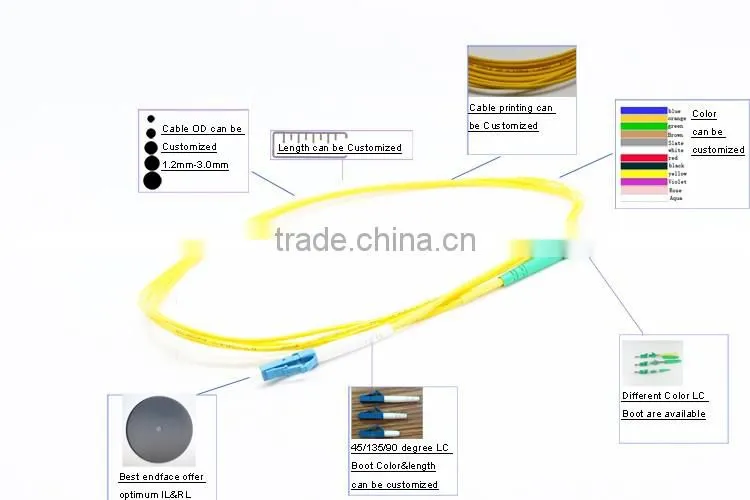

CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Physical Information
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
