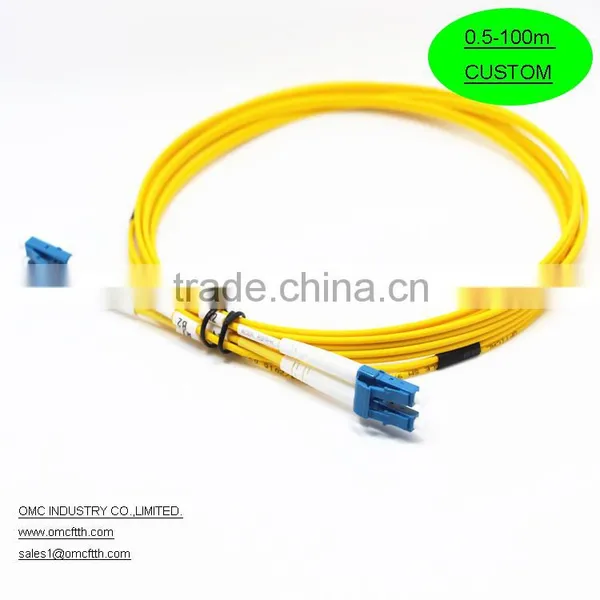

High Quality China-made LC -LC SM Duplex Fiber Optic Patch Cord
- Shenzhen
- Credit Card
You May Like
-
High Quality China-made LC APC-SC APC Duplex Fiber Optic Patch Cord
-
High Quality China-made LC-ST SM Duplex Fiber Optic Patch Cord
-
High Quality China-made FC-ST SM Duplex Fiber Optic Patch Cord
-
High Quality China-made LC UPC-SC APC Simplex Fiber Optic Patch Cord
-
High Quality China-made SC APC-FC APC Simplex Fiber Optic Patch Cord
-
Blue Singlemode SC Fiber Optic Duplex Patch Cord
Product Details
| Place of Origin | Guangdong, China | Brand Name | OMC or OEM | |
| Model Number | LC APC-LC APC Duplex |
Product Description
High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Products info
Connector | LC to LC | Jacket OD | 2.0mm |
Fiber Mode | 9/125μm | Jacket Color | Yellow |
Polish | UPC to UPC | Wavelength | 1310/1550nm |
Fiber Type | Duplex | Jacket Material | PVC/LSZH |
Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
Return loss | ≥50dB | Vibration | ≤0.2dB |
Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |
Geometric Specification (only for 3D interferometer tested)
Test items | Connectors | PC End-face |
LC | 7~25 mm | |
Apex Offset | ≤50 um | |
Fiber Spherical Height | +/- 50 nm | |
Angular Offset | ------ | |

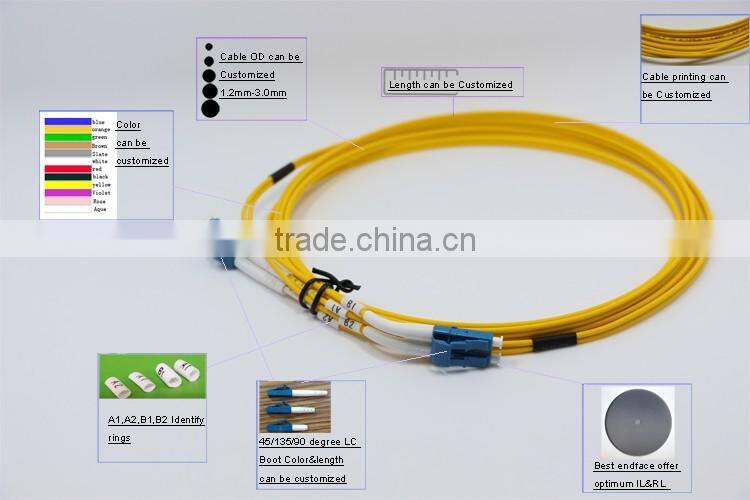

CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

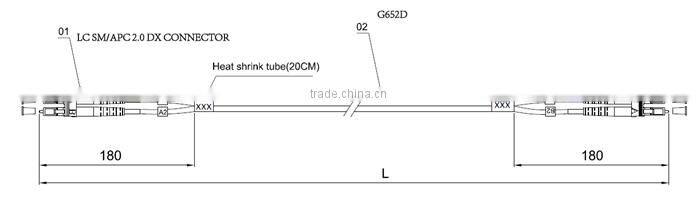

Physical Information
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm

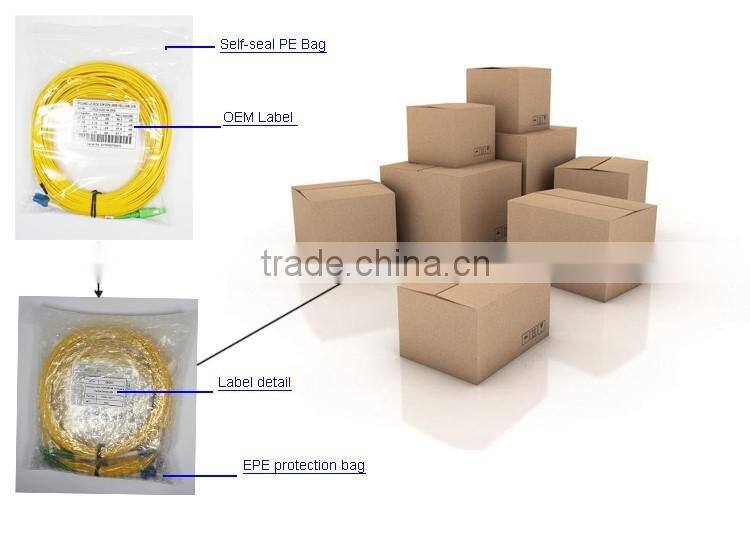

Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
