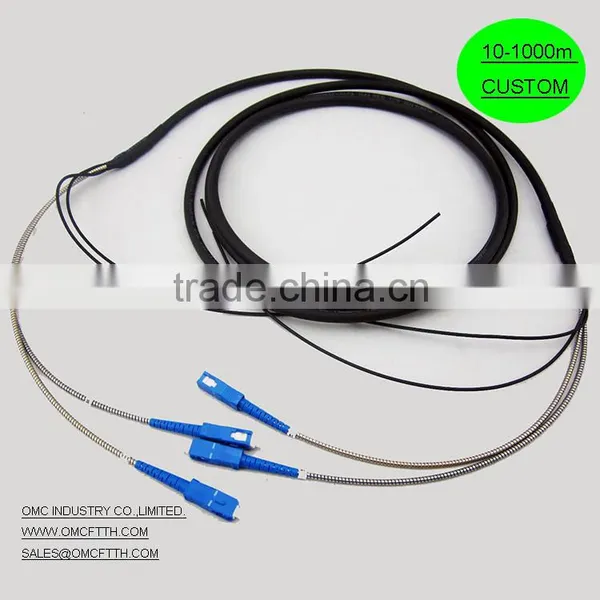

High Quality and Cost-effective 9/125μm Singlemode Outdoor Fiber Patch Cable
Outdoor Patch Cable are used in wireless base station horizontal and vertical cabling. It provides optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The 9/125μm single mode outdoor fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Products info
Connector |
SC to SC |
Jacket OD |
7.0mm |
Fiber Mode |
9/125μm |
Jacket Color |
Black |
Polish |
UPC to UPC |
Wavelength |
1310/1550nm |
Fiber Type |
G652D 2cores |
Jacket Material |
LSZH/PE |
Insertion loss |
≤0.3dB(max) |
Interchangeability |
≤0.2dB |
Return loss |
≥50dB(min) |
Vibration |
≤0.2dB |
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Polarity |
A(Tx) to B(Rx) |
Fiber Grade |
G652D |
Geometric Specification (only for 3D interferometer tested)
Test items |
Connectors |
PC End-face |
APC End-face |
Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
LC/MU |
7~25 mm |
5~15 mm |
|
Apex Offset |
≤50 um |
||
Fiber Spherical Height |
+/- 50 nm |
||
Angular Offset |
------ |
8°± 0.2° |
|
Cable information
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
||||||||
Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile (N) |
Crush (N/100mm) |
Min. Bend Radius (mm) |
Range of Temperature |
|||
Long Term |
Short Term |
Long Term |
Short Term |
Dynamic |
Static |
||||
2 |
7.0 |
42 |
200 |
400 |
300 |
1000 |
20D |
10D |
-30-+70 |
CUSTOM option
Packaging & Labeling
Physical Information
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
