Help CenterLC UPC-SC UPC DX SM Hybrid Fiber Optic Patch Cord
Related Products
-
OM3 10G SC-SC DX Fiber Optic Patch CordUS$ 0.5 - 5MOQ: 3 Pieces -
Fiber Optic SM DX LC-LC 45degree Boot Patch LeadUS$ 0.5 - 5MOQ: 3 Pieces
-
SC Fiber Optic Drop Cable Patch CordNegotiableMOQ: 1 Piece
-
ST Fiber Optic Duplex Patch CordUS$ 0.8 - 2MOQ: 5 Pieces
-
Patch Cord ST-ST SM DX 2.0 With High Quality&Low PriceUS$ 0.5 - 5MOQ: 3 Pieces

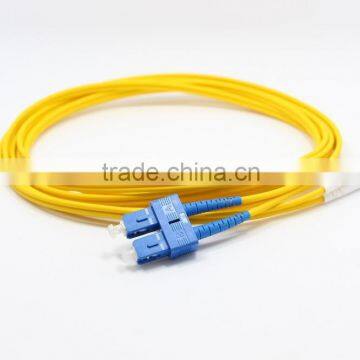

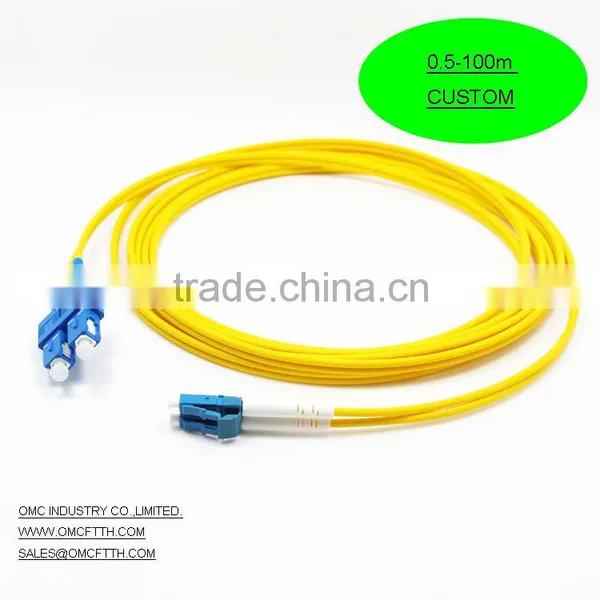

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Products info
Connector | LC to SC | Jacket OD | 2.0mm |
Fiber Mode | 9/125μm | Jacket Color | Yellow |
Polish | UPC to UPC | Wavelength | 1310/1550nm |
Fiber Type | Duplex | Jacket Material | PVC/LSZH |
Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
Return loss | ≥50dB | Vibration | ≤0.2dB |
Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |

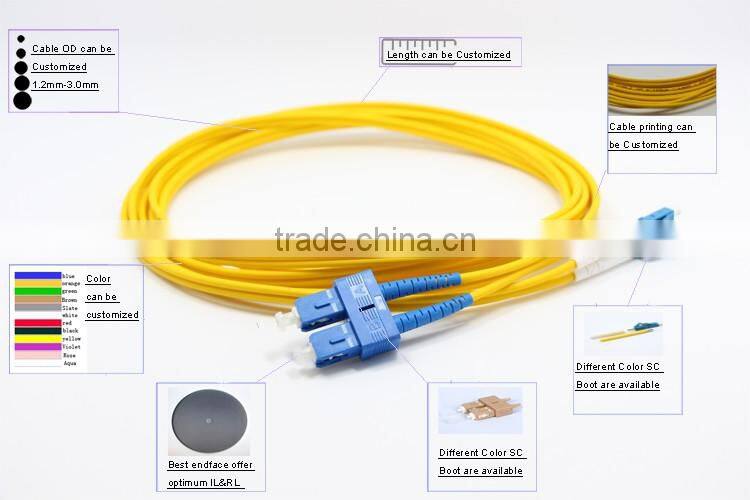

CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Physical Information

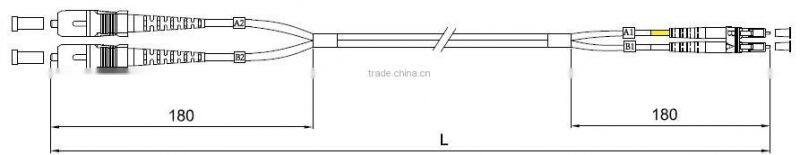

Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm

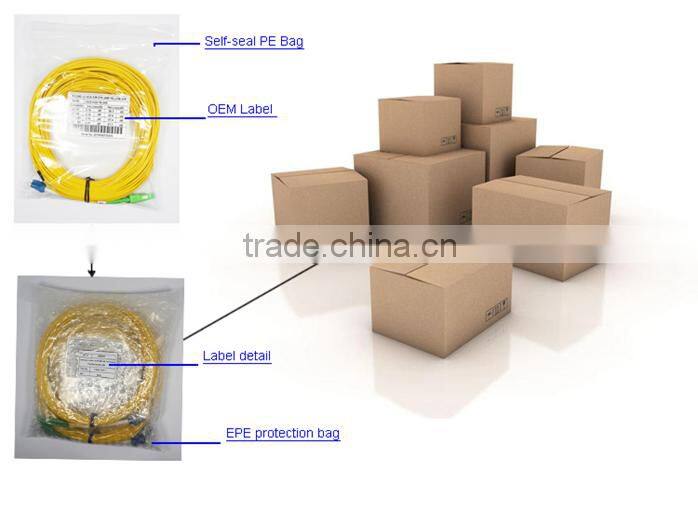

Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
We offer the sincere dedicated service!
Before Sale:
detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After Sale:
Any problems on the product, please contact us
