Help CenterLC/APC-SC/APC G657A1 FTTH Drop Cable Patch Cord From China
Related Products
-
Hybrid Fiber Optic Duplex Patch Cord LC-STUS$ 0.3 - 3.5MOQ: 1 Piece -
LC UPC-SC APC DX SM Hybrid Fiber Optic Duplex Patch CordUS$ 0.3 - 5MOQ: 1 Piece
-
High Quality Fiber Optic Patch Cord SC-FC SM DX 2.0 3MUS$ 0.3 - 5MOQ: 1 Piece
-
LC-SC DX OM1 62.5/125 Fiber Optic Duplex Patch CordUS$ 0.3 - 4MOQ: 1 Piece
-
Fiber Optic Duplex Patch Cord With Blue CableUS$ 0.8 - 2MOQ: 5 Pieces

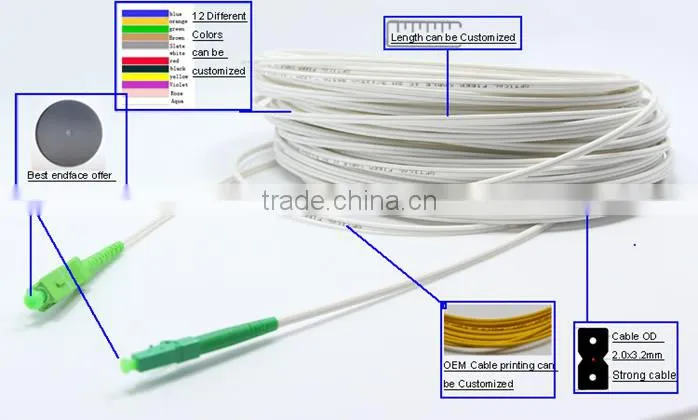

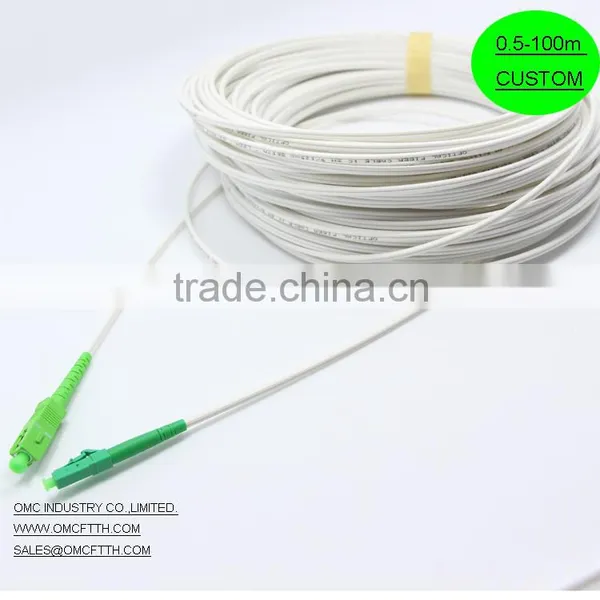

FTTH Drop cable patch cord is a kind of patch cord but assembly with ftth drop cable. This is last 100m cable in FTTH project. Used widely in Fact plate, terminal box, ONU tec.
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
OMC’s FTTH Drop cable patch cord can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
Products info
Fiber count |
1 |
Fiber Mode |
9/125μm |
Connector Type1 |
SC/APC |
Connector Type2 |
LC/APC |
Fiber Mode |
9/125μm |
Cable OD |
2.0x3.0mm |
Wavelength |
1310/1550nm |
Jacket Material |
PVC/LSZH |
Insertion loss |
≤0.3dB |
Interchangeability |
≤0.2dB |
Return loss |
APC≥60dB |
Vibration |
≤0.2dB |
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Geometric Specification (only for 3D interferometer tested)
Test items |
Connectors |
PC End-face |
APC End-face |
Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
LC/MU |
7~25 mm |
5~15 mm |
|
Apex Offset |
≤50 um |
||
Fiber Spherical Height |
+/- 50 nm |
||
Angular Offset |
------ |
8°± 0.2° |
|
Environmental Performance (Max. Insertion Loss change)
High temperature |
+85°C168 hours |
<0.2 |
Temperature Cycle |
-40-+75°C, 21 Cycles 168 hours |
<0.2 |
Humidity Aging |
+75°C, 95%R.H,168 hours |
<0.2 |
Humidity/Condensation Cycling |
-10°C-+65°C, 90%~100%RH, 14 cycles 168 hours |
<0.2 |
Mechanical Performance ( Max. Insertion Loss change)
Vibration |
10-55Hz, 1.5mm(p-p) |
<0.2 |
Flex |
0.9kg,-90o~+90o repeat for 100 cycles |
<0.2 |
Torsion |
1.35kg,90o~+90o ,10times |
<0.2 |
Withstand tensile |
90N,10min |
<0.2 |
Drop |
H=1.5M,Total of 8 drops |
<0.2 |
Exchangeability |
Randomly |
<0.2 |
Durability |
500 times |
<0.2 |
CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Physical Information
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
Application: Last 10m of FTTH. Offer optical signal to ONU or Optical Modem.
