Connector
Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.

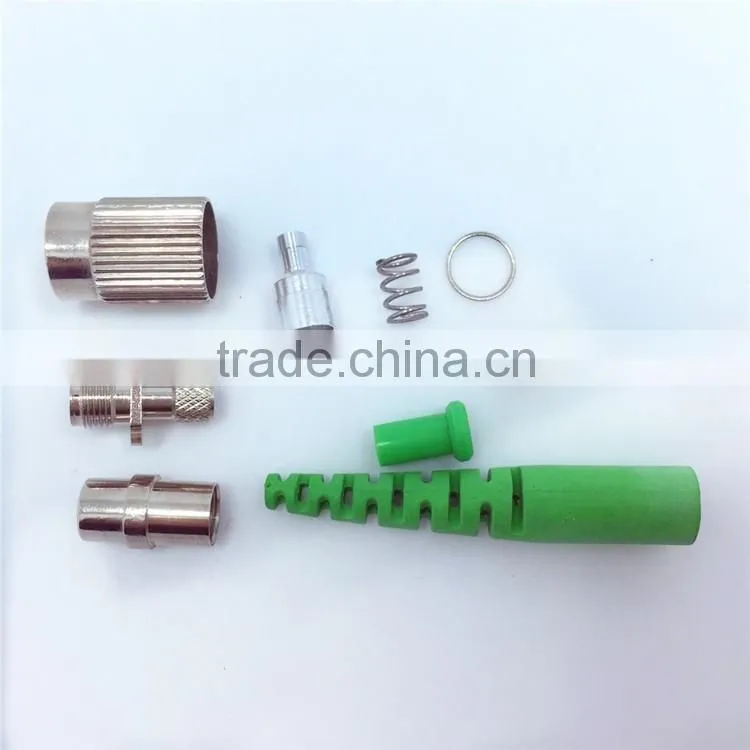

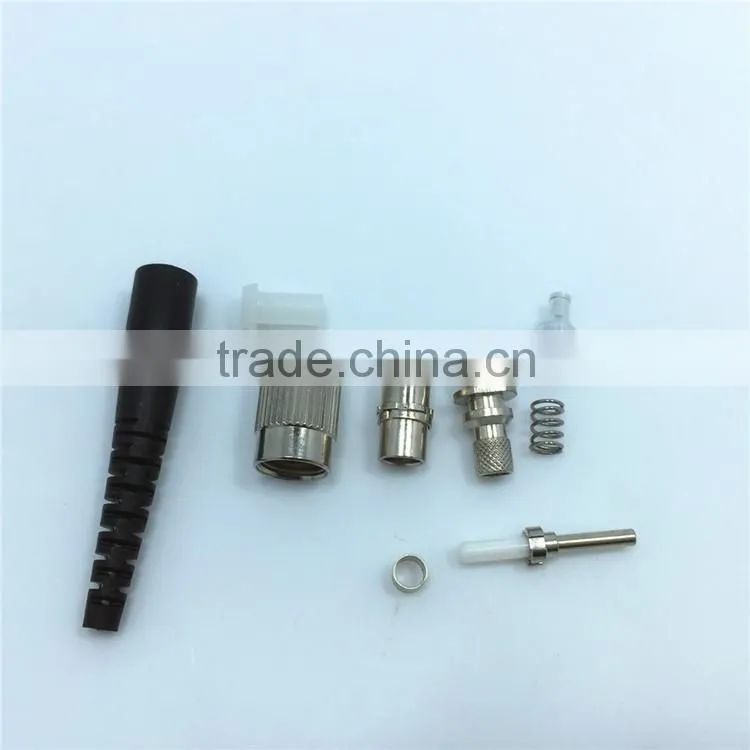

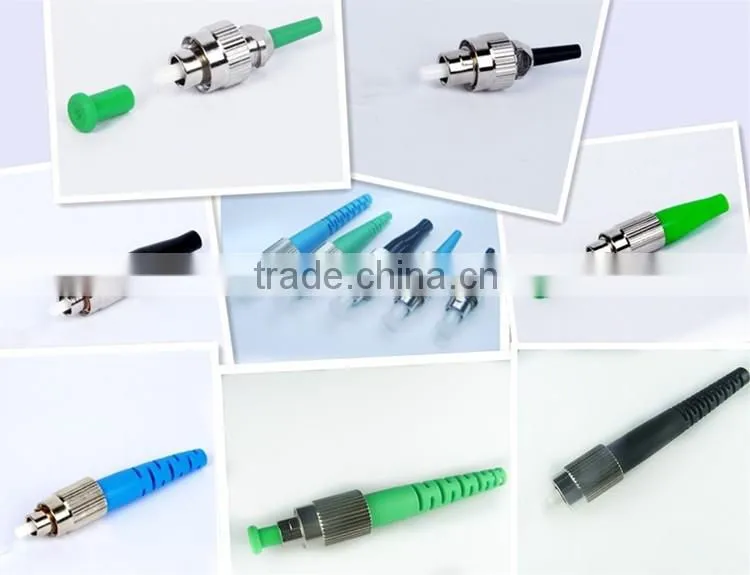

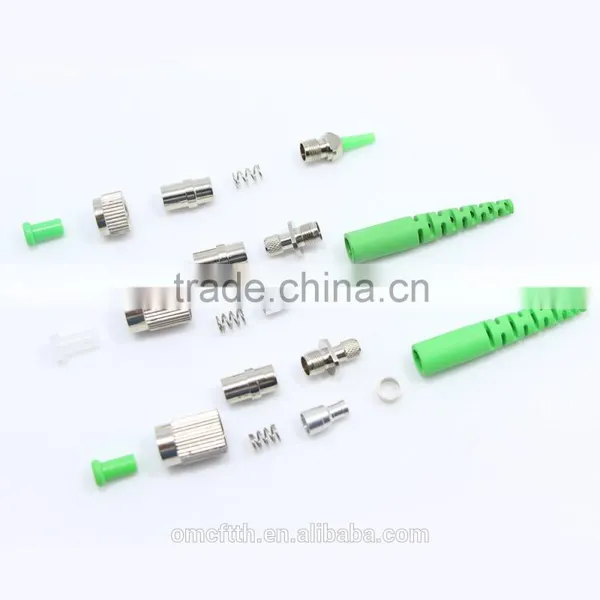

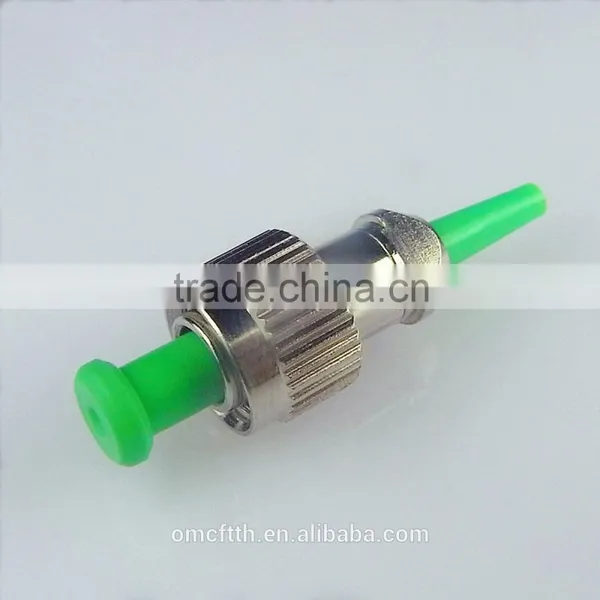

The FC was the first optical fiber connector to use a ceramic ferrule, but unlike the plastic bodied SC and LC, it utilizes a round screw-type fitment made from nickel-plated or stainless steel. The connector end face relies on an alignment key for correct insertion and is then tightened into the adaptor/jack using a threaded collet. Despite the additional complexity both in manufacturing and installation, it’s still the connector of choice for precise measuring equipment such as OTDRs.
Initially intended for datacoms and telecoms applications, its use has reduced since the introduction of the SC and LC. These deliver similar performance to the FC but both have less expensive components and are quicker to connect. However, the screw-on collet of the FC does make it particularly effective in high vibration environments, ensuring that the spring-loaded ferrule is firmly mated.
OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.
Industrial Standard:
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
Environmental Performance:
Operating Environment: -40°C ~ + 80°C
Meets UL94-V0 Flammability Requirements
ROHS compliant
Optical Performance:
Meets Telcordia GR-326-Core issue
IL(Typical):SM<0.3dB; MM <0.3dB:
RL(Typical):SM >50dB; MM >35dB:
Mechanical Performance:
Connection Durability: 500 Matings cycles
Connector Repeatability: MM<0.2dB; SM <0.1dB
Packaging
one piece in a plastic bag.
Several bags in a larger plastic bag.
hundreds of bags in a cartoon of 54*35*39cm.
other size carton is available too.
Shipping
goods shipped by air or by land transporation.
1,Free samples can be provided.
2,OEM service
3,Nice payment terms.
4,high quality products
5,Competitive price,
6,fast delivery
7,New product priority sell
8,Optical Network Project Consultant.
9,New Products development for customer.
10,Cost-effective logistic solution can be chosen for you.
11,The specific sales person to serve our customers so that you can feel easy and efficient.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
1,Can we get free samples?
Yes. Free samples can be offered for your test. You only need to pay the freight.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3,How will we do if we are not familiar with the optical products?
Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5,What is your quality control.
(1).source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
(2).quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
(3)optical test. Our products are strictly tested in accordance with IEC and ITU standard.
(4)we have 30% spot test by Quality Assurance Department after the products finished.
