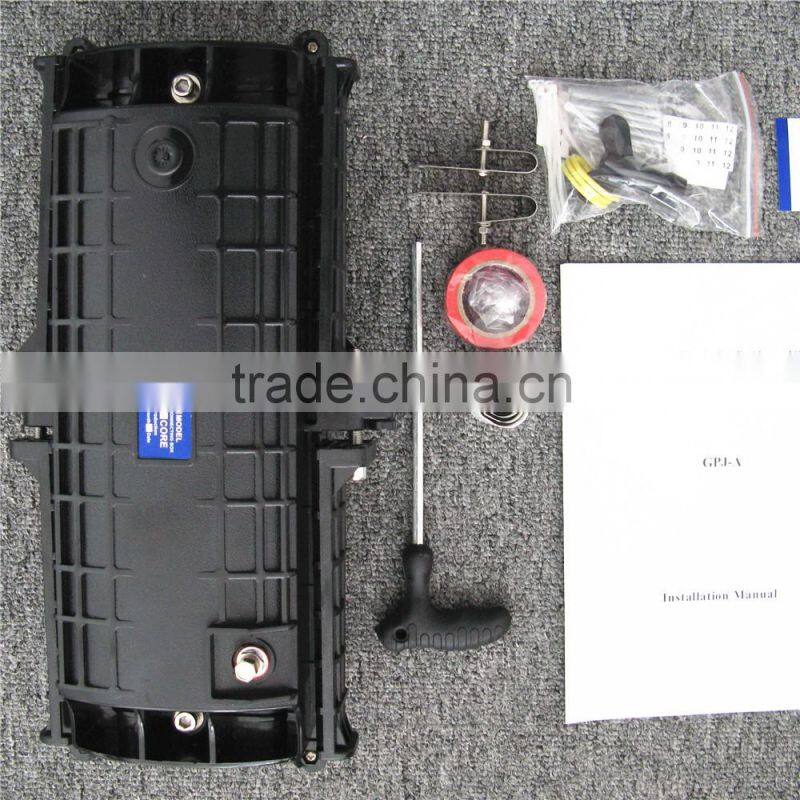

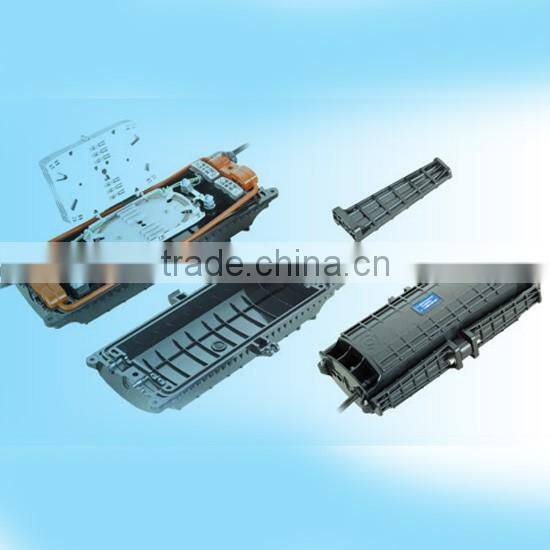

H001 Inline Fiber Optical Splice Closure

Outside dimension (LxWxH)

390×210×120

Weight (excluding outside box)

1900g-2100g

Number of inlet/outlet ports

6 ports

Diameter of fiber cable

Φ7—Φ16(mm)

Capacity of FOSC

Bunchy: 6—96(Cores)

Ribbon: max. 144 (Cores)

No.

Name of components

Quantity

Usage

Remarks

1

Housing

1 set

Protecting fiber cable splices in whole

Internal diameter:

285x110 (mm)

2

Insert plate

2 pairs

Fixing the housing

175x56x30(mm)

3

Fiber optic splice tray

(FOST)

Max. 4 trays (bunchy)

Max. 4 trays (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy: 6,8,12,16,24(cores) Ribbon: 3 (pieces)

4

Foundation

1 set

Fixing fiber cable, reinforced core and FOST

5

Seal fitting

1 set

Sealing between FOSC cover and FOSC bottom

6

Port plug

6 pieces

Sealing empty ports

7

Earthing deriving device

1 set

Deriving metallic parts of fiber cables in FOSC for earthing connection

Configuration as per requirement

No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve

Protecting fiber splices

Configuration as per capacity

2

Nylon tie

Fixing fiber with protective coat

Configuration as per capacity

3

Insulation tape

1 roll

Enlarging diameter of fiber  cable for easy fixing

4

Seal tape

1 roll

Enlarging diameter of fiber  cable which fits in with seal fitting

Configuration as per specification

5

Hanging hook

1 set

For aerial use

6

Earthing wire

1 piece

Putting through between earthing devices

To put through as per actual requirement

7

Abrasive cloth

1 piece

Scratching fiber cable

8

Labeling paper

1 piece

Labeling fiber

9

Special wrench

3 pieces

Fixing bolts, tightening nut of reinforced core

10

Measuring paper

1 piece

To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape

To measure perimeter with the corresponding measuring paper

11

Buffer tube

To be decided by customers

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

12

Desiccant

1 bag

Put into FOSC before sealing for desiccating air.

Name of materials

Usage

Scotch tape

Labeling, temporarily fixing

Ethyl alcohol

Cleaning

Gauze

Cleaning

Name of tools

Usage

Fiber cutter

Cutting off fibers

Fiber stripper

Strip off protective coat of fiber cable

Combo tools

Assembling FOSC

Name of tools

Usage and specification

Band tape

Measuring fiber cable

Pipe cutter

Cutting fiber cable

Electrical cutter

Take off protective coat of fiber cable

Combination pliers

Cutting off reinforced core

Screwdriver

Crossing/Paralleling screwdriver

Scissor

Waterproof cover

Waterproof, dustproof

Metal wrench

Tightening nut of reinforced core

Name of instruments

Usage and specification

Fusion Splicing Machine

Fiber splicing

OT DR

Splicing testing

Provisional splicing tools

Provisional testing
