soft rubber material crushing machine/pp granules making machine/granulating machine
I. Purpose:
We developed CSJ Miller to solve the front-in process of different kinds of material.
The machine is suitable for soft rubber, plastics,like EVA MAT, eva sole, eva mat
chemical and pharmaceutical materials.
II. Structure and principle
The machine, adopting excellent hard alloy steel or wearable steel as its blade,
is durable and suitable for the coarse comminution of different types of hard material.
With the rotary blade and fixed blade, the materials are cut into granules falling on the sieve.
By adjusting the sieve, we can control the size of granules.
The machine is equipped with cooling water system, so as to control the comminution
temperature and guarantee the granule quality.
Technical data:
| Model | HG2230 | HG2540 | HG2650 | HG3060 | HG3670 | HG4080 |
| Motor power (kw) | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
| Motor optional (kw) | 7.5 | 11 | 7.5/15 | 11/18.5 | 18.5/30 | 22/37 |
| Rotating speed (rpm) | 600 | 500 | 500 | 480 | 480 | 480 |
| Knives material | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi |
| Claw moving knives (pcs) | 9 | 12 | 15 | 18 | 21 | 24 |
| Optional Flat knives (pcs) | 3 | 6 | 6 | |||
| Fixed knives (pcs) | 2 | 4 | 4 | 4 | 4 | 6 |
| Rotating Dia. (mm) | 230 | 250 | 260 | 300 | 360 | 400 |
| Crushing chamber (mm*mm) | 230*300 | 250*400 | 260*500 | 300*600 | 360*700 | 400*800 |
| Screen Hole Dia.-standard (mm) | 8 | 8 | 8 | 8 | 8 | 8 |
| Screen Hole Dia.-optional (mm) | 4,6,10,12,14,18,25 | |||||
| Hardened Screen | o | o | o | o | o | a |
| Manual Bin | s | s | s | s | s | b |
| Blower | o | o | o | o | o | a |
| Dust Separator | o | o | o | o | o | a |
| Noise Enclosed Cover | o | o | o | o | o | a |
| Crushing Capacity (kg/hr) | ≤200 | ≤300 | ≤450 | ≤550 | ≤650 | ≤900 |
| Sound pressure level (dB) | 75-90 | 75-95 | ||||
| Dimensions (L*W*H) (mm) | 930×680×1120 | 1150×820×1280 | 1200×880×1400 | 1230×1020×1520 | 1460×1200×1700 | 1500×1350×2100 |
| Weight (kg) | 400 | 550 | 850 | 1000 | 1200 | 2000 |
Notes: 1) “s”standard, “o”optional | ||||||

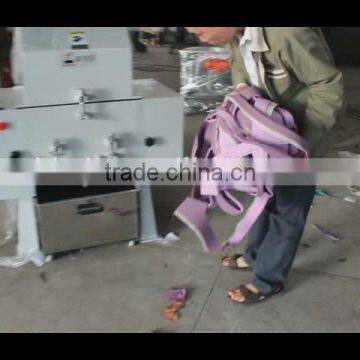

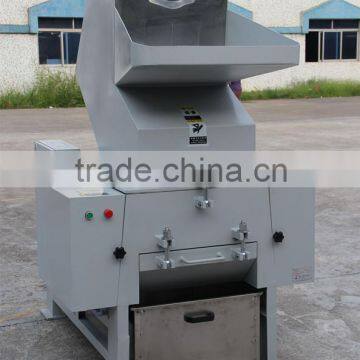

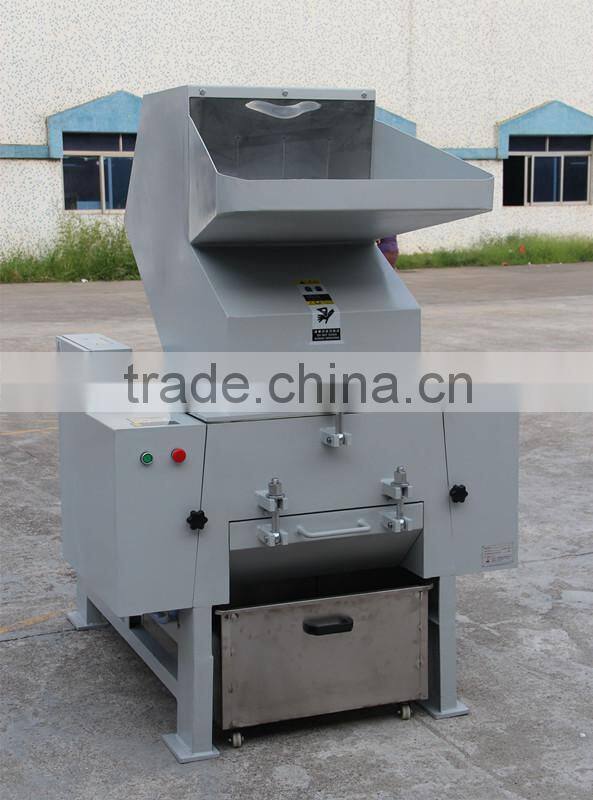

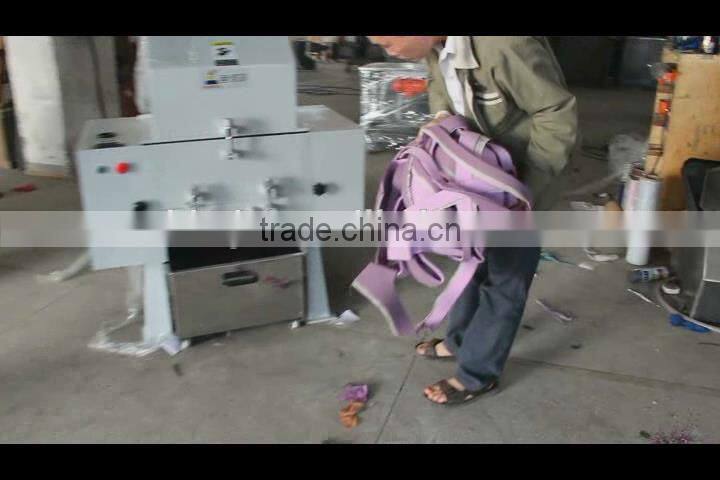

Detailed pictures

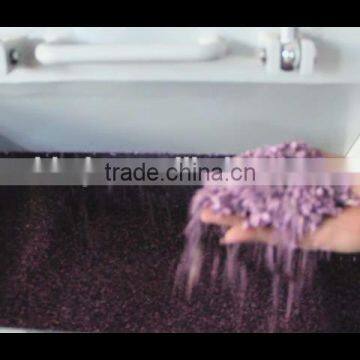

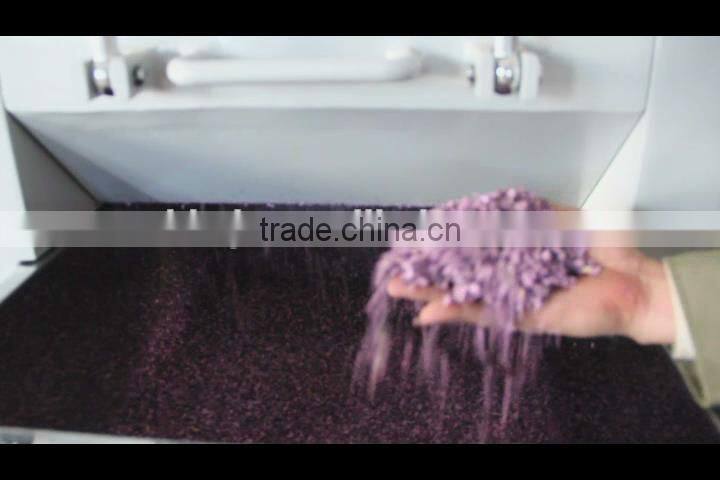

net size ,ajust according to your request
scrap eva
For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
n
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
.
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
