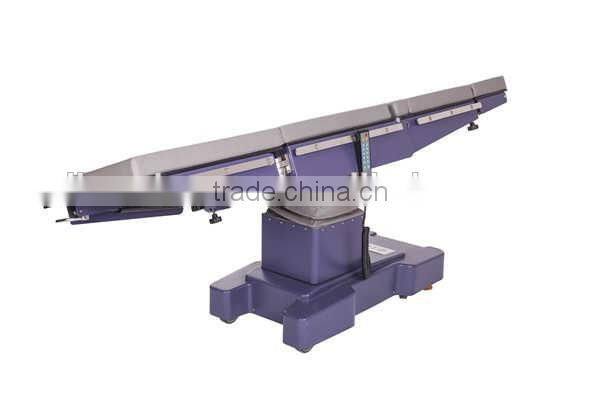

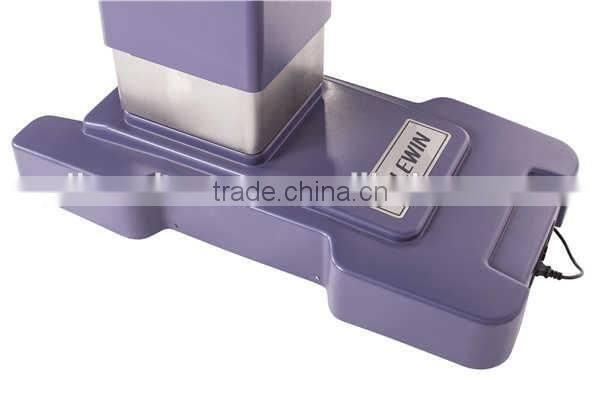

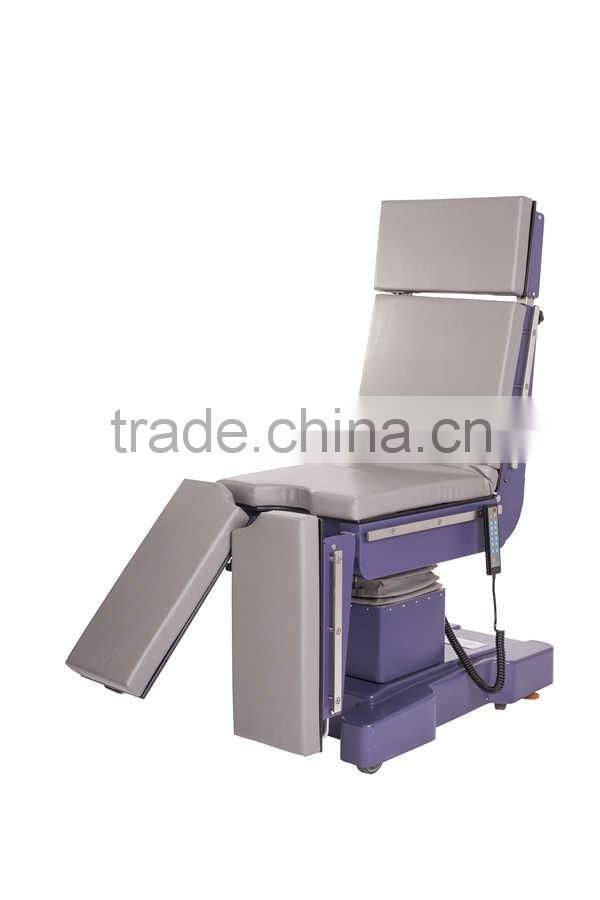

Built-in elevator kidney-bridge Operating Table

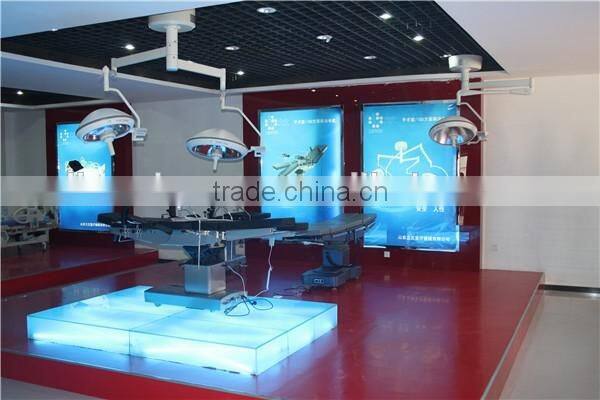

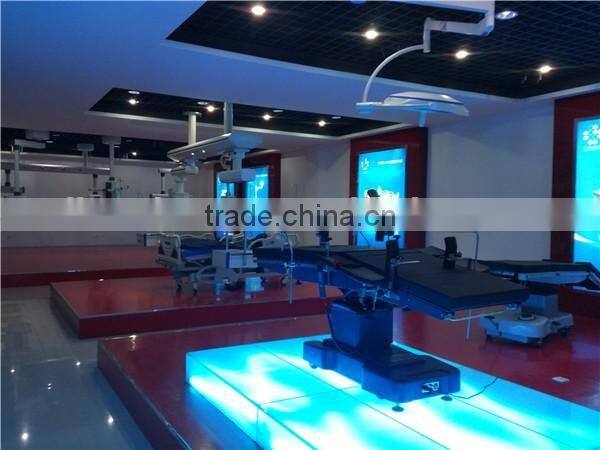

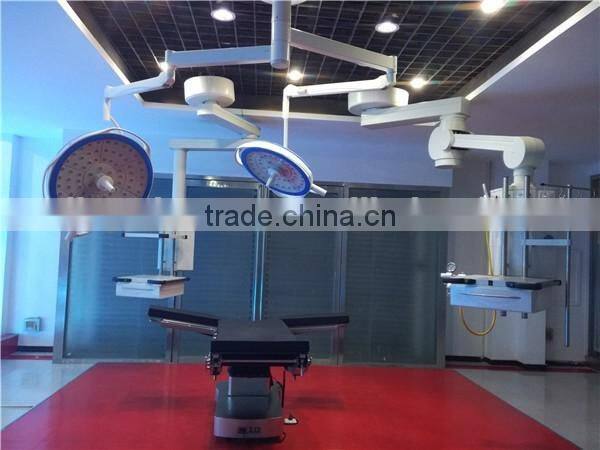

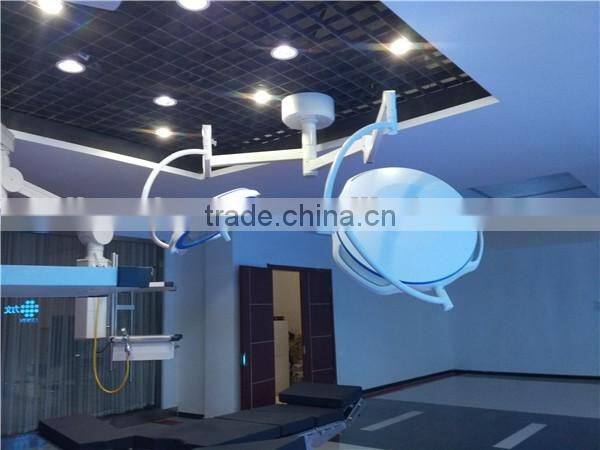

LEWIN Exhibition Room

Electric Hydraulic Operating Table

  Features

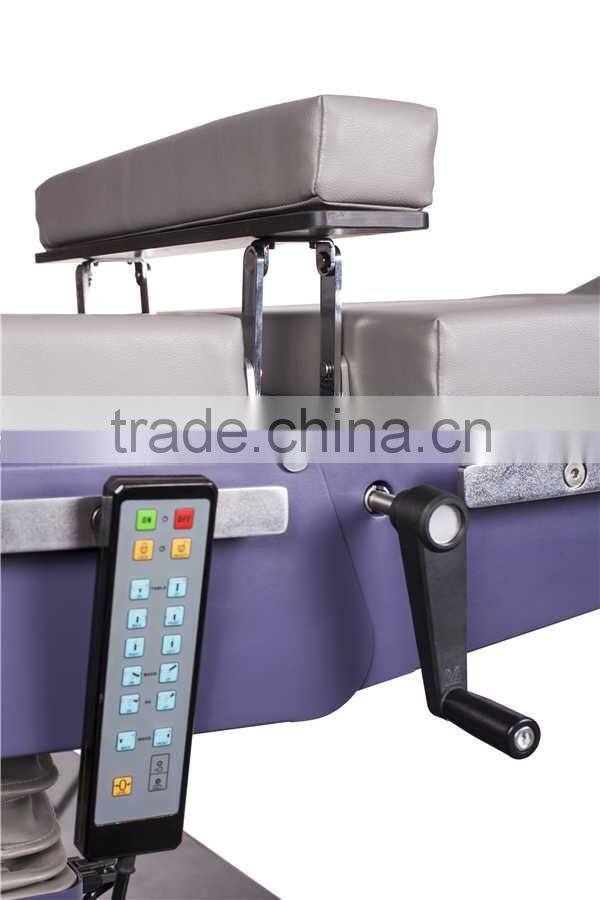

1.Easy to use remote controller; if no any operation within 1 minute, the controller will be locked automatically to avoid mis-operation.

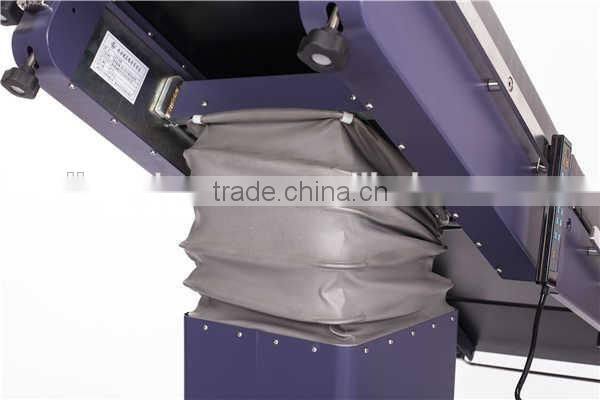

2.A silent, sturdy and grease-free electric hydraulic positioning system allows for multiple patients positioning.

3.The table adopts transmission X-ray materials for X-ray and C-arm use.

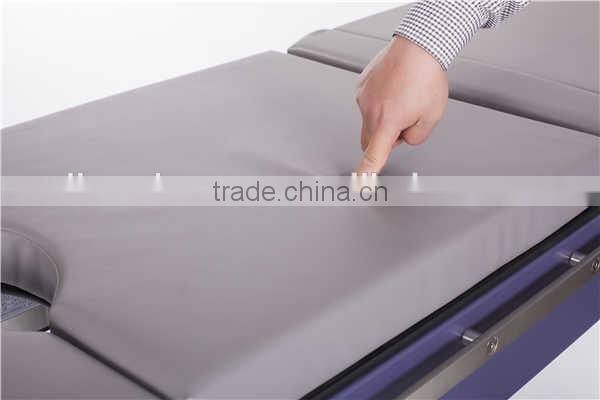

4.Four sections include head, back, seat and leg section, all sections applicable for X-ray use, the rest section also has X-ray cassette layer under each section.

5.Built-in elevator kidney-bridge, which has no negative effect on X-ray radiolucency work, supports the kidney and gallbladder surgery efficiently.

6.Electric hydraulic brake system is stable

7.Compatible with many accessories.

  Specification

Length                      2130 mm

Width                       520 mm

Elevation (up/down)    700 ~ 1000(mm)

Forward/Backward:      +30°~ -30°

Lateral Tilt:                  +20°~ -20°

Head Plate:                  +30°~ -90°

Leg Plate:                   +90°~ -180°

Back Plate:                  +75°~ -15°

Parallel movement:      300mm

Kidney elevator           ≥120mm

  Accessories
Square Clamp I:          5pcs

Square Clamp II:         2pcs

Arm Rest:              2pcs

Body Supporter          2pcs

Chest & Waist Supporter:  2pcs

Leg-Crutches:           2pcs

Shoulder Supporter:      2pcs

Anesthesia screen frame:   1pc

Body bind belt:           1pc
