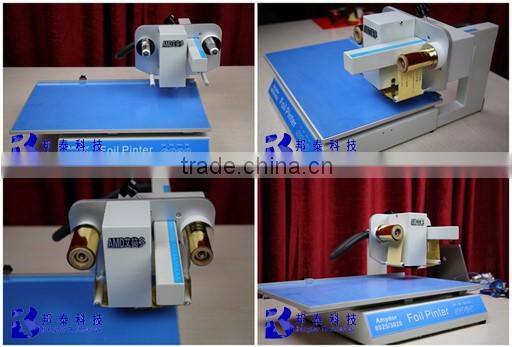

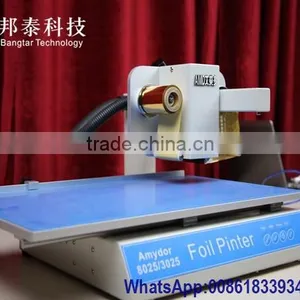

BT-363 Table foil press:
Application: Graphic hardcover tender books, Certificates covers, Magazines, press books
, cards, Signs, Labels, Tags, Couplets, Invitation cards, Business
cards, Red envelops, Personalized greeting cards, Non-woven shopping
bags, Gift boxes/bags, Menu,Calendars, Notebooks, Wallets, belts .etc.
Print media: leather, PVC, PU, PET, Vinyl, Adhensive Stickers, Cardboard, Plastic board, Transparent film, Label, Coated fabric, Ribbon, photo film.etc
Features:
1. The most newly design, completely replaced the traditional foil press machine
2. No need to make dies & plates, cost- efficient and time-saving .
3. SD card transmission, completely offline, can do the foil press anytime anywhere .
4. No requirement for the operation system,no need to install drive, can be used universally all over the word
5. High resolution 300*600 dpi, the artworks are very clear.
6. Figure small and save space, light weight and convenient to move .
7. Maximum thickness admit is up to 50mm, the usage range is very wide
8. Software control,can print any complex pattern, words, photos and so on .
9. Adopted Japan original ROHM print head , long printing span(150000M)
10. Can foil press any artworks and words on unsmooth cardboard and leather .
11. The foil press speed can be adjusted according to the different materials and processing spots .
12. Simple to operate and easy to understand .
13. Low power and electricity saving
14. Multi- color are available ,such as gold , sliver and the other full colors.
Technical Parameter:
Model: BT-363
Transmission mode: SD card (Competely offline)
Max printing length: 250mm
Max printing width: 57mm
Max thickness admits: 50mm
Max feeding width : 450mm
Speed : 20-50mm/s
Print head span: 150000m
Operation System: No Requirements
Resolution : 300*600 dpi
Power : 150W
Power source specification: AC 110-240V 50/60HZ
Machine size: 530x640x380 mm
Packing size: 680*630*490mm
QW/N.W : 35KG/24KG
Mediumtypes: Paper,PVC,PU,leather,adhensivepaper,cardboard,fabric,plastic.ribbon,film,vinyl,PET,etc.
Printed Samples:
1. We provide you the picture / printing samples if you need.
2. We provide you the video of this printer if you need.
3. We print your material and make video for you if you shipped us your printing materials.(But the shipping cost is on your own )
4. We provide one year warranty for the whole machine .
5. replacement of accessories is free within one year
6. provide remote assistance
7. the machine is provided with detailed operation video
Henan Bangtai Electronics Technology Co., Ltd. is a trading company of packaging machines, and hot stamping, thermal transferring, coding and marking related products with well-equipped testing equipment and strong technical force. We are located in Zhengzhou city and have convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have attained CE, ISO certificates.
