High Speed Ink Roll Coding Machine

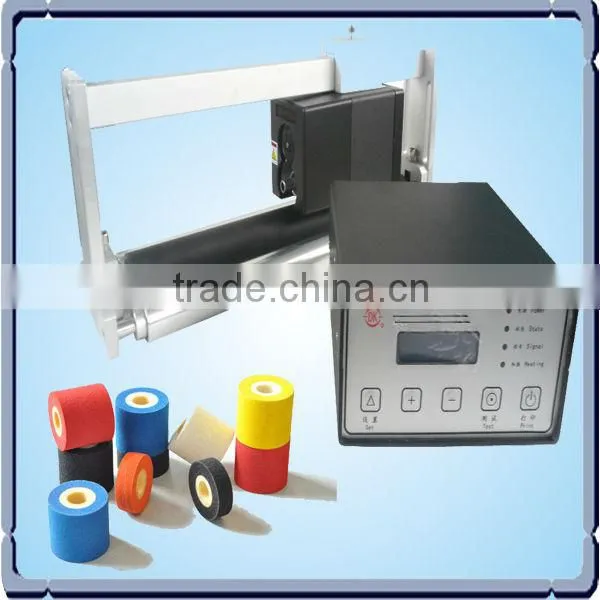

High Speed Ink Roll Coding Machine photo-1
US$ 300 - 520 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Application:
Any material
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Application Any material
Place of Origin Henan, China
Brand Name Bangtai
Model Number BT-1300A
Packaging Material Wood
Packaging Type Case
Driven Type Electric
Voltage AC100V-AC230
Power 140w
Dimension(L*W*H) 180mm*190mm*96mm (L*W*H)
Weight 6kg

INK ROLL CODER BT-1300A



Driven by the inside motor, BT-1300A adopts our companies own friction technology to guarantee the high legible printing. With stable quality, it can automatically trace the packing speed to make sure the coherence of the printing position.:

Printing Lines T-type (axial) up to 13lines, max. 15characters per line
R-type (radial) up to 8lines, max. 13characters per line
Font Size T-type 1.5 mm,2.0 mm,2.5 mm
R-type 3.0mm ,3.5 mm, 4.5 mm
(special letters and font can be custom-made)
Cycle Rate up to 1200 prints/ minute
Surface Speed up to 70 meters/ minute
Pouch Length ≥38mm(4-up printer)
≥75mm(2-up printer)
Type of Print Head Right-hand (Clockwise)
Left-hand (Counter-clockwise)
Control Box LCD display
Ink Roll Required Φ36*32 mm, Φ36*40 mm
Electrical AC100V—AC230 V,50/60 Hz
Power 140W,2A Fuse
Environmental Operating Temperature 4°C-38°C
Relative Humidity 10%-95%
Weight Print Head 4kg Control Box 2kg
Dimensions Print Head : 94mm*100mm*166mm (L*W*H)
Control Box : 180mm*190mm*96mm (L*W*H)



Details:

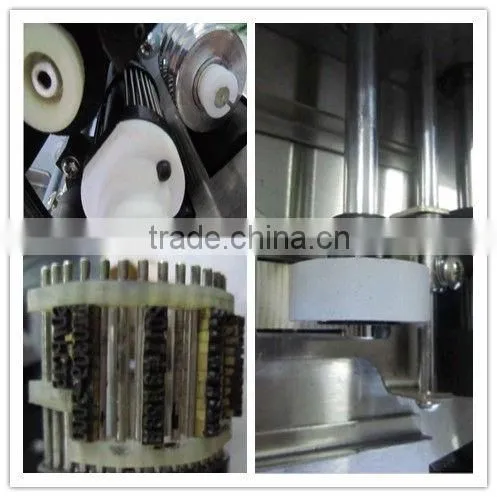

High speed ink roll coding machine

High speed ink roll coding machine
