Hot Ink Roll Coder

Hot Ink Roll Coder thumbnail-1
Hot Ink Roll Coder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
semi-automation
Application:
printing date and lot number on such materials as paper box, label, th, Food
Contact Supplier Request Quote Chat Now
Henan Bangtai Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade semi-automation
Application printing date and lot number on such materials as paper box, label, th, Food
Place of Origin Henan, China
Brand Name bangtar
Model Number BT-380F
Packaging Material Paper
Packaging Type Other, Film, bags
Driven Type Electric
Voltage AC 220/50 110/60
Power 180W, 180w
Dimension(L*W*H) 440*345*300(mm)
Weight 23KG

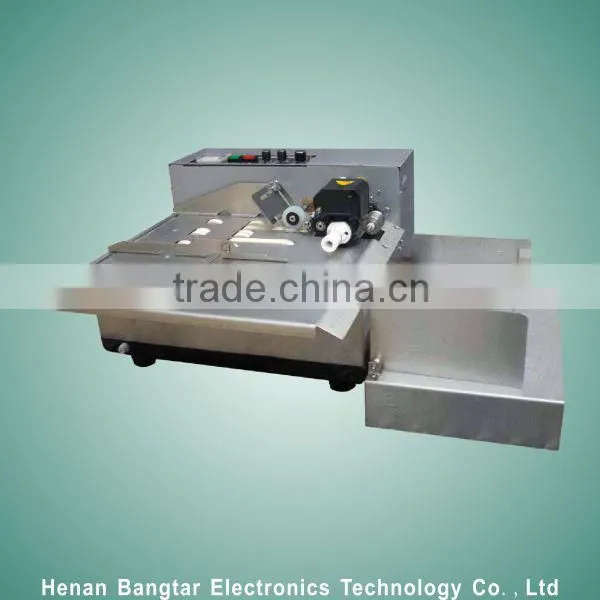

Hot ink roll coder



Description:

BT-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.

Features:

1. Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.



2. The printing roller equipped to the machine can be used for both R arrange and T arrange of types. For types in T arrange, the machine can print 1-10 lines with 1-10 characters in each line. For types in R arrange, the machine can print 1-8 lines with 1-8 characters in each line. Types in sizes of 2mm, 2.5mm, 3mm are available as option.



3. Work efficiently and automatically at high speed, up to 30pcs per minute.



4.Electric motor and synchronous strap of famous factory   are adopted with higher stability.



5.Photoelectrical control,automatic counting, preset printing folio and position.



6.Fitted with dual-purpose word-printing wheel applicable to R pattern and T model word.



7.Beautiful and durable high class stainless outer casing conforms to hygeian requirements.



Scope of Application

*lt is applicable to printing date and lot number on such materials as paper box, label, thin paperboard and film.



Parameters:



BT-380F

BT-380F/W

Voltage(V/Hz)

AC 220/50 110/60

Power(W)

180

Solid Ink Roller(mm)

35×32 35×16

Printing Speed(pcs(/min)

≤300

Object Size(mm)

L:50-500 W:30-190

L:50-550 W:30-300

Max. Printing Line

T Arrange(10.5PT):11Lines (Max.10 characters/line) R Arrange(10.5PT):8Lines(Max.8 characters/line)

Printing Size(mm)

Within 60-250

Type Size(mm)

2×1.5( 8PT ) 2.5×2(9PT) 3×3(10.5PT) 4×2.5(18PT)

External Dimensions (L×W×H)(mm)

440×345×300

440×465×300

Net Weight(Kg)

23

26
