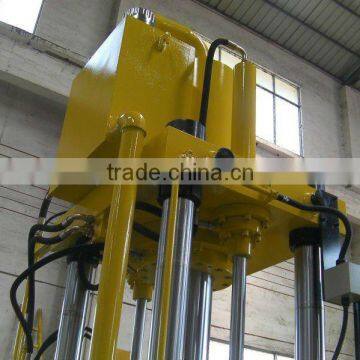

Y28-75 Four-column Deep Drawing Hydraulic Oil Press Machine
1.Suitable for:
Four-column Deep Drawing Hydraulic Oil Press Machine is used for aluminum products and stainless steel products,which is particularly used for drawing aluminum sheet,pressing and forming aluminum products,drawing stainless steel sheet,as well as pressing and forming stainless steel products.
2.Function:
A.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
B.Safety protection device should be equipped to provide security guarantee for the operators
C.Auto count function should be equiped
D.The deep drawing force and blank holder force are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y28-75 |
Nominal Capacity | KN | 500 |
Main Cylinder Pressure | Mpa | 20 |
Return Capacity | KN | 43 |
Blankholder Cylinder Capacity | KN | 250 |
Blankholder Cylinder Max. Pressure | Mpa | 20 |
Upper Ejector Capacity | KN | 39 |
Ram Stroke | MM | 440 |
Blankholder Stroke | MM | 220 |
Ejection Stroke | MM | 160 |
Downing Speed | MM/S | 380 |
Pressing Speed | MM/S | 14~30 |
Return Speed | MM/S | 270 |
Motor Power | KW | 7.5 |
Working table size | MM | 465(L) x 500(W) |
Overall Size | MM | 1450(L) x 1070(W) x 3360(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
