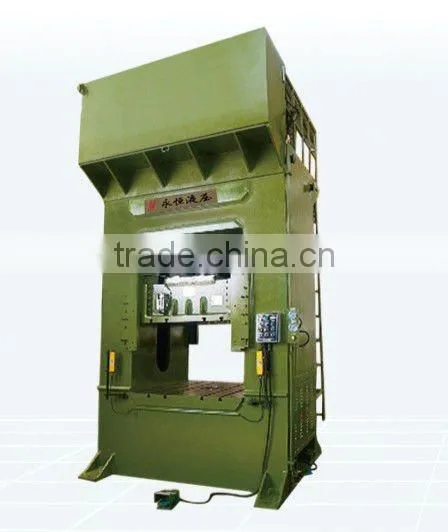

Hydraulic Cold Forging Machine For Aluminum Parts
1.Suitable for:
Hydraulic Cold Forging Machine For Aluminum Parts is suitable for the process of metal parts,praticularly in the cold extrusion and forging process of aluminum and aluminum alloy products.
2.Main Feature:
1.45 degree or 90 degree dctat guide,precision is reliable
2.Constant-power variable-capacity pump is used for supplying oil
3.Hole-arrangement type photo-electric safety device is adopted
4.Good air-proof performance
5.Good performance,steady and reliable.
3.Main technical specification:
DESCRIPTION | UNIT | YDK-A300 |
Nominal Capacity | KN | 3000 |
Max. Work Pressure | MPA | 24 |
Max. Stroke | MM | 350 |
Height Of Max. Opening | MM | 800 |
Height From Worktable To Floor | MM | 450 |
Working Table Size | MM | 650(L) x 650(W) |
Downing Speed | MM/S | 270 |
Pressing Speed | MM/S | 9-14 |
Return Speed | MM/S | ≥250 |
Size Of Machine | MM | 1650(L) x 1700(W) x 2800(H) |
Motor Power | KW | 30 |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
