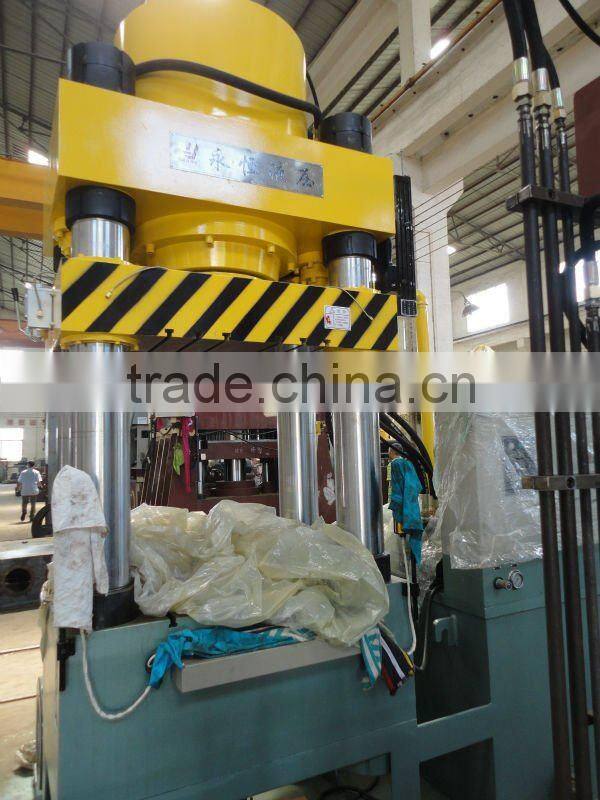

Four Pillars Aluminum Alloy products Pressing Machine
1.Suitable for:
Four Pillars Aluminum Alloy products Pressing Machine is suitable for cold extrutsion of metal parts,particularly in the cold extrusion and forging process of aluminum alloy products.
2.Main Feature:
1.Adopts four-column structure,electrical system adopts PLC to control with reliable movemont,safe and convenient operation.
2.Operation mode: inching adjustment and semi-auto work;high speed under no load,sloe mold closing and extruding function can be realized.
3.High work efficiency and low energy consumption.
4.Good air-proof performance:The products of NOK company and sealtech company are adopted for main sealing elements.
5.Good performance,steady and reliable.
3.Main technical specification:
DESCRIPTION | UNIT | Y64-1000 |
Nominal Capacity | KN | 10000 |
Max. Work Pressure | MPA | 26 |
Max. Return Capacity Of Master Cylinder | KN | 370 |
Max. Stroke Of Movable Crossbeam | MM | 500 |
Height Of Max. Opening | MM | 1000 |
Height From Worktable To Floor | MM | 1000 |
Nominal Capacity Ejection Cylinder | KN | 400 |
Stroke Of Ejection Cylinder | MM | 200 |
Working Table Size | MM | 1200(L) x 1300(W) |
Downing Speed | MM/S | 157 |
Pressing Speed | MM/S | 6.8-10 |
Return Speed | MM/S | ≥200 |
Motor Power | KW | 75 |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
