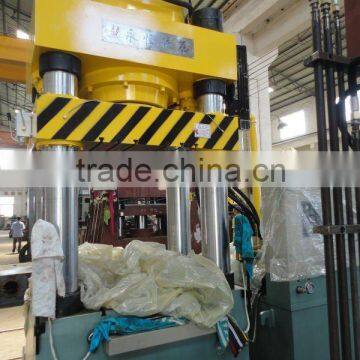

Y64-600 Four-column Cold Extrusion Hydraulic Press Machine
1.Suitable for:
Y64-600 Four-column Cold Extrusion Hydraulic Press Machine is suitable for processing metal parts,particularly in the cold extrusion and forging process of aluminum and aluminum alloy products.This series machine type adopts four-column sturcture,electrical system adopts PLC to control with reliable movement,safe and conbenient operation.
2.Main Feature:
1.Application: cold extrutsion of metal parts,particularly in the cold extrusion and forging process of aluminum alloy products.
2.Adopts four-column structure,electrical system adopts PLC to control with reliable movemont,safe and convenient operation.
3.Operation mode: inching adjustment and semi-auto work;high speed under no load,sloe mold closing and extruding function can be realized.
4.High work efficiency and low energy consumption.
3.Main technical specification:
DESCRIPTION | UNIT | Y64-600 |
Nominal Capacity | KN | 6000 |
Max. Work Pressure | MPA | 25.5 |
Max. Stroke Of Movable Crossbeam | MM | 350 |
Height Of Max. Opening | MM | 800 |
Height From Worktable To Floor | MM | 1165 |
Nominal Capacity Ejection Cylinder | KN | 300 |
Stroke Of Ejection Cylinder | MM | 200 |
Working Table Size | MM | 770(L) x 780(W) |
Downing Speed | MM/S | 200 |
Pressing Speed | MM/S | 8-16 |
Return Speed | MM/S | ≥250 |
Motor Power | KW | 55 |
1.The special specifications can be custom made separately
2.Engineer is available to service oversea
