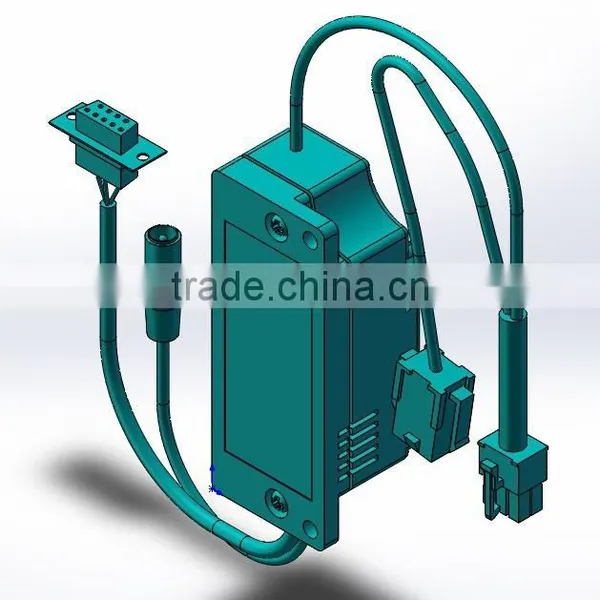

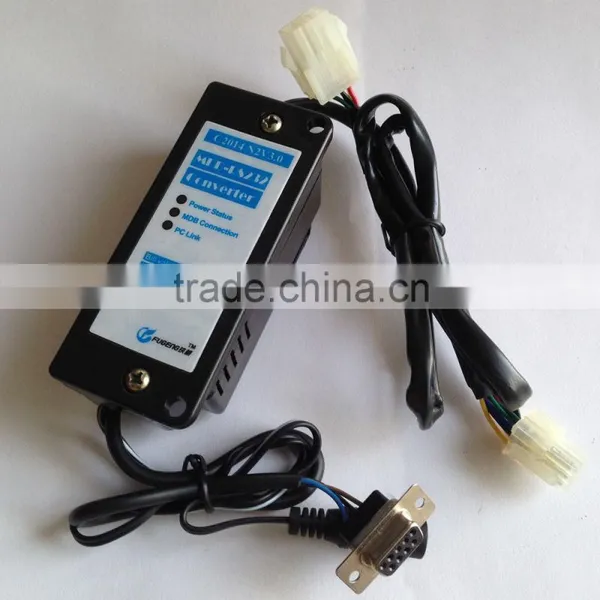

Model: MDB type bill acceptor and coin acceptor to computer
Working with MDB type bill acceptor and coin validator directly

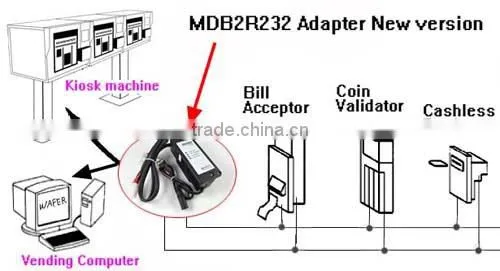

This adatper board can connect the bill acceptor and coin acceptor and MDB cashless device together to computer
Only working for MDB type coin acceptor and bill acceptor
Best Design for game machine,vending machine,kiosk machine .
Power input:DC24V-36V
Interface : USB to computer,mdb interface to bill acceptor and coin acceptor
A simple yet powerful way to integrate bill acceptor, coin acceptors, coin dispensers and cashless devices into PC based vending applications. The vending industry standard NAMA Multi-Drop Bus (MDB) may now be interfaced to a PC using the MDB2PC. The MDB2PC allows Coin Acceptance, Change Dispensing, credit card reader and bill validation all controlled by the PC.Conforms to all NAMA MDB specification and is compatible with any MDB compliant vending device. Hardware interface comes with cables,user's guide and user's protocal
This Interface Unit (IU) is designed to convert the MDB Bill Acceptor (BA) and MDB Coin Changer (CC) protocol to RS-232 serial protocol. The IU functions as a slave to a master control system. The master may be any control system that supports RS-232 serial communication, for example a PC.
If you need to connect the Pulse bill acceptor and coin acceptor to computer,please go to order the WF-702 type adapter board
