1. GSM Remote Control Relay
2. 7 channel outputs
3. Quad Band
4. Seven Max 230V 10A relay output stand
5. APP Control
Applications:
GSM home automation plc
GSM SMS Remote Controller;
Automation Control system;
GSM Alarm system
GSM timer switch
GSM home automation and security system 2016 Version

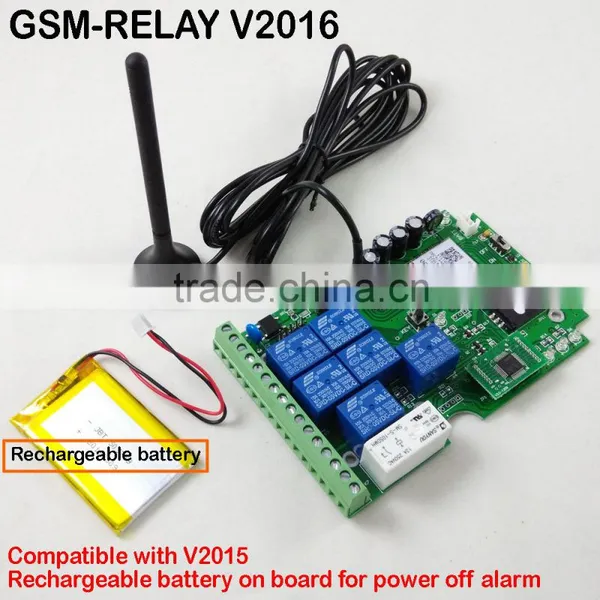

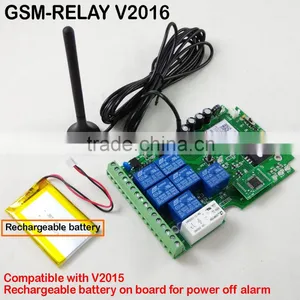

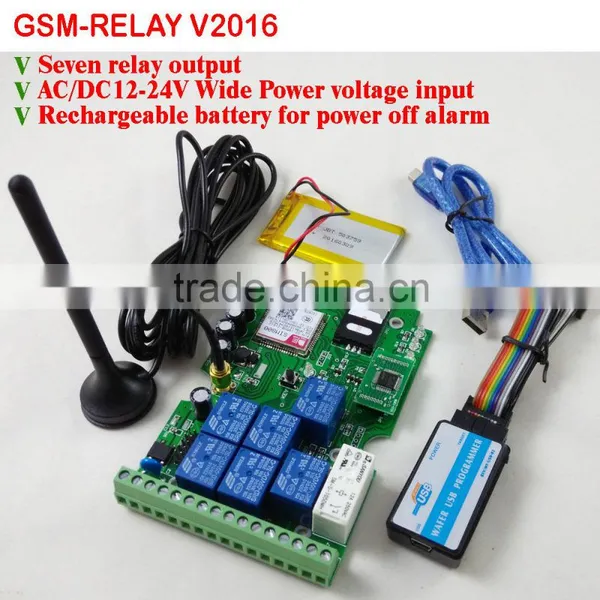

The GSM-RELAY V2016 is a wireless gsm SMS remote controller that connects to the GSM cell phone network.
Big power output channel ,each channel upto to 2000w switching power
Model: GSM-RELAY
Power input: AC/DC9~24V
Product description:

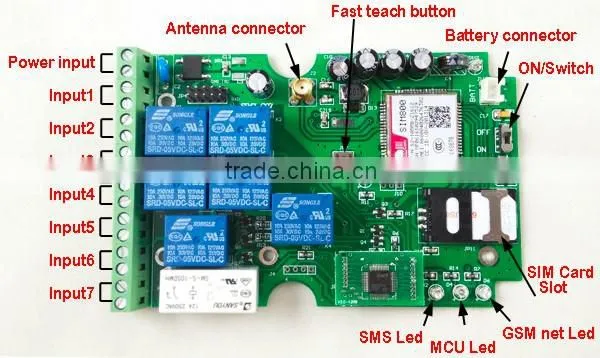

The GSM-RELAY is a wireless gsm sms controller switch that connects to the GSM cell phone network.
It has seven independent relay switches, and the NO.1 Relay switch is activated by calling its cell phone number, it will reject the call without answering and switch on the device connected to it,then there are no call costs incurred when dialling the unit, it will recognise an authorised telephone number calling it and reject the call without answering.
It has other 6 independent relay switches which can be switched on or off by sending the GSM-RELAY an sms text message.
GSM remote switch control box
Specifications:
- Real-time & interactive remote control
- 7 channels 250V/10A 50Hz Relay contacts
- Works with any phone calling and SMS command
- Operating temperature (-25 .. +60 °C)
- Relays operates almost every appliance
- Small standby power (< 70mA 12V)
- Relay memory after power failure
- Optional password to keep the system at safety operating mode.
- Remote Password change
- Two operating mode optional ( remote setting with GSM phones)
- One relay is woking with the phone calling, and others working with the SMS
- Commands can added to GSM-phone number for raeady made commands
- Working voltage is at 9~24V AC /DC.
GSM-RELAY app software on the mobile phone for android and iphone system

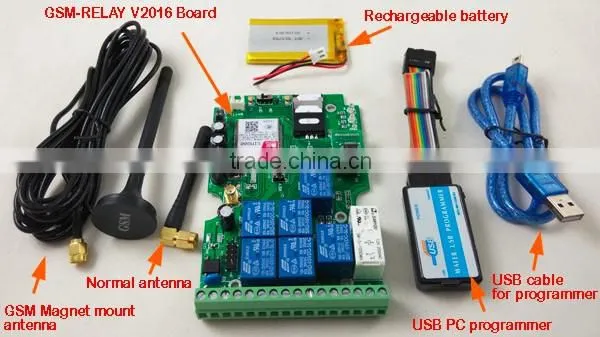

Standard accessory: Program adapter with PC Software

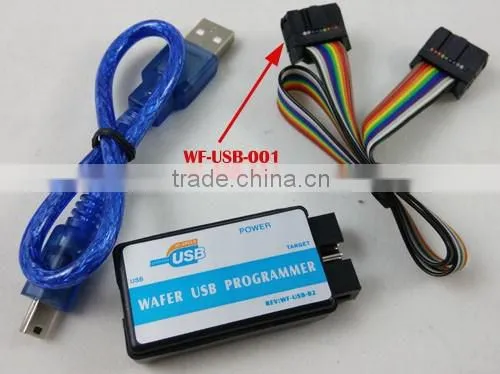

Wafer GSM-RELAY USB programmer

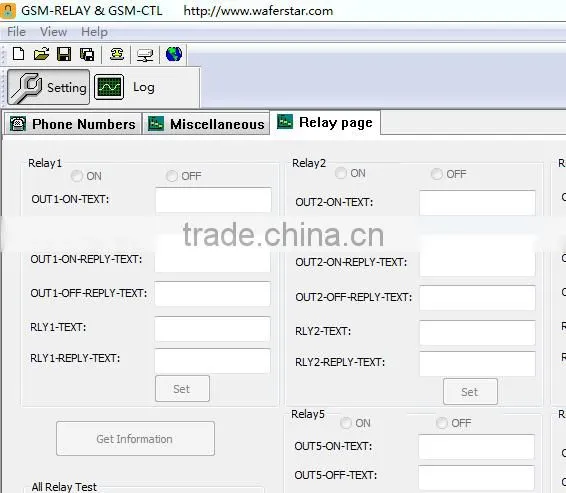

GSM-RELAY PC program software

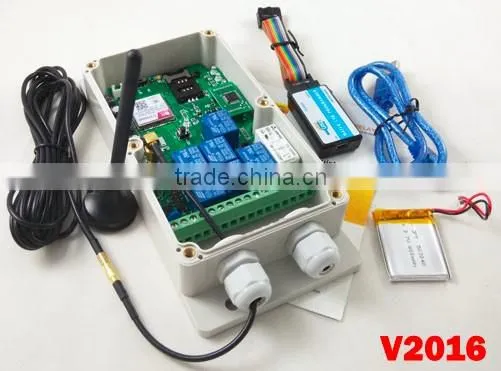

GSM Magnet Mount Antenna ( Specially designed for Water proof type GSM control box)
Applications:
Applications include the remote control of heating in holiday homes, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting of remote servers, arming and disarming security systems, access control of gates and garage doors.
Including GSM-RELAY controller and GSM magnet mount antenna
Packaging Details: Paper carton
Delivery Detail: 3~7days
We provide our service with email and fast skype service .
For gsm relay controller,we have 2 years free repair warranty.
