5 Port 10/100Mbps ethernet network industrial switch for Smart grid i305B

Name: 5 Port 10/100Mbps ethernet network industrial switch for Smart grid i305B
Brand: InMax
Price: USD $42 - 48 / Piece

FOB Price

USD $42 - $48 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen HK
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

InMax

Model Number:

i305B

Product Description

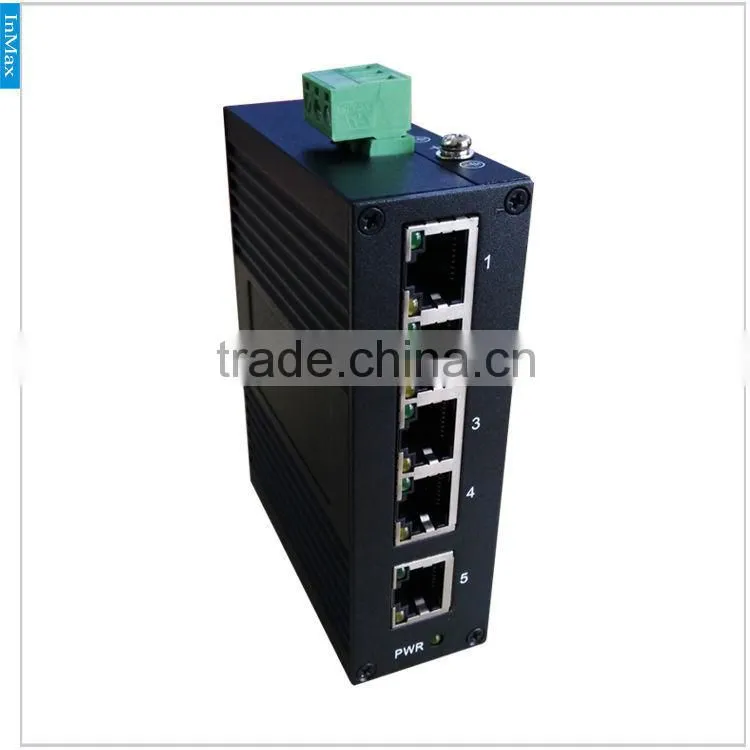

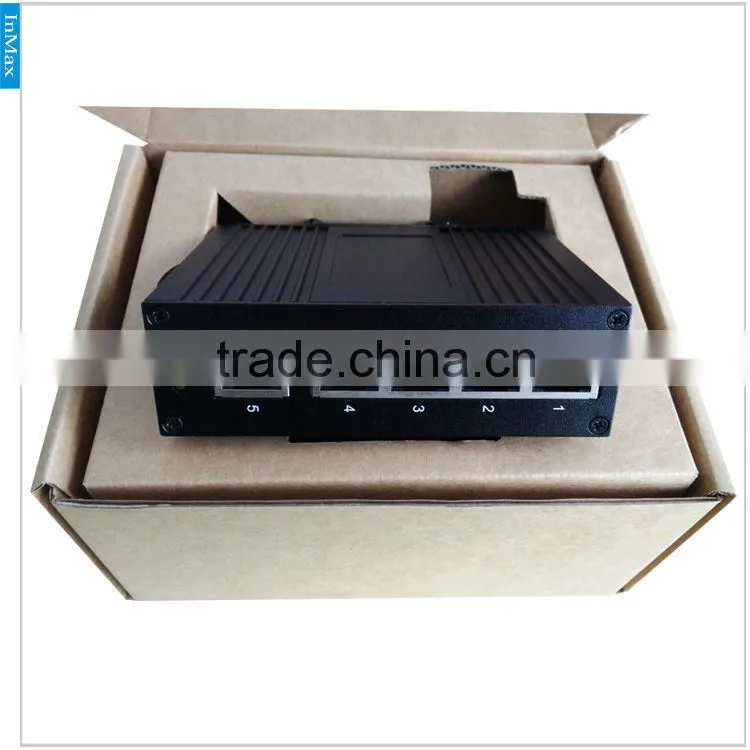

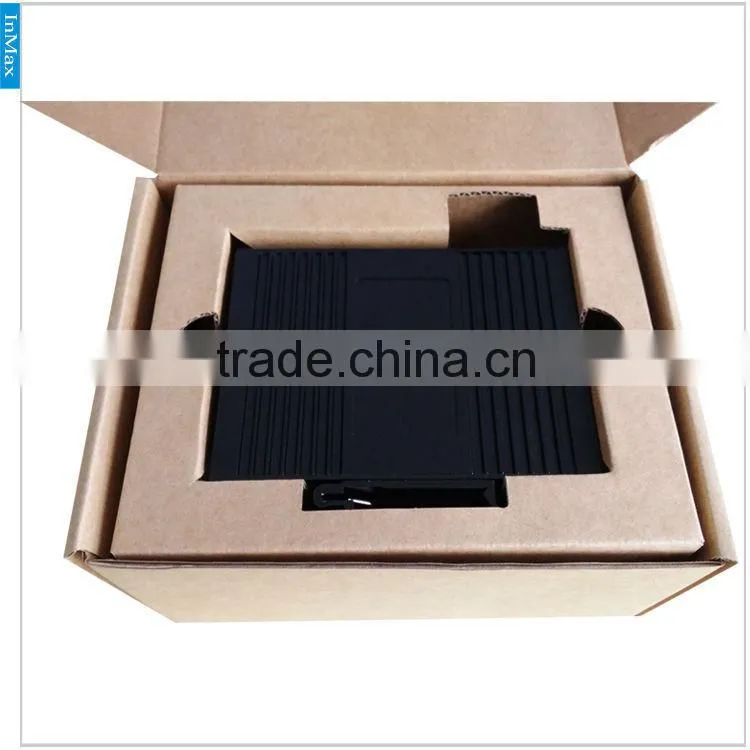

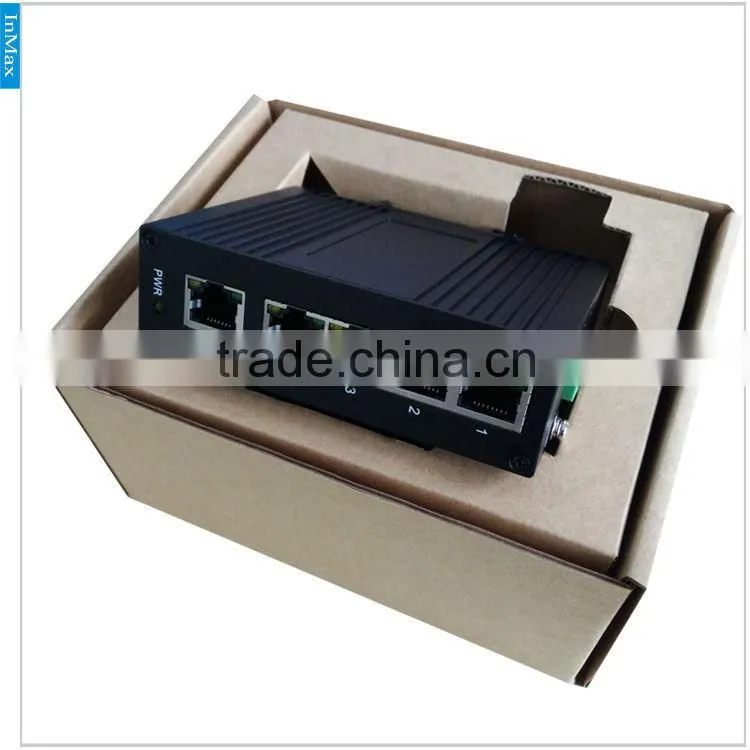

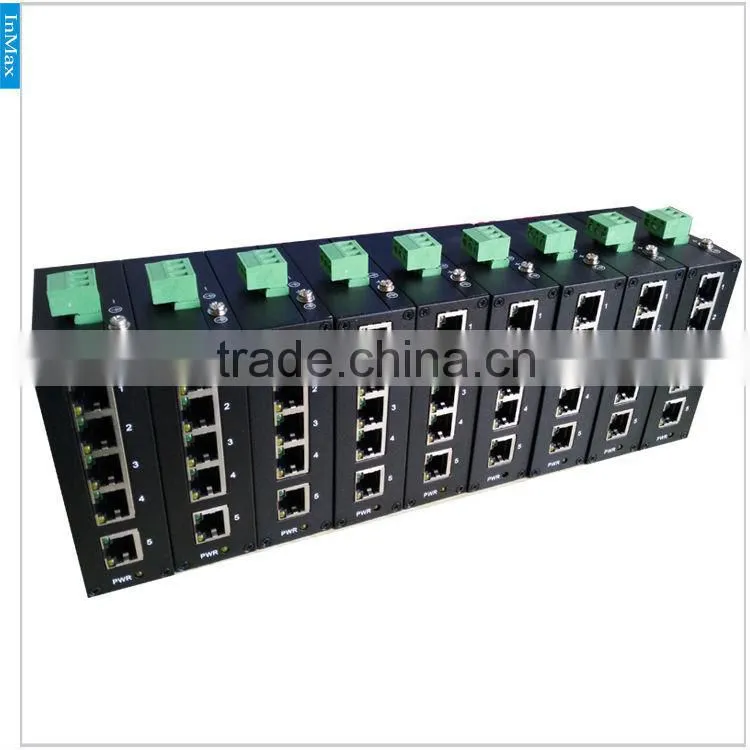

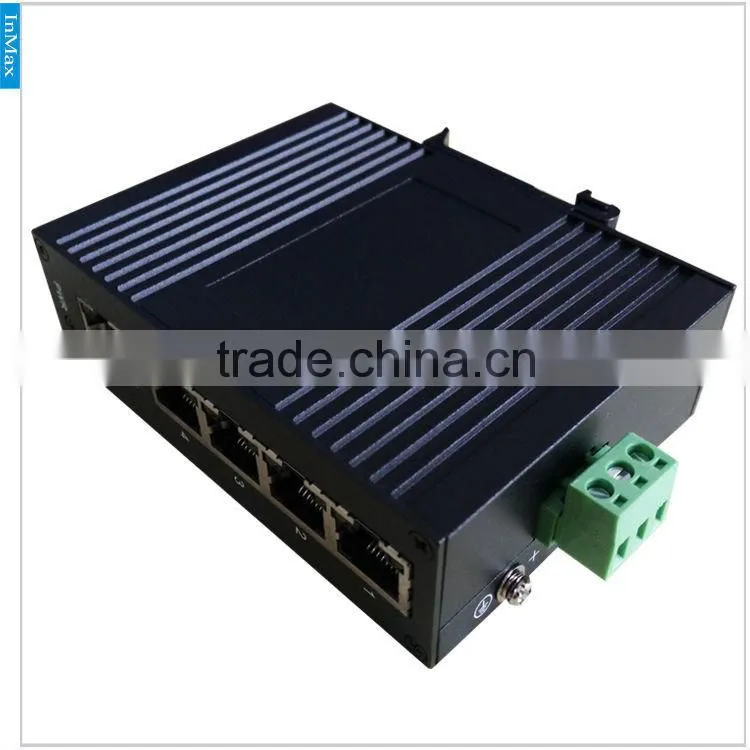

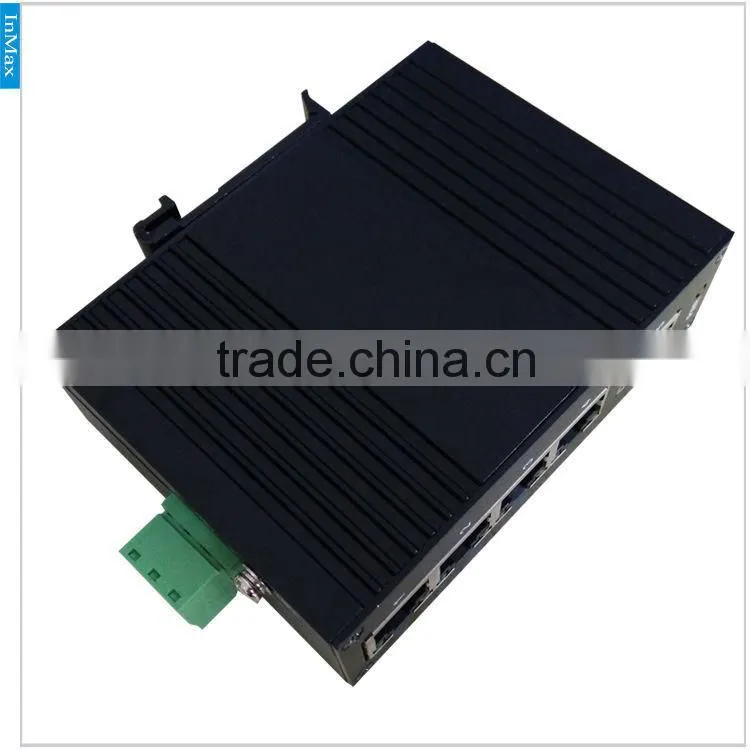

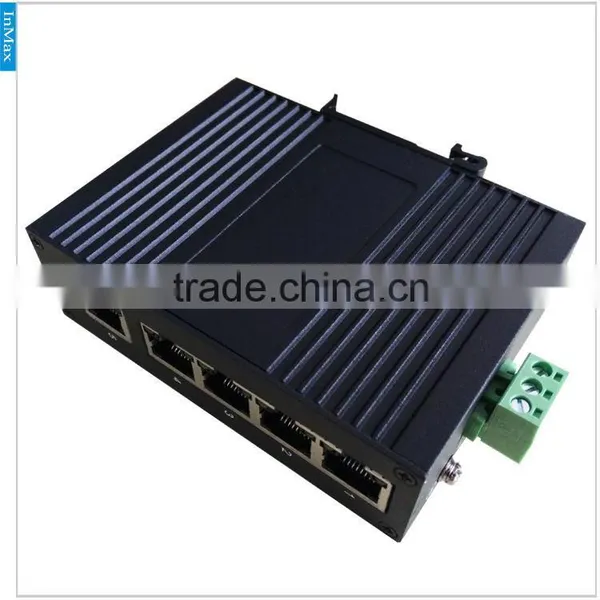

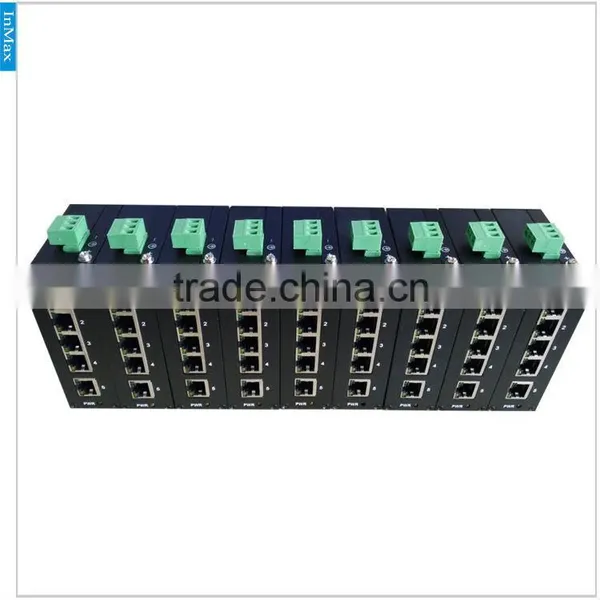

InMax i305B 5 Port Unmanaged Industrial Ethernet Switch
Main Features
5x10/100BaseTX ports
Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs
Metal, IP40 protection,DIN-Rail mounting, wall mounting

Overview
InMax i305B Unmanaged Redundant Ethernet Switch has one fiber optic Ethernet port. Its highly reliable hardware design is ideal for non-stop industrial applications.
Specifications
Standards	IEEE 802.3 IEEE 802.3u

Interface
RJ45 Ports	10/100BaseTX auto negotiation

LED
Port Led	Copper: Link1,2,3,4,5, Act1,2,3,4,5
Power Led	PWR
Power Requirements
Input Voltage	24VDC (12 ~ 36VDC), redundant dual inputs
Input Current	InMax. <014A@24VDC,<2.4W
Overload Current Protection	Present
Reverse Polarity Protection	Present
Connector	6-contact terminal blocks
Mechanical Properties
Housing	Metal, IP40 protection
Dimensions	32 x 108 x 78mm
Weight	280g

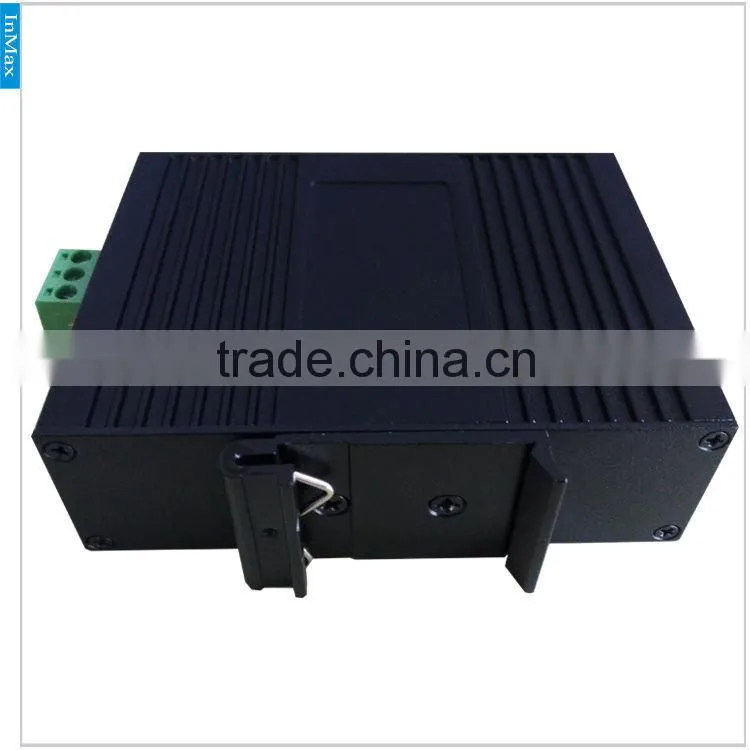

Installation	DIN-Rail mounting, wall mounting
Environmental Limits
Operating Temperature
Standard Models	0 to +60°C (32 to 140°F )
Wide Temp. Models	-40 to +75°C (-40 to 167°F)
Storage Temperature	-40 to +85°C (-40 to 185°F )
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	UL 60950-1
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty
Warranty Period	5 years
Ordering Information
Available Models	Transceiver Type	Connector Type	Temperature Range
i305B	2Km Dual-fiber MMF1310nm	SC/PC ST/PC FC/PC	-40°C to +85°C (-40 to 185°F )
	20Km Dual-fiber SMF1310nm
	40Km Dual-fiber SMF1310nm
	60Km Dual-fiber SMF1310nm
	80Km Dual-fiber SMF1550nm
	120Km Dual-fiber SMF1550nm
	20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm

Dimensions
