24 Ports Rack-Mount 2x1000M FX(SFP Slot) and 24x10/100MBase TX Gigabit Managed Industrial PoE Switches

Name: 24 Ports Rack-Mount 2x1000M FX(SFP Slot) and 24x10/100MBase TX Gigabit Managed Industrial PoE Switches
Brand: InMax
Availability: InStock

FOB Price

USD $100 - $699 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shenzhen HK
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	InMax
Model Number	P3626

Product Description

InMax P3626 4G+24Ports Gigabit PoE Managed Industrial Ethernet Switch
Main Features
2x100BaseFX/1000BaseX (SFP slots) for uplink, 24 x 10/100M BaseTX (PSE+Fast Ethernet) ports downlink
Provide up to 15.4watts per PSE port for remote devices
InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
SNMPv1/v2c/v3 for different levels of network management
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
IGMP snooping for filtering multicast traffic
Easy network management through web browser, CLI, Telnet /serial console, SNMP
Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs
Metal, IP40 protection,DIN-Rail mounting, wall mounting

Overview
As Power Source Equipment, P3626 is deployed at the Ethernet access layer in small/medium enterprise, residential area, campus, etc. The manageable P3626 series PoE switches can provide up to 8 PSE+Fast Ethernet downlinks access interfaces (up to 15.4watts per port) with 2x1000BaseX/100BaseFX dual rate SFP uplinks. P3626 PoE switches can offer power supply for PD devices such as wireless Access Point, IP phone and surveillance camera. P3626 PoE switches utilize advanced microchips to ensure carrier-class stability and reliability, and can be managed either locally or remotely via CLI, SNMP, Web and Telnet.

Features and Benefits
Ports: 2x100BaseFX/1000BaseX (SFP slots) for uplink, 8 x 10/100M BaseTX (PSE+Fast Ethernet) ports + 16 x 10/100M BaseTX (only Fast Ethernet) ports +24 x 10/100M BaseTXfor downlink
PoE: Comply with IEEE 802.3af standards Provide up to 15.4watts per PSE port for remote devices
High Reliability
Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,and RSTP fornetwork redundancy Support LACP to expand the bandwidth of a switch port, balance the traffic among all the ports in a link aggregation and enhance the connection reliability.
Management & maintainability
Support SNMP v1/v2c/v3 and RMON MIB Group 1, 2, 3, 9
Comprehensive Security
Support 802.1X authentication Support MAC address authentication Support MAC-IP-port binding
Versatile QoS Policies
Offer powerful hardware ACL capability Support different priority criteria: DSCP priority, 802.1p priority, Strict Priority (SP) and Weighted Round Robin (WRR). Support diversified flow-based QoS actions. Based on the ACL defined, the switches can perform the following QoS: rate limit, traffic shape, traffic statistics, and priority marking.
Specifications
Standards	IEEE 802.3af PoE IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1X for Authentication IEEE 802.3x for Flow Control IEEE 802.1D-2004 for STP IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple STP IEEE 802.1Q for VLAN Tagging IEEE 802.3ac for VLAN Tag Frame Extension IEEE 802.1p for Class of Service IEEE 802.3ad for Port Trunk with LACP
Protocols	IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Server/Client
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control	IEEE 802.3x flow control, back pressure flow control

Switch Properties
Priority Queues	4
Max Number of Available VLANs	256
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	8K
Packet Buffer Size	2 Mbit

Interface
Fiber Ports	100BaseFX / 1000BaseX (SFP slots)
RJ45 Ports	10/100BaseTX auto negotiation
Console Port	RS-232 (RJ45 connector)
Alarm Contact	1 relay outputs with current carrying capacity of3A@30VDC or 3A@240VDC

LED
System Led	SYS
Port Led	Copper: Link 1~24, Act 1~24 ,Fiber: Link/ ActG1,G2
Power Led	PWR

Power Requirements
Input Voltage	48 VDC (36 ~ 72VDC) or 110/220 VAC (85 ~ 265V)
Input Current	0.1A@48VDC,5W
Input current(Max)	0.25A@48VDC,12W(with no PD)
Input current(Max)	2.5A@48VDC,135W(with 8 PD)
Input current(Max)	5.4A@48VDC,258W(with 16 PD)
Input current(Max)	8A@48VDC,382W(with 24 PD)
Overload Current Protection	Present
Reverse Polarity Protection	Present
Connector	5-contact terminal blocks

Mechanical Properties
Housing	Metal, IP40 protection
Dimensions	44028145 mm
Weight	3.35Kg
Installation	19-inch 1U rack installation

Environmental Limits
Operating Temperature
Standard Models	0 to +60°C (32 to 140°F )
Wide Temp. Models	-40 to +75°C (-40 to 167°F)
Storage Temperature	-40 to +85°C (-40 to 185°F )
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications
Safety	UL 60950-1
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty
Warranty Period	5 years

Ordering Information
Available Models	SFP Transceiver Type	Connector Type	Temperature Range
P3626	2Km Dual-fiber MMF1310nm	LC/PC	-40°C to +85°C (-40 to 185°F )
	20Km Dual-fiber SMF1310nm
	40Km Dual-fiber SMF1310nm
	60Km Dual-fiber SMF1310nm
	80Km Dual-fiber SMF1550nm
	120Km Dual-fiber SMF1550nm
	20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm

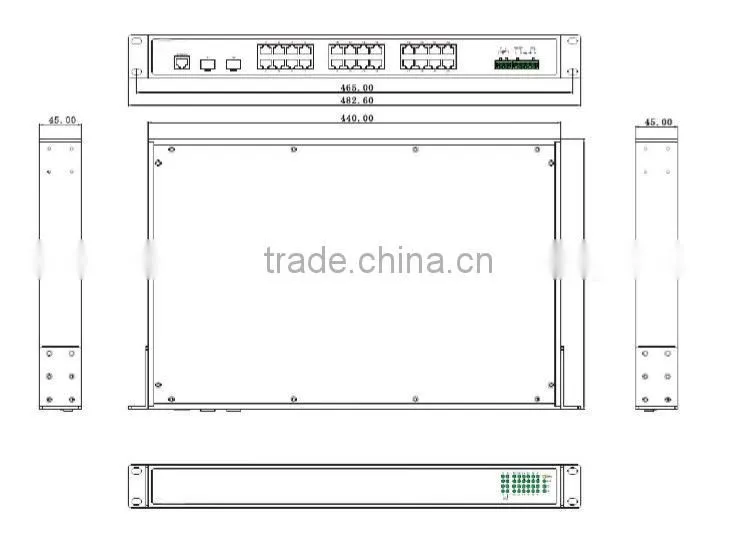

Dimensions
