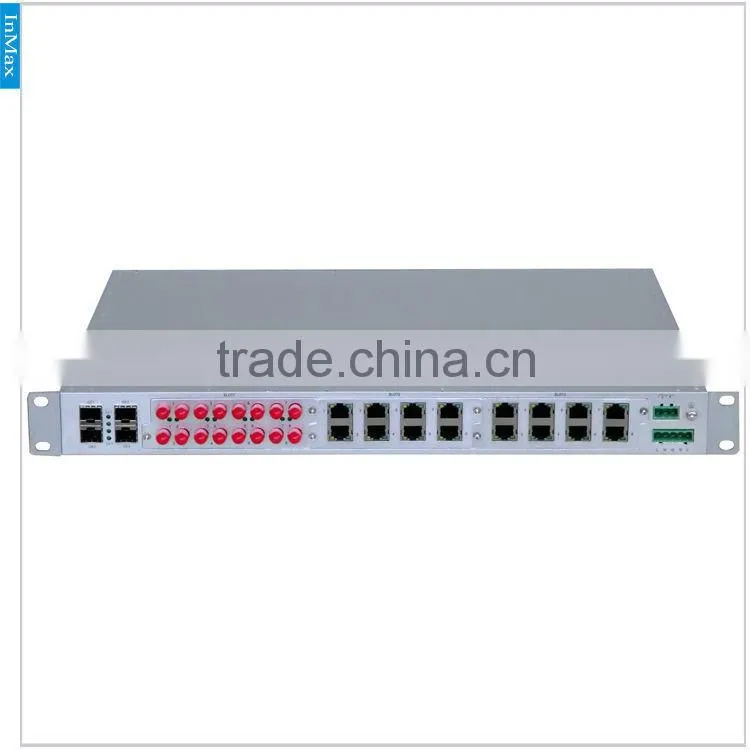

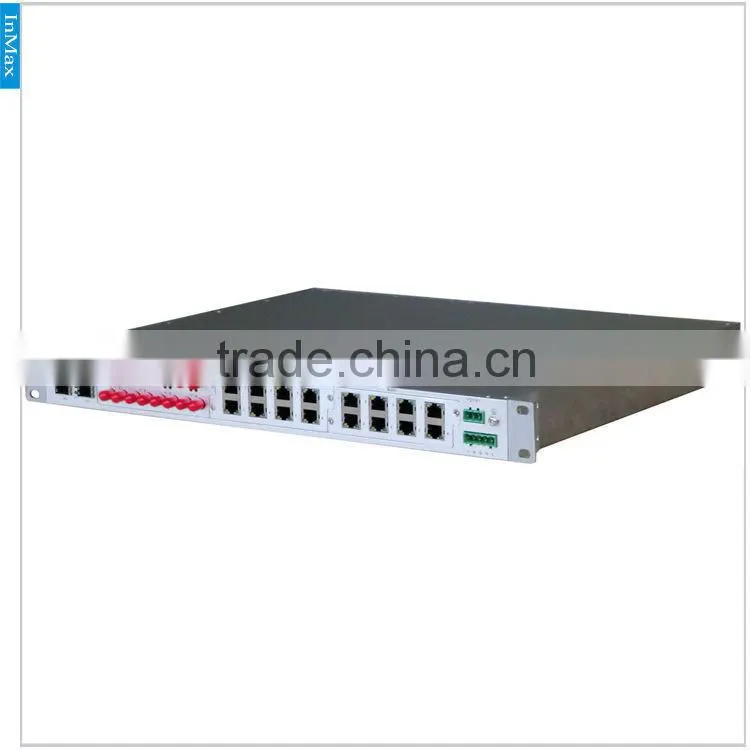

Rack-Mount 4x1000M FX(SFP Slot) and 24x10/100MBase TX 28 Ports Modularized Managed Industrial Fiber Optic Ethernet Switch
US$ 1,000 - 1,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
PT3628
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rack-Mount 4x1000M FX(SFP Slot) and 24x10/100MBase TX 28 Ports Modularized Managed Industrial Ethernet SwitchUS$ 1,000 - 1,500MOQ: 1 Piece -
InMaxPT5626 26 Ports Modularized Full Gigabit Advanced Managed Industrial SwitchUS$ 1,000 - 1,500MOQ: 1 Piece
-
InMaxPT5626 26 Ports Modularized Full Gigabit Advanced Managed Industrial Ethernet Switch BoardUS$ 1,000 - 1,500MOQ: 1 Piece
-
InMaxPT5626 26 Ports Modularized Full Gigabit Advanced Managed Industrial Network SwitchUS$ 1,000 - 1,500MOQ: 1 Piece
-
High-quality 24x1000M FX(SFP Slot) Ports Modularized Full Gigabit Advanced Managed Industrial Fiber Optic Ethernet SwitchUS$ 1,000 - 1,500MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
PT3628
| InMax PT3628 4G+24Ports Modularized Full Advanced Managed Industrial Ethernet Switch | |||
| Main Features | |||
| 4x1000BaseX (SFP slots) for uplink, 24 x 10/100M BaseTX/FX 3 card slots (PSE+Fast Ethernet) ports downlink | |||
| IEC 61850-3 and IEEE 1613(power substation) compliant | |||
| Reliable hardware design is suitable for industrial applications | |||
| Modularized design for flexible and scalable networks, support all-electrical 8 ports card and all-fiber 8 ports card | |||
| InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy | |||
| SNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance network security | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning,QoS | |||
| IGMP snooping for filtering multicast traffic,GMRP | |||
| Easy network management through web browser, CLI, Telnet /serial console, SNMP | |||
| Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs | |||
| Metal, IP40 protection | |||
| Optional front and rear wiring brings convenience for different wiring environment | |||
| Overview | |||
| PT3628 Series Modularized Advanced Managed Industrial Ethernet Switches equip with up to 4 Gigabit Ethernet ports. The “InMax Ring" redundant ring (recovery time < 20ms),RSTP,STP,and 110/220 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications. Optional front and rear wiring brings convenience for different wiring environment. AII these features make PT3628 Series suitable for a variety of industrial applications | |||
| Features and Benefits | |||
| Ports:· Uplink 4x1000BaseX SFP slots Downlink Up to 24 ports with 100M, 3 card slots Card slots support 8F,8T,4T4F,2F6T,6F2T. | |||
| High Reliability | |||
| Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,and RSTP fornetwork redundancy Support LACP to expand the bandwidth of a switch port, balance the traffic among all the ports in a link aggregation and enhance the connection reliability. | |||
| Management & maintainability | |||
| Support SNMP v1/v2c/v3 and RMON MIB Group 1, 2, 3, 9 | |||
| Comprehensive Security | |||
| Support 802.1X authentication Support MAC address authentication Support MAC-IP-port binding | |||
| Versatile QoS Policies | |||
| Offer powerful hardware ACL capability Support different priority criteria: DSCP priority, 802.1p priority, Strict Priority (SP) and Weighted Round Robin (WRR). Support diversified flow-based QoS actions. Based on the ACL defined, the switches can perform the following QoS: rate limit, traffic shape, traffic statistics, and priority marking. | |||
| Specifications | |||
| Standards | IEEE802.3 IEEE 802.3u IEEE802.3z IEEE 802.3ab IEEE 802.3x for Flow Control IEEE 802.1D-2004 for STP IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk |
||
| Protocols | IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Server/Client |
||
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
||
| Flow Control | IEEE 802.3x flow control, back pressure flow control | ||
| Switch Properties | |||
| Priority Queues | 4 | ||
| Max Number of Available VLANs | 256 | ||
| VLAN ID Range | VID 1 to 4094 | ||
| IGMP Groups | 256 | ||
| MAC Table Size | 8K | ||
| Packet Buffer Size | 2 Mbit | ||
| Interface | |||
| Fiber Ports | 1000BaseX(SFP slots),100BaseFX(ST connector) | ||
| RJ45 Ports | 10/100BaseTX auto negotiation | ||
| Console Port | RS-232 (RJ45 connector) | ||
| Alarm Contact | 1 relay outputs with current carrying capacity of 2A@250VAC/220VDC | ||
| LED | |||
| System Led | SYS | ||
| Port Led | Copper: Link 1~24, Act 1~24 ,Fiber: Link/ ActG1,G2,G3,G4 | ||
| Power Led | PWR | ||
| Power Requirements | |||
| Redundant dual inputs,A C-powered or DC-powered | |||
| Power | 110,220VDC(88-300V) or 110,220VAC(88-300V) | ||
| Input Voltage | 24VDC(18~36VDC) 48VDC(36~72VDC) 110/220VAC(88~300V) |
||
| Input Current | 0.41A@24VDC,10W 0.21A@48VDC,10W 0.045A@220VAC,10W |
||
| Input current(Max) | 1.83A@24VDC,44W 0.91A@48VDC,44W 0.2A@220VAC,44W |
||
| Overload Current Protection |
Present | ||
| Reverse Polarity Protection |
Present | ||
| Connector | 5-contact terminal blocks | ||
| Mechanical Properties | |||
| Housing | Metal, IP40 protection | ||
| Dimensions | 440 x 44.5 x 370mm | ||
| Weight | 5Kg | ||
| Installation | 19-inch 1U rack installation | ||
| Environmental Limits | |||
| Operating Temperature | |||
| Standard Models | 0 to +60°C (32 to 140°F ) | ||
| Wide Temp. Models | -40 to +75°C (-40 to 167°F) | ||
| Storage Temperature | -40 to +85°C (-40 to 185°F ) | ||
| Ambient Relative Humidity |
5 to 95% (non-condensing) | ||
| Standards and Certifications | |||
| Safety | UL 60950-1,CSA C22.2 No, 60950-1 and EN 60950-1 | ||
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A | ||
| EMS | EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5 |
||
| Shock | IEC 60068-2-27 | ||
| Freefall | IEC 60068-2-32 | ||
| Vibration | IEC 60068-2-6 | ||
| Warranty | |||
| Warranty Period | 5 years | ||
| Ordering Information | |||
First:Choose the available switch models;
Available Models |
Power Configuration |
Wiring Way |
PT 3628 |
SA: Single AC power |
F: Front R: Rear |
SD: Single DC power | ||
AA: Dual AC power | ||
DD: Dual DC power | ||
AD: AC power+DC power |
Second:Choose available supportable card models;
Available Models |
Description |
PT 3628-6F2T |
6 100BaseFX ST ports + 2 RJ45 |
PT 3628-4F4T |
4 100BaseFX ST ports + 4 RJ45 |
PT 3628-2F6T |
2 100BaseFX ST ports + 6 RJ45 |
PT 3628-8T |
8 10/100BaseTX RJ45 ports |
PT 3628-8F |
8 100BaseFX ST ports |
PT 3628-4G |
4 10/100/1000Base-X slots |

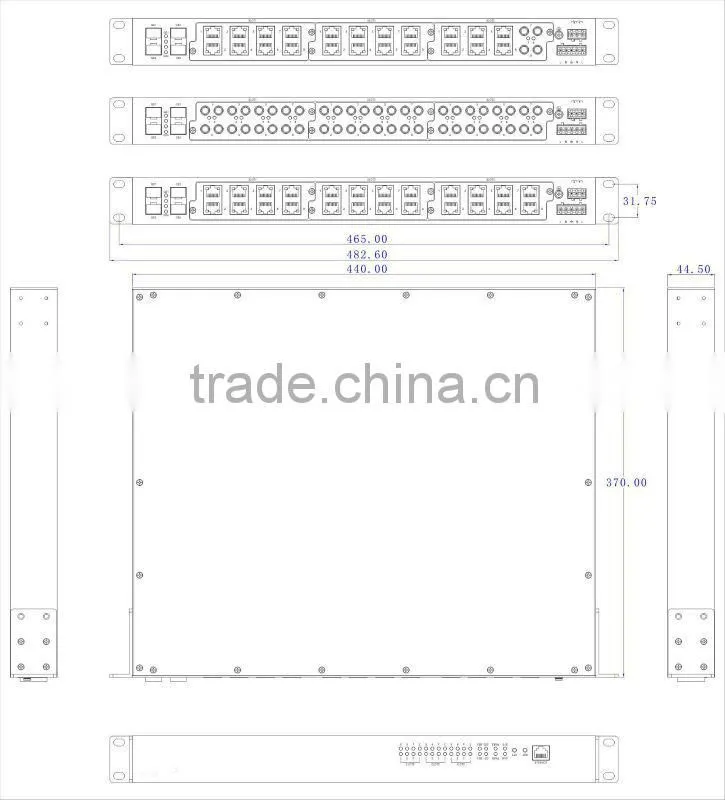

| Dimensions |
