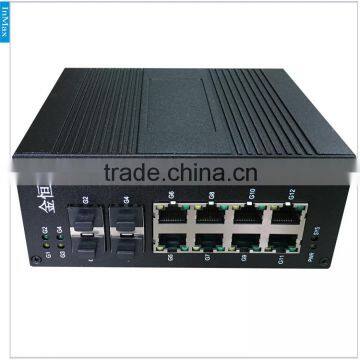

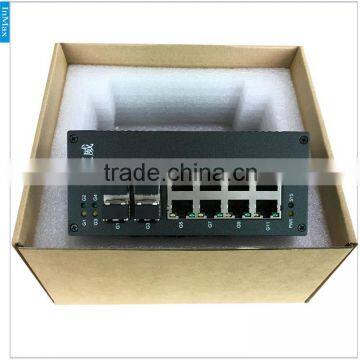

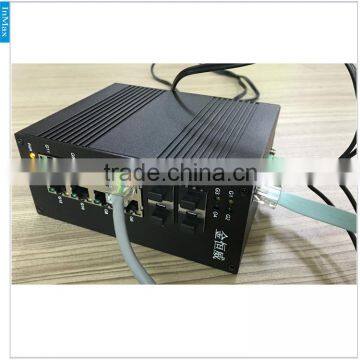

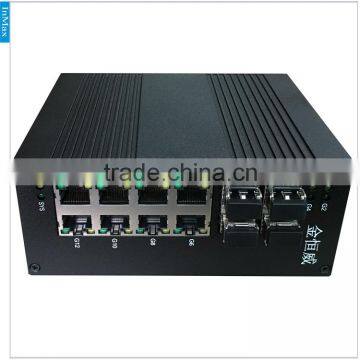

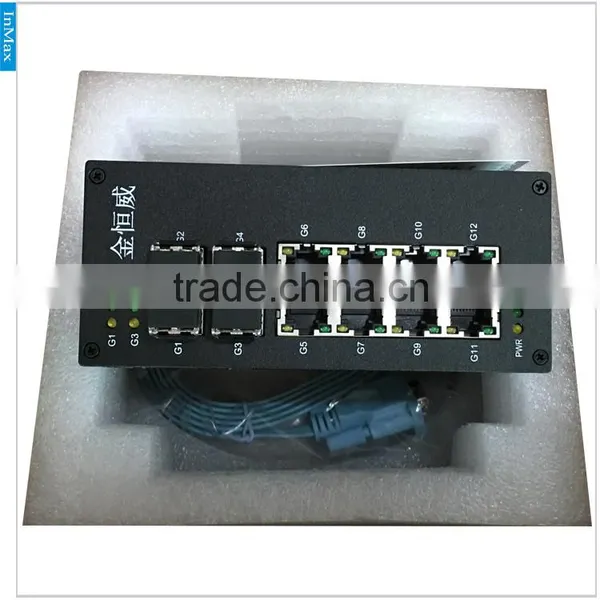

4x1000BaseX SFP Slots and 8x10/100/1000BaseT(X) Ports Full Gigabit Industrial Network Switch I712A
US$ 320 - 350
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 12
Transmission Rate:
Other, 10/100/1000Mbps, 10 /100/1000Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Year Warranty 4 Fiber Port and 8 RJ45 Port Din-rail Managed Gigabit Industrial Ethernet Switch I712AUS$ 320 - 350MOQ: 1 Piece -
Full Gigabit DIN Rail Ethernet Switch, 4G+8T OEM Industrial Ethernet Switch Board I712AUS$ 320 - 350MOQ: 1 Piece
-
4GSFP+8GE Full Gigabit Industrial Ethernet Switch for Video Transmission I712AUS$ 320 - 350MOQ: 1 Piece
-
Full Gigabit Fiber Optic Ethernet Switch, 4GSFP+8GE Network Switch for ITS I712AUS$ 320 - 350MOQ: 1 Piece
-
4 Fiber Port and 8 RJ45 Port Din-rail Managed Gigabit Industrial Ethernet Switch for Smart Transportation I712AUS$ 320 - 350MOQ: 1 Piece
Products Status
Stock
Ports
Other, 12
Transmission Rate
Other, 10/100/1000Mbps, 10 /100/1000Mbps
Function
LACP, POE, QoS, SNMP, Stackable, VLAN Support, SNMP
Communication Mode
Other, Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex
Certification
ROSH, FCC, CE, RoHS
Brand Name
InMax
Model Number
i712A
Place of Origin
Guangdong, China
| InMax i712A Series full Gigabit managed Industrial Ethernet Switches | |||
| Main Features | |||
| 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseTX Ports | |||
| InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy | |||
| SNMPv1/v2c/v3 for different levels of network management | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning | |||
| IGMP snooping for filtering multicast traffic | |||
| Easy network management through web browser, CLI, Telnet /serial console, SNMP | |||
| Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs | |||
| Metal, IP40 protection,DIN-Rail mounting, wall mounting | |||
| Introduction | |||
| The i712A series managed Industrial Ethernet switches are equipped with up to 12 Gigabit Ethernet ports. The “InMax Ring” redundant Ring (recovery time < 20ms), RSTP/STP can increase system reliability and your network availability. Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs. The super hardware reliability is especially suitable for industrial applications. | |||
| Features and Benefits | |||
| Up to 12 Gigabit ports(4 100/1000BaseX SFP ports and 8 10/100/1000BaseTX ports) | |||
| Command Line Interface (CLI) for quickly configuring major managed functions | |||
| InMax Ring Protocol “InMax Ring” (recovery time < 20 ms), RSTP, STP and MSTP for network redundancy | |||
| IGMP snooping and GMRP for filtering multicast traffic | |||
| Support up to 16k byte Jumbo Frame | |||
| Support 8K MAC address | |||
| Max. Number of Available VLANs: 4094 | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning | |||
| DHCP Option 82 for IP address assignment with different policies | |||
| Support port mirroring | |||
| Support traffic control of multicast and broadcast | |||
| QoS and ToS/DiffServ to increase determinism | |||
| Port Trunking for optimum bandwidth utilization | |||
| SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security | |||
| SNMPv1/v2c/v3 for different levels of network management | |||
| RMON for efficient network monitoring and proactive capability | |||
| Bandwidth management prevents unpredictable network status | |||
| Lock port function for blocking unauthorized access based on MAC address | |||
| Automatic warning by exception through e-mail, relay output | |||
| Specifications | |||
| Technology | |||
| Ethernet Standards |
IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE802.3-2005 Clause 58/59 IEEE 802.1X (Security) IEEE 802.3x (Flow Control) IEEE 802.3ad (Link Aggregation) IEEE 802.1D (STP) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE 802.1Q (VLANs) IEEE 802.1Q (GVRP/GARP) IEEE 802.3ac (VLAN Tag Frame Extension) IEEE 802.1p (CoS) |
||
| Administration Protocol | RFC 826 (ARP)RFC 826 (ARP) | ||
| RFC 1812 (IPv4 Router) | |||
| RFC 783 (TFTP) | |||
| RFC 768 (UDP) | |||
| RFC 791 (IP) | |||
| RFC 792 (ICMP) | |||
| RFC 793 (TCP) | |||
| RFC 2474 (Diffserv) | |||
| RFC 2131 (DHCP) | |||
| RFC 2267 (Network Ingress Filtering) | |||
| RFC 1156 (TCP/IP MIB) | |||
| RFC 1212 (Concise MIB definitions) | |||
| RFC 1213 (MIB for Network Management of TCP/IP based internets (MIB II) | |||
| RFC 2618 (Radius Authentication Client MIB) | |||
| RFC 2620 (Radius Accounting MIB) | |||
| RFC 2765 (Stateless IP/ICMP Translation Algorithm) | |||
| RFC 2819 (Remote Network Monitoring MIB (group 1,2,3,9) | |||
| RFC 1757 (RMON (groups 1 2 3 and 9) | |||
| RFC 1157 (SNMP) | |||
| RFC 1902 (SNMPv2) | |||
| RFC 1901 (Community based SNMPv2) | |||
| RFC 2271 (SNMPv3 Architecture) | |||
| RFC 2573 (SNMPv3 Applications) | |||
| RFC 2576 (Coexistence between SNMP V1, V2, V3) | |||
| RFC 854 (Telnet) | |||
| RFC 896 (Congestion control in IP/TCP network) | |||
| RFC 1122 (Requirements for Internet Hosts) | |||
| RFC 2597 (Assured Forwarding PHB group (partial support) | |||
| RFC 2865 (Remote Authentication Dial In User Service) | |||
| RFC 2869bis (Radius Support for Extensible Authentication) | |||
| Ethernet Specifications | Store and forward mode: Non-blocking switching | ||
| Switch fabric:24Gbps | |||
| Support up to 16k byte Jumbo Frame | |||
| Support 8K MAC address | |||
| Support MAC address black hole | |||
| Support MAC address learning limit | |||
| Support port-based VLAN | |||
| Support 802.1Q VLAN (4K VLANs) | |||
| Support protocol-based VLAN | |||
| Support GVRP/GARP (Generic VLAN Registration Protocol) | |||
| Support VLAN isolation (16) | |||
| Support VLAN translation | |||
| Support VLAN VPN (QinQ) | |||
| Support LACP | |||
| Support static link aggregation | |||
| Support up to 16 aggregation groups and up to 8 ports per group | |||
| Support 802.3x in full duplex mode | |||
| Support back pressure in half duplex mode | |||
| Discovery remote base on link layer | |||
| Auto shutdown individual ports upon fault signals | |||
| Auto-detection interval can be set | |||
| Support STP/RSTP, Support MSTP | |||
| Support IGMP snooping v1/v2/v3 | |||
| Support static multicast groups | |||
| Support DHCP client | |||
| Support DHCP snooping | |||
| Support DHCP relay option82 | |||
| Support hierarchical management and password protection of users | |||
| Support IEEE 802.1X authentication | |||
| Support centralized MAC address based authentication | |||
| Support traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, Layer 4 port, protocol type, VLAN, and so on | |||
| Flow-based traffic rate limit | |||
| Support flow-based priority tag | |||
| Flow-based redirection of packets to another port | |||
| Flow-based traffic statistics | |||
| Support SP/WRR/SP+WRR queue scheduling | |||
| Support flexible port mirroring, up to 4 port mirroring groups, monitoring network traffic by sending copies of all incoming and outgoing packets from the mirroring ports to a monitoring port. | |||
| Support port traffic shaping | |||
| Support congestion avoidance and drop policies | |||
| Support locally / remotely management via CLI, SNMP, Web and Telnet, Console port | |||
| Support Simple Network Management Protocol (SNMP) v1/v2/v3 | |||
| Support Remote Monitoring (RMON) 1/2/3/9 groups of MIBs | |||
| Support system log, hierarchical alarms | |||
| Support SSH v2 | |||
| Support power supply/fans/temperature of IC/ status detection and alarms | |||
| Support Debugging Information Output | |||
| Support remote maintenance through Telnet | |||
| MIB |
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
||
| Flow Control | IEEE 802.3x flow control, back pressure flow control | ||
| Switch Properties | |||
| Priority Queues | 4 | ||
| MAC Table Size | 8K | ||
| Max. Number of Available VLANs | 4094 | ||
| VLAN ID Range | VID 1~4094 | ||
| IGMP Snooping Groups | 256 | ||
| Jumbo Frame Size | 16Kb | ||
| Packet Buffer Size | 512Kb | ||
| Interface | |||
| Fiber Ports | 1000Base-X (SFP slot) | ||
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed | ||
| Console Port | RS-232 (RJ45 connector) | ||
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC | ||
| Button | Reset button | ||
| LED Indicators | |||
| System Led | SYS | ||
| Interface indicator |
SFP Ports: Link/ Act G1,G2,G3,G4 RJ45 Ports: LinkG5~G12, ActG5~G12 |
||
| Power Led | PWR | ||
| Power Requirements | |||
| Input Voltage | 24VDC(12 to 36VDC),redundant dual inputs | ||
| Connection | 6-contact terminal blocks | ||
| No-load Power | 3.0W@24VDC | ||
| Full Load Power | <0.24A@24VDC, <6W | ||
| Overload Current Protection | Present | ||
| Reverse Polarity Protection | Present | ||
| Redundant protection | Present | ||
| Physical Characteristics | |||
| Housing | IP40 protection, High strength aluminium profile | ||
| Installation | DIN-rail mounting, wall mounting | ||
| Weight | 750g | ||
| Dimensions(W x H x D) | 60.2 mm x 138.5mm x 112.5mm | ||
| Environmental Limits | |||
| Operating Temperature | |||
| Standard Models | 0 to +60°C (32 to 140°F ) | ||
| Wide Temp. Models | -40 to +75°C (-40 to 167°F) | ||
| Storage Temperature | -40 to +85°C (-40 to 185°F ) | ||
|
Ambient Relative Humidity |
5 to 95% (non-condensing) | ||
| Standards and Certifications | |||
| Safety | UL 60950-1 | ||
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A | ||
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5 |
||
| Shock | IEC 60068-2-27 | ||
| Freefall | IEC 60068-2-32 | ||
| Vibration | IEC 60068-2-6 | ||
| Warranty | |||
| Warranty Period | 5 years | ||
| Details | See | ||
| Certifications | |||
| CE,FCC,RoHS,UL508(In authentication) | |||
| Please check InMax’s website for the most up-to-date certification status. | |||
| Ordering Information | |||
| Available Models | SFP Transceiver Type | Connector Type | Temperature Range |
| i712A | 2Km Dual-fiber MMF1310nm | SFP |
-40°C to +85°C (-40 to 185°F ) |
| 20Km Dual-fiber SMF1310nm | |||
| 40Km Dual-fiber SMF1310nm | |||
| 60Km Dual-fiber SMF1310nm | |||
| 80Km Dual-fiber SMF1550nm | |||
| 120Km Dual-fiber SMF1550nm | |||
|
20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm | |||
