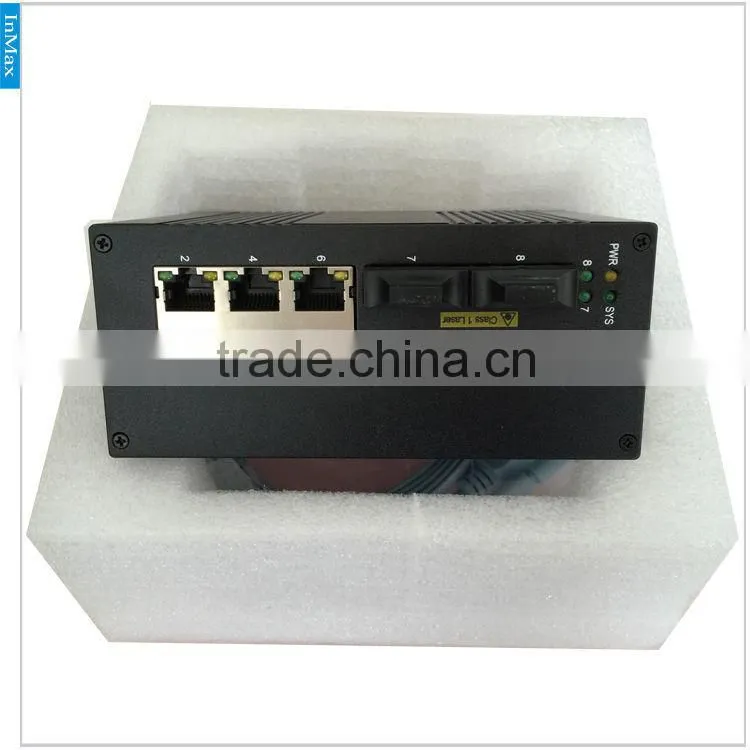

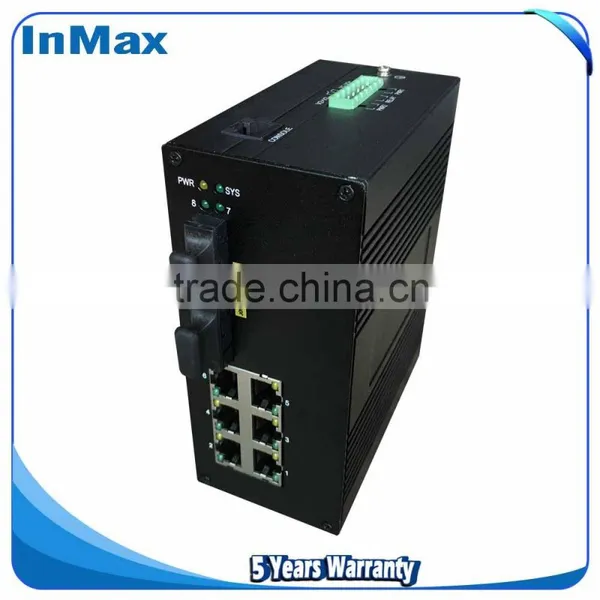

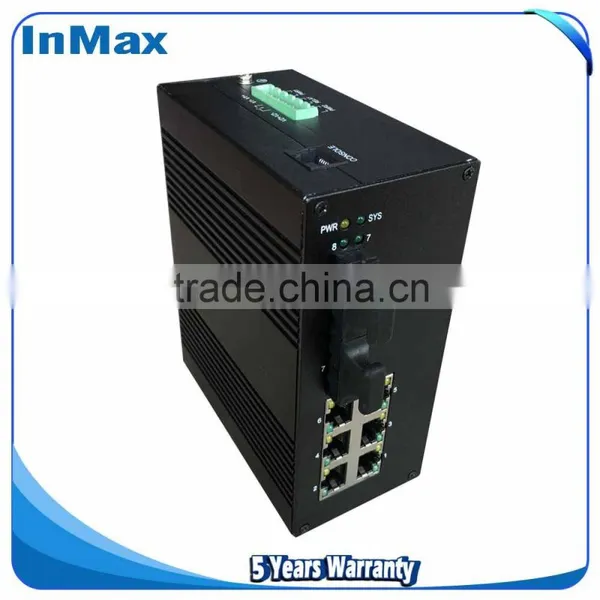

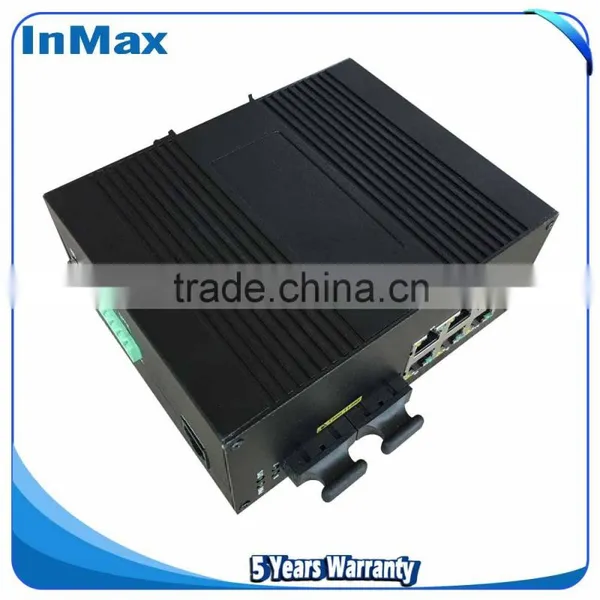

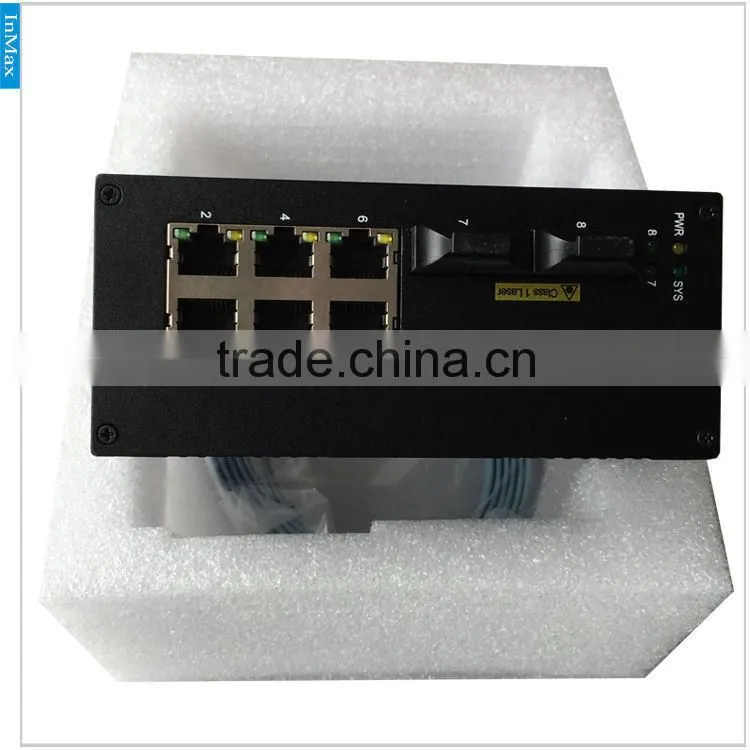

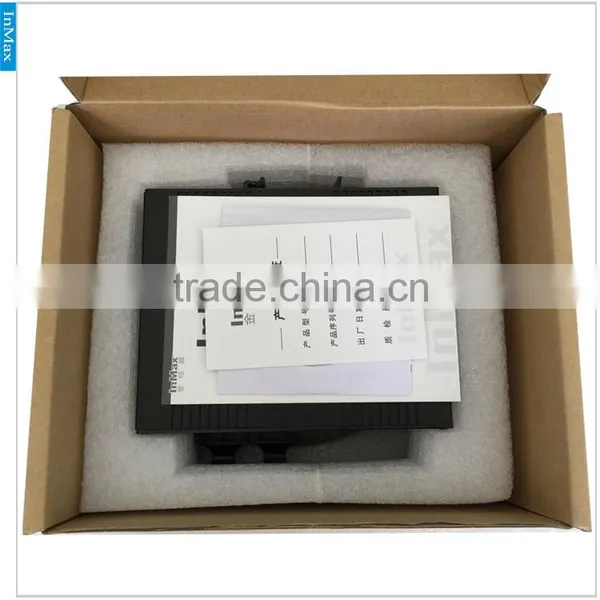

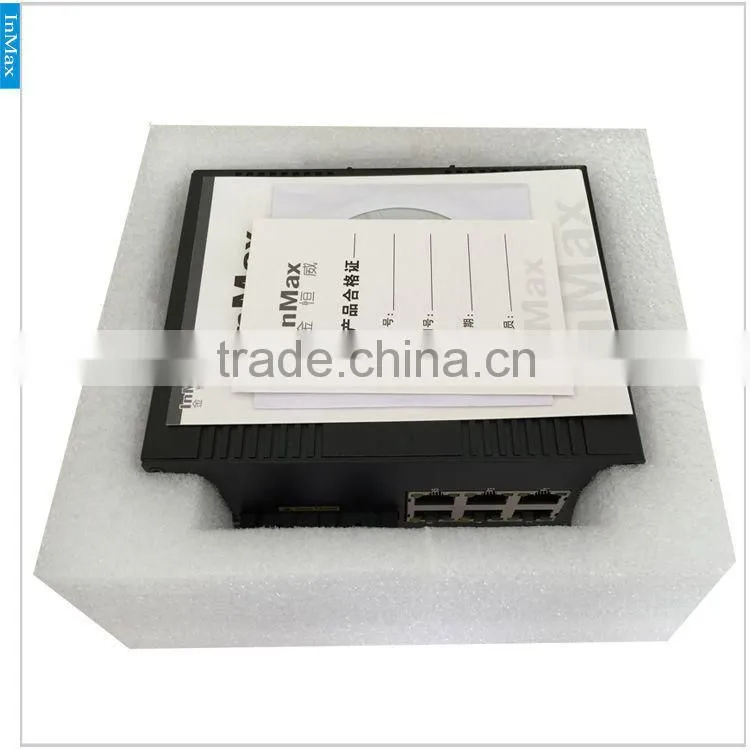

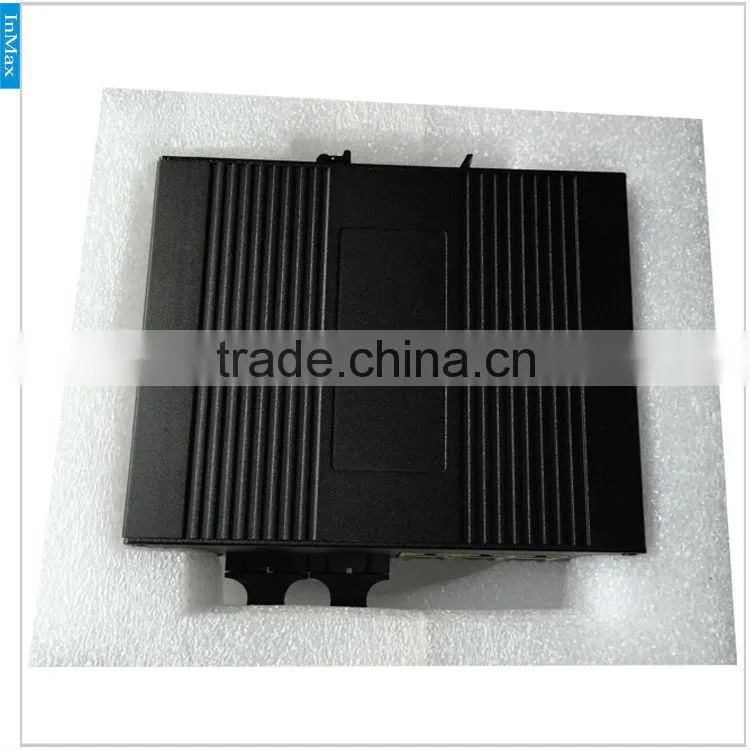

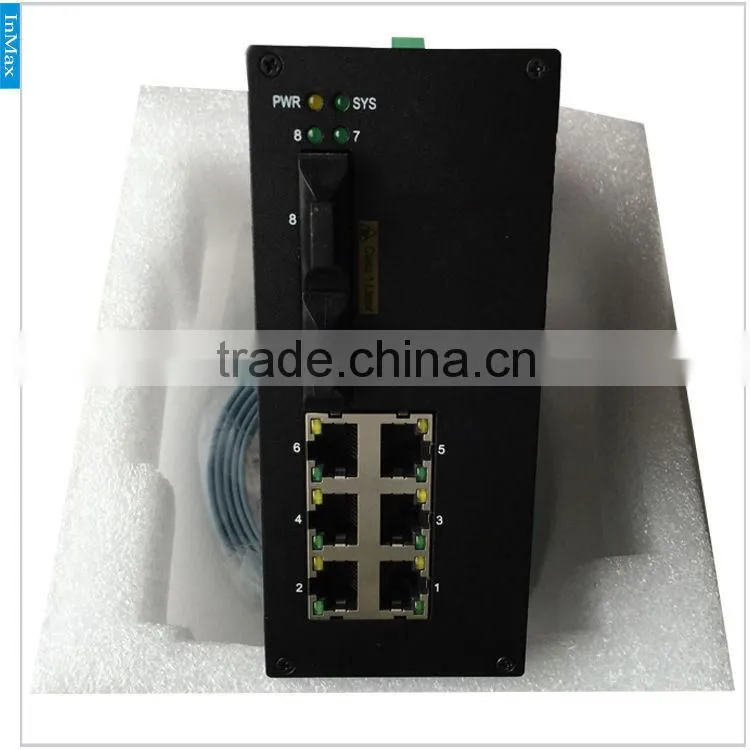

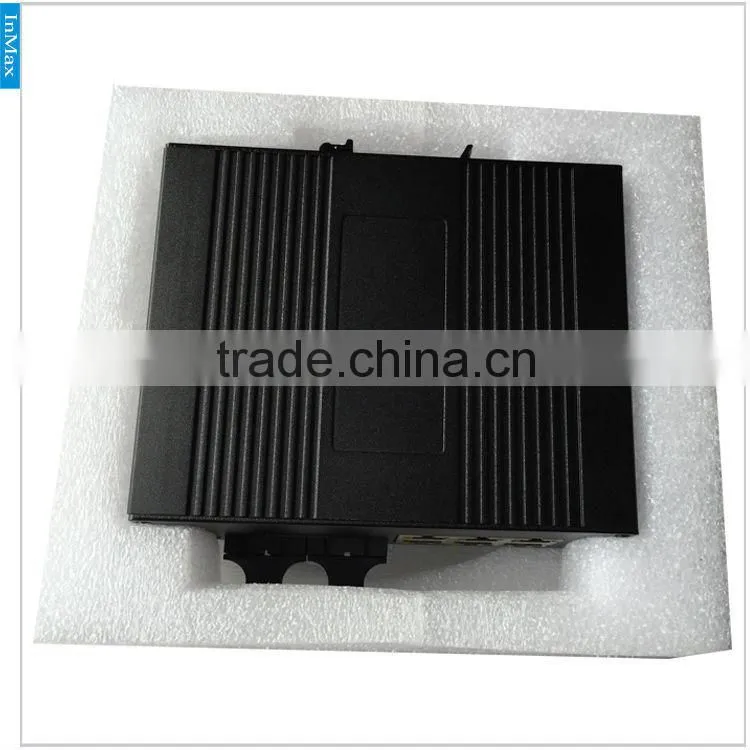

Managed network Switch, Layer 2 8 Port 100M Din-Rail IEC61850 Simple Optical fiber ethernet switch i608A
USD $1 - $220
/ Piece
1 Piece(Min.Order)
- 5000 Piece / Pieces per Month
- Shenzhen HK
- Credit Card
You May Like
-
S5720-36C-EI-28S Combination Configuration (28 Gigabit SFPs, 4 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
-
Huawei S5720-28X-SI-24S-AC (24 Gigabit SFPs, 8 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, AC powered, front maintenance)
-
S5731-S24P4X 24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, PoE+
-
S5720-56C-EI (48 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
-
S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
-
S5735-L32ST4X-A1 24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access
Product Details
| Products Status: | Stock | Ports: | Other, ≤ 8, 8 | Transmission Rate: | 10/100Mbps |
| Function: | LACP, QoS, SNMP, Stackable, VLAN Support, SNMP | Communication Mode: | Other, Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex | Certification: | RoHS, FCC, CE, RoHS |
| Brand Name: | InMax | Model Number: | i608A | Place of Origin: | Guangdong, China |
Product Description
| 6+2 Managed Industrial Ethernet Switch --- InMax i608A | |||
| Main Features | |||
| 6x10/100BaseTX ports+2x100BaseFX | |||
| InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy | |||
| SNMPv1/v2c/v3 for different levels of network management | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning | |||
| GMP snooping for filtering multicast traffic | |||
| Easy network management through web browser, CLI, Telnet /serial console, SNMP | |||
| Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs | |||
| Metal, IP40 protection,DIN-Rail mounting, wall mounting | |||
| Overview | |||
| The i608A series managed Industrial Ethernet switches are equipped with up to 8 Ethernet ports. Automatic alarm through E-mail, relay output. InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy. RSTP/STP can increase system reliability and your network availability. Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs. The super hardware reliability is especially suitable for industrial applications. | |||
| Features and Benefits | |||
| Easy network management through web browser, CLI, Telnet /serial console, SNMP | |||
| InMax Ring Protocol InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy | |||
| IGMP snooping for filtering multicast traffic | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning | |||
| QoS and ToS/DiffServ to increase determinism | |||
| Port Trunk for optimum bandwidth utilization | |||
| RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH | |||
| SNMPv1/v2c/v3 for different levels of network management | |||
| RMON for efficient network monitoring and proactive capability | |||
| Bandwidth management prevents unpredictable network status | |||
| Lock port function for blocking unauthorized access based on MAC address | |||
| Automatic alarm through e-mail, relay output | |||
| Specifications | |||
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.1D-2004 for STP IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for Flow Control | ||
| Protocols | IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Server/Client | ||
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 | ||
| Flow Control | IEEE 802.3x flow control, back pressure flow control | ||
| Switch Properties | |||
| Priority Queues | 4 | ||
| Max Number of Available VLANs | 256 | ||
| VLAN ID Range | VID 1 to 4094 | ||
| IGMP Groups | 256 | ||
| MAC Table Size | 8K | ||
| Packet Buffer Size | 1 Mbit | ||
| Interface | |||
| Fiber Ports | 100Base-FX (SC/ST/FC connector) | ||
| RJ45 Ports | 10/100BaseTX auto negotiation | ||
| Console Port | RS-232 (RJ45 connector) | ||
| Alarm Contact | 2 relay outputs with current carrying capacity of 1A@24V | ||
| LED | |||
| System Led | SYS | ||
| Port Led | Copper: Link 1~6, Act 1~6 ,Fiber: Link/ Act7,8 | ||
| Power Led | PWR | ||
| Power Requirements | |||
| Input Voltage | 24VDC (12 ~ 36VDC), redundant dual inputs | ||
| Input Current | InMax. <0.24A@24VDC,<6W | ||
| Overload Current Protection | Present | ||
| Reverse Polarity Protection | Present | ||
| Connector | 6-contact terminal blocks | ||
| Mechanical Properties | |||
| Housing | Metal, IP40 protection | ||
| Dimensions | 60.2 x 112.5 x 138.5 mm | ||
| Weight | 750g | ||
| Installation | DIN-Rail mounting, wall mounting | ||
| Environmental Limits | |||
| Operating Temperature | |||
| Standard Models | 0 to +60°C (32 to 140°F ) | ||
| Wide Temp. Models | -40 to +75°C (-40 to 167°F) | ||
| Storage Temperature | -40 to +85°C (-40 to 185°F ) | ||
| Ambient Relative Humidity | 5 to 95% (non-condensing) | ||
| Standards and Certifications | |||
| Safety | UL 60950-1 | ||
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A | ||
| EMS | EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5 | ||
| Shock | IEC 60068-2-27 | ||
| Freefall | IEC 60068-2-32 | ||
| Vibration | IEC 60068-2-6 | ||
| Warranty | |||
| Warranty Period | 5 years | ||
| Ordering Information | |||
| Available Models | Transceiver Type | Connector Type | Temperature Range |
| i608A | 2Km Dual-fiber MMF1310nm | SC/PC ST/PC FC/PC | -40°C to +85°C (-40 to 185°F ) |
| 20Km Dual-fiber SMF1310nm | |||
| 40Km Dual-fiber SMF1310nm | |||
| 60Km Dual-fiber SMF1310nm | |||
| 80Km Dual-fiber SMF1550nm | |||
| 120Km Dual-fiber SMF1550nm | |||
| 20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm | |||
