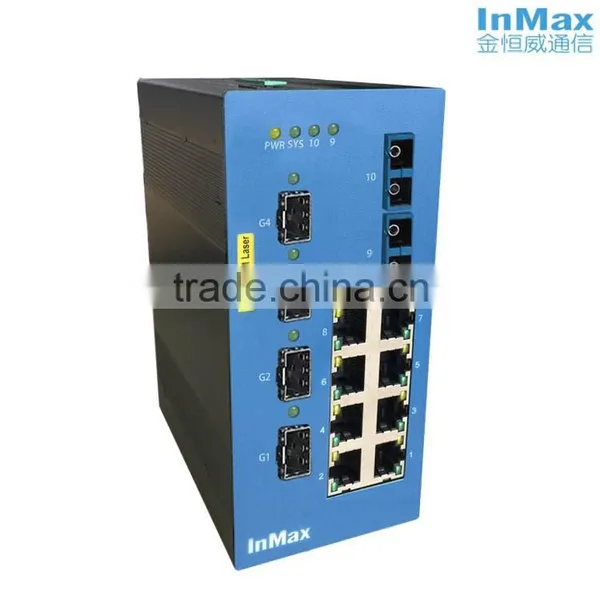

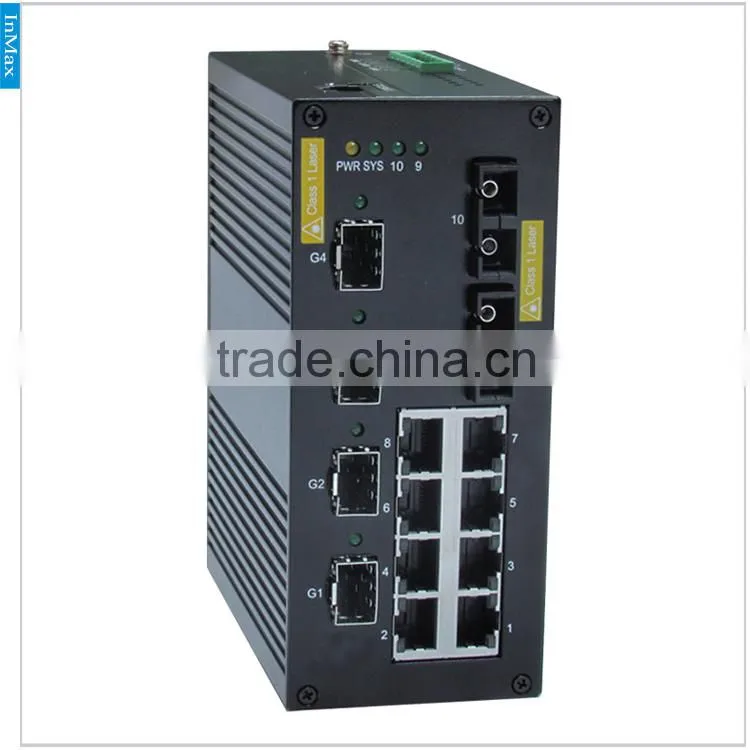

InMax I614A 8+2+4G Managed Industrial Ethernet Switches
US$ 460 - 480
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
i614A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
InMax I616A 16 Ports Managed Industrial Ethernet SwitchesNegotiableMOQ: 1 Piece -
8 Port Managed Industrial Network Switch I608AUS$ 1 - 220MOQ: 1 Piece
-
8 Port Switch for Intelligent Transportation, 2+6-Port Managed Gigabit Ethernet Switch I608AUS$ 1 - 220MOQ: 1 Piece
-
3 Gigabit SFP Port and 6x100M RJ45 Full-Duplex & Half-Duplex Managed Industrial Networking Switch InMax I609AUS$ 1 - 220MOQ: 1 Piece
-
5 Years Warranty 9 Port Gigabit Din-rail Managed Industrial Ethernet Switch for Wind Power I609AUS$ 1 - 220MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
i614A
| InMax i614A 8+2+4G Managed Industrial Ethernet Switch | |||
| Main Features | |||
| 8x10/100Base+2x100BaseFX+4x1000BaseX | |||
| InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy | |||
| SNMPv1/v2c/v3 for different levels of network management | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning | |||
| IGMP snooping for filtering multicast traffic | |||
| Easy network management through web browser, CLI, Telnet /serial console, SNMP | |||
| Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs | |||
| Metal, IP40 protection,DIN-Rail mounting, wall mounting | |||
| Overview | |||
| The i614A series managed Industrial Ethernet switches are equipped with up to 14 Ethernet ports. Automatic alarm through E-mail, relay output. InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy. RSTP/STP can increase system reliability and your network availability. Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs. The super hardware reliability is especially suitable for industrial applications. | |||
| Features and Benefits | |||
| Easy network management through web browser, CLI, Telnet /serial console, SNMP | |||
| InMax Ring Protocol InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy | |||
| IGMP snooping for filtering multicast traffic | |||
| Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning | |||
| QoS and ToS/DiffServ to increase determinism | |||
| Port Trunk for optimum bandwidth utilization | |||
| RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH | |||
| SNMPv1/v2c/v3 for different levels of network management | |||
| RMON for efficient network monitoring and proactive capability | |||
| Bandwidth management prevents unpredictable network status | |||
| Lock port function for blocking unauthorized access based on MAC address | |||
| Automatic alarm through e-mail, relay output | |||
| Specifications | |||
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.1D-2004 for STP IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for Flow Control |
||
| Protocols | IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Server/Client |
||
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
||
| Flow Control | IEEE 802.3x flow control, back pressure flow control | ||
| Switch Properties | |||
| Priority Queues | 4 | ||
| Max Number of Available VLANs | 256 | ||
| VLAN ID Range | VID 1 to 4094 | ||
| IGMP Groups | 256 | ||
| MAC Table Size | 8K | ||
| Packet Buffer Size | 1 Mbit | ||
| Interface | |||
| Fiber Ports | 100Base-FX (SC/ST/FC connector) 1000Base-X (SFP slot) |
||
| RJ45 Ports | 10/100BaseTX auto negotiation | ||
| Console Port | RS-232 (RJ45 connector) | ||
| Alarm Contact | 2 relay outputs with current carrying capacity of 1A@24V | ||
| LED | |||
| System Led | SYS | ||
| Port Led | Copper: Link 1~8, Act 1~8 ,Fiber: Link/ Act9,10,G1,G2,G3,G4 | ||
| Power Led | PWR | ||
| Power Requirements | |||
| Input Voltage | 24VDC (12 ~ 36VDC), redundant dual inputs | ||
| Input Current | InMax. <0.66A@24VDC,<16W | ||
| Overload Current Protection |
Present | ||
| Reverse Polarity Protection |
Present | ||
| Connector | 6-contact terminal blocks | ||
| Mechanical Properties | |||
| Housing | Metal, IP40 protection | ||
| Dimensions | 60.2 x 112.5 x 138.5 mm | ||
| Weight | 750g | ||
| Installation | DIN-Rail mounting, wall mounting | ||
| Environmental Limits | |||
| Operating Temperature | |||
| Standard Models | 0 to +60°C (32 to 140°F ) | ||
| Wide Temp. Models | -40 to +75°C (-40 to 167°F) | ||
| Storage Temperature | -40 to +85°C (-40 to 185°F ) | ||
| Ambient Relative Humidity |
5 to 95% (non-condensing) | ||
| Standards and Certifications | |||
| Safety | UL 60950-1 | ||
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A | ||
| EMS | EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5 |
||
| Shock | IEC 60068-2-27 | ||
| Freefall | IEC 60068-2-32 | ||
| Vibration | IEC 60068-2-6 | ||
| Warranty | |||
| Warranty Period | 5 years | ||
| Ordering Information | |||
| Available Models | SFP or Transceiver Type | Connector Type | Temperature Range |
| i614A | 2Km Dual-fiber MMF1310nm | SC/PC ST/PC FC/PC |
-40°C to +85°C (-40 to 185°F ) |
| 20Km Dual-fiber SMF1310nm | |||
| 40Km Dual-fiber SMF1310nm | |||
| 60Km Dual-fiber SMF1310nm | |||
| 80Km Dual-fiber SMF1550nm | |||
| 120Km Dual-fiber SMF1550nm | |||
| 20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm | |||
Dimensions
