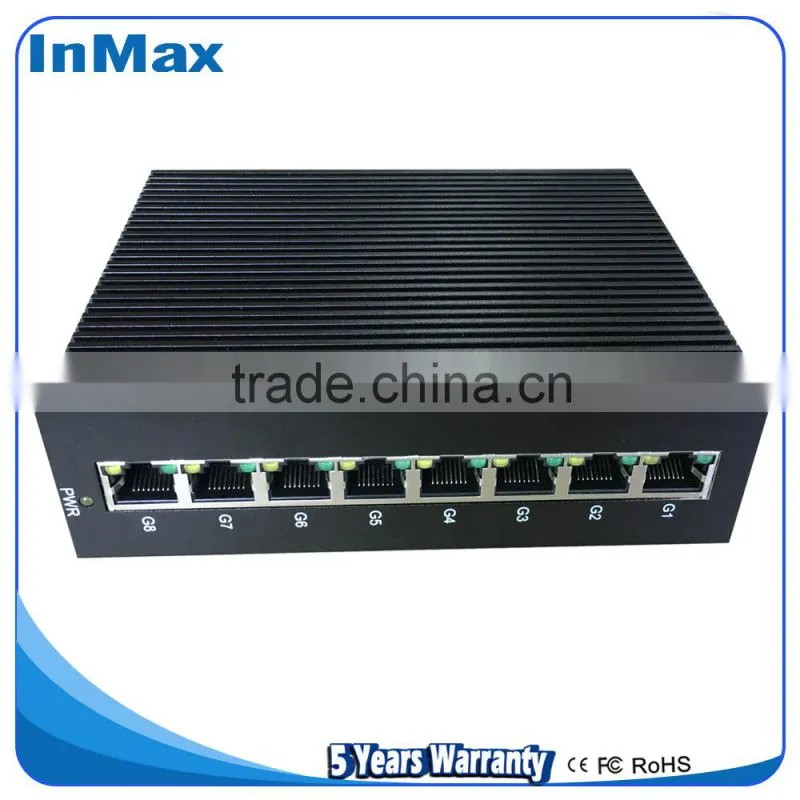

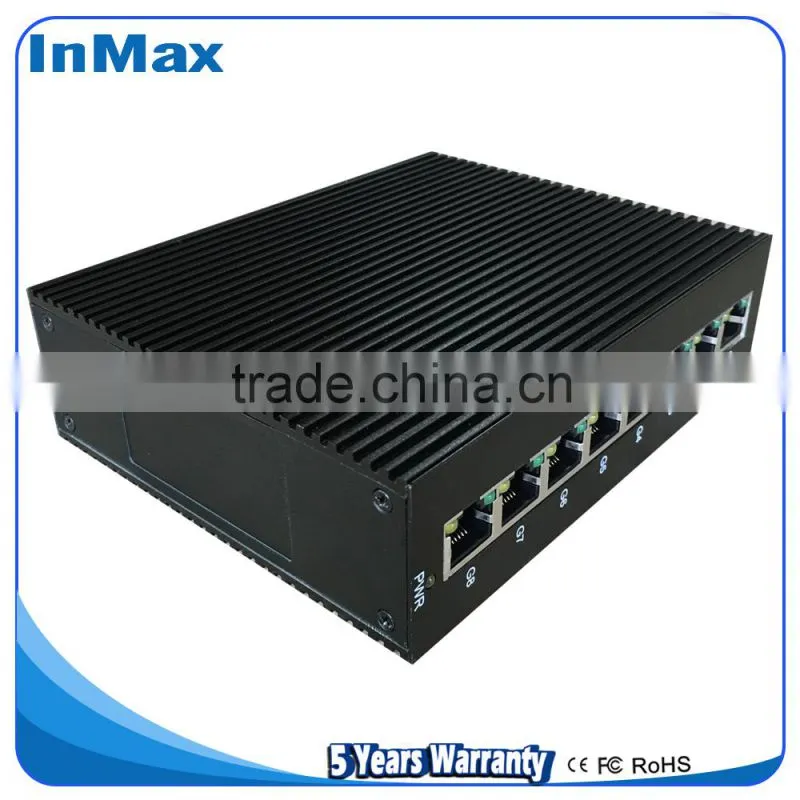

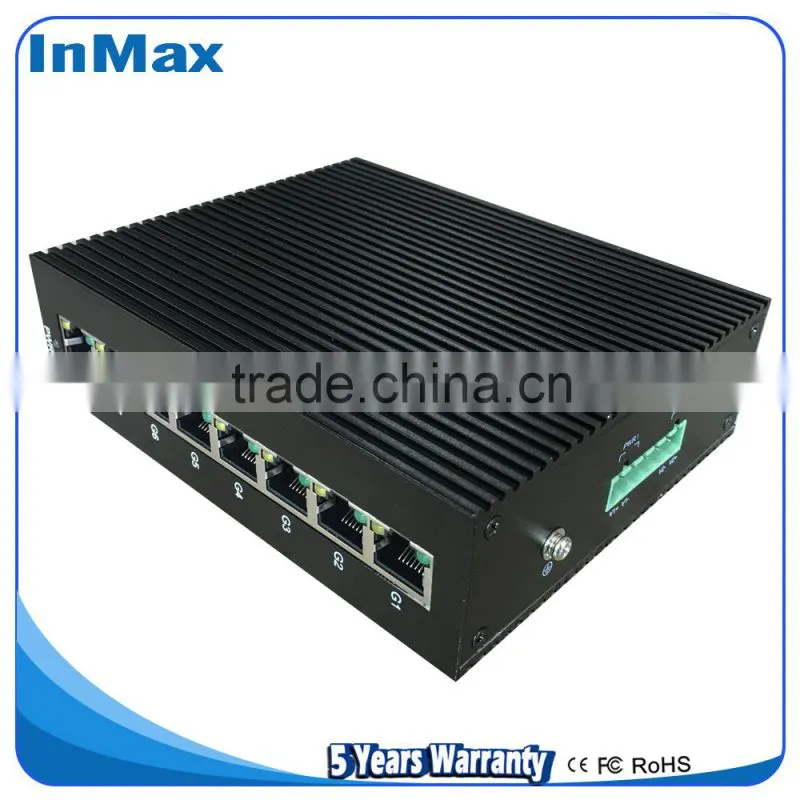

High Performance Full Gigabit 8 Port 8x10/100/1000MBase TX Industrial Ethernet Switch for Smart Grid I508A
US$ 1 - 199
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
i508A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Super Stability Full Gigabit 8 Port 8x10/100/1000MBase TX Industrial Ethernet Switch I508AUS$ 1 - 199MOQ: 1 Piece -
Full Gigabit 8 Port 8x10/100/1000MBase TX Industrial Ethernet Switch for Highway Monitoring I508AUS$ 1 - 199MOQ: 1 Piece
-
Full Gigabit 8 Port 8x10/100/1000MBase TX Industrial Ethernet Switch for IP Camera I508AUS$ 1 - 199MOQ: 1 Piece
-
Supply OEM 8 Port Full Gigabit 8x10/100/1000MBase TX Din-Rail Industrial Ethernet Switch I508AUS$ 1 - 199MOQ: 1 Piece
-
Full Gigabit 8 Port Network Switch 8x10/100/1000MBase TX Industrial Ethernet Switch I508AUS$ 1 - 199MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
i508A
i508A Full Gigabit Unmanaged Industrial Ethernet Switches
Features and Benefits
- with 8×10/100/1000BaseT(X) ports
- Redundant dual 12/24/48 VDC power inputs,Built-in over-current protection, Reverse connection protection
- -40 to 75℃ operating temperature range (WT models)
- No fan, low consumption, industrial design standard,industrial grade electronic components,environmental protection & lead-free production
- Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
- IP Rating up to IP40
- No packet lost in 72 hours full load traffic testing
Introduction
i508A Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 8 Gigabit Ethernet ports,making them ideal for applications that demand high bandwidth.
No Fan,Low Consumption design,Working function more steady,and No packet lost in 72 hours full load traffic testing.
It accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
| Standards | IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) | |
| IEEE 802.3ab for 1000BaseT(X) | |
| IEEE 802.3x for Flow Control | |
| IEEE 802.3az for Energy-Efficient Ethernet | |
| Flow Control | IEEE 802.3x Flow Control,Back Pressure Flow Control |
Switch Properties
| packet forwarding rate | 13.392Mpps |
| Processing Type | Store and Forward |
| MAC Table Size | 4 K |
| Jumbo Frame Size | 9720Byte |
| Backplane | 18G |
| Packet Buffer Size | 1.5Mbit |
Interface
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Full/Half duplex mode | |
| MDI/MDI-X connection | |
| LED | RJ45 Ports: Link G1~G8, Act G1~G8 |
| Power: PWR |
Power Requirements
| Connection | 1 removable 6-contact terminal block |
| Input Voltage | 12/24/48VDC(9.6 to 60VDC),Redundant Dual Inputs |
| No-load Power | 5W @ 24VDC |
| Full-load Power | 8W @ 24VDC |
| Redundant Dual Inputs | Present |
| Reverse Polarity Protection | Present |
| Over current protection | Present |
Physical Characteristics
| Housing | Hard aluminum alloy case |
| IP Rating | IP40 |
| Dimensions (W×H×D) | 41 × 153.5 × 128 mm |
| Weight | 575g |
| Installation | DIN-rail mounting, wall mounting |
Environmental Limits
| Operating Temperature | Standard Models: -25 to 60℃ (-13 to 140℉) |
| Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
| Storage Temperature | -40 to 85℃(-40 to 185℉) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Industrial standard
| EMI | FCC Part 15,CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD),Level 4 |
| EN61000-4-3 (RS),Level 3 | |
| EN61000-4-4 (EFT),Level 4 | |
| EN61000-4-5 (Surge),Level 4 | |
| EN61000-4-6 (CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Warranty
| Warranty Period | 5 years |
Ordering
| Product Model | Description |
| i508A |
with 8 10/100/1000BaseT(X) ports. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature |
| i508A-WT |
with 8 10/100/1000BaseT(X) ports. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature |
Dimension
