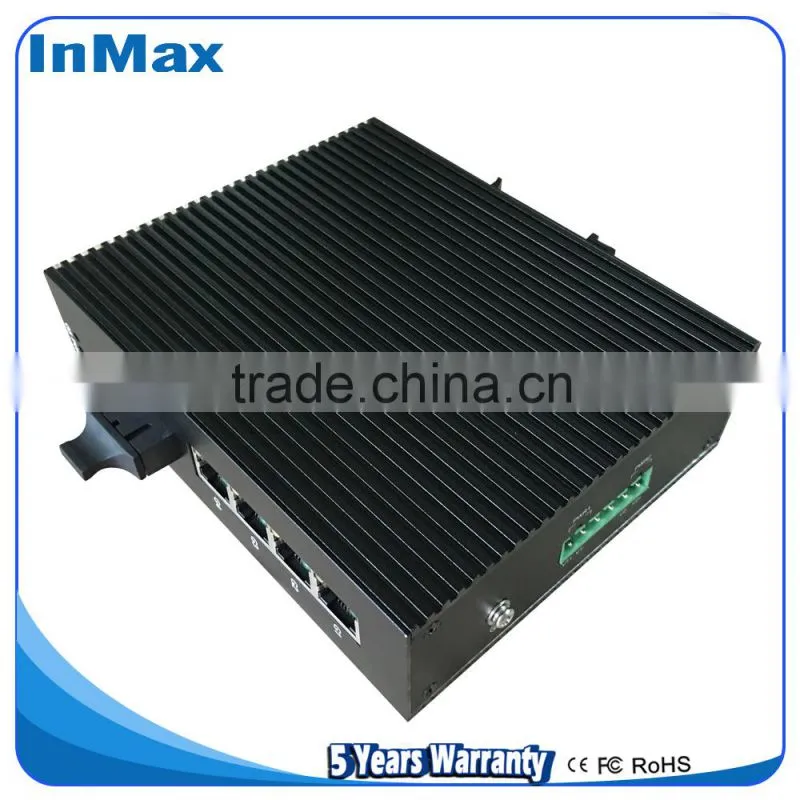

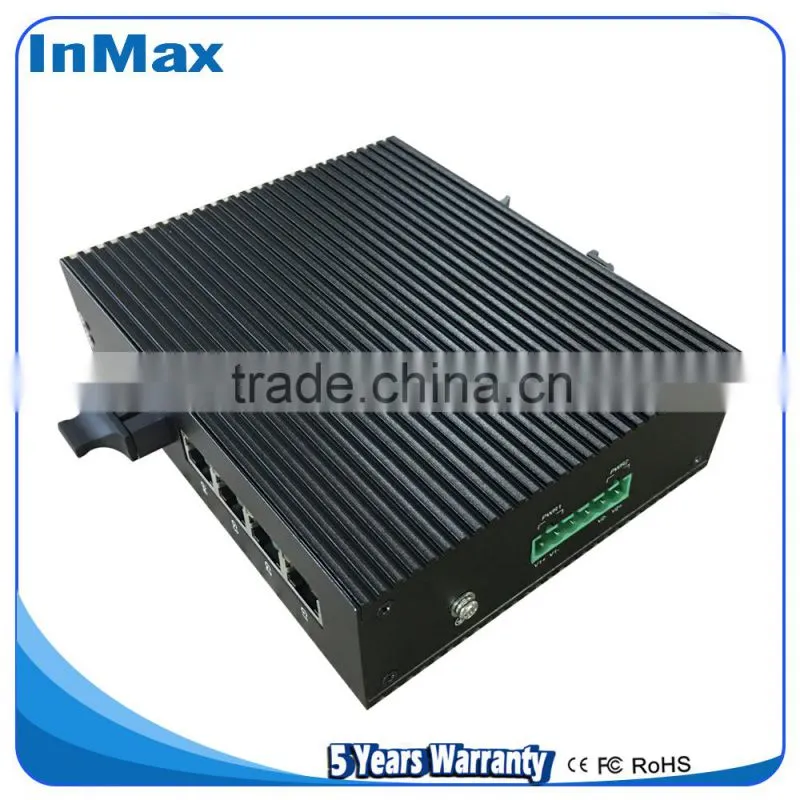

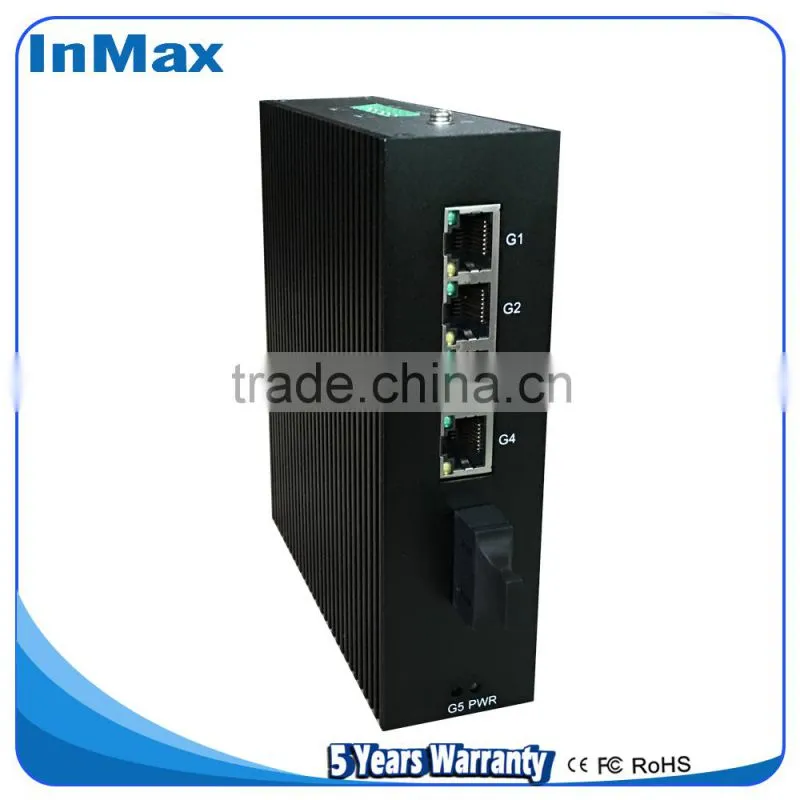

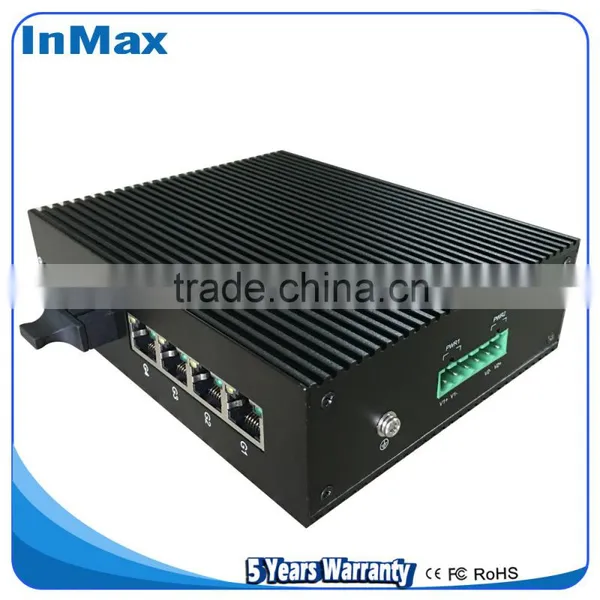

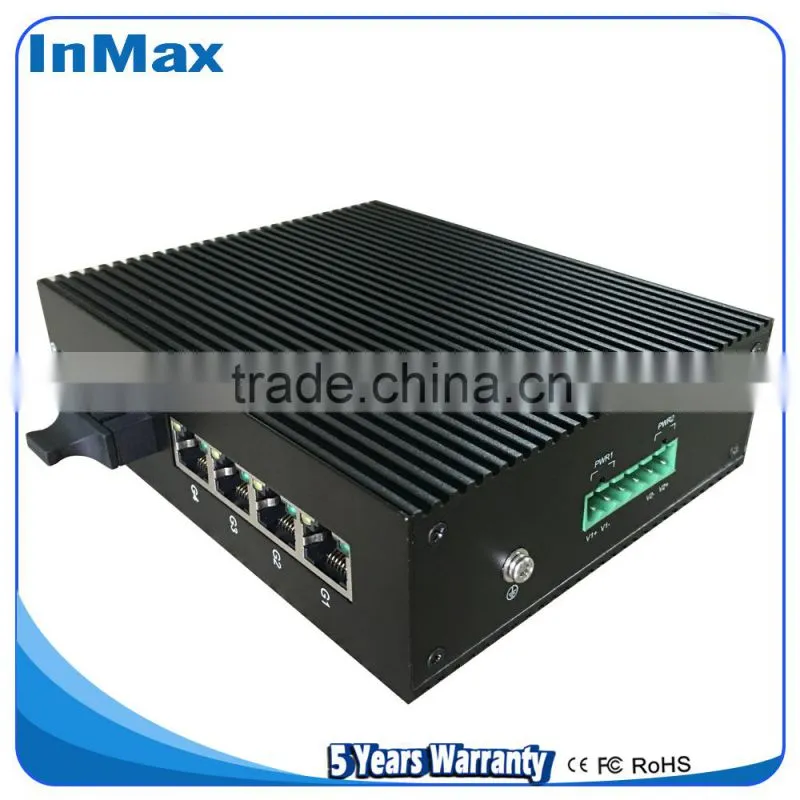

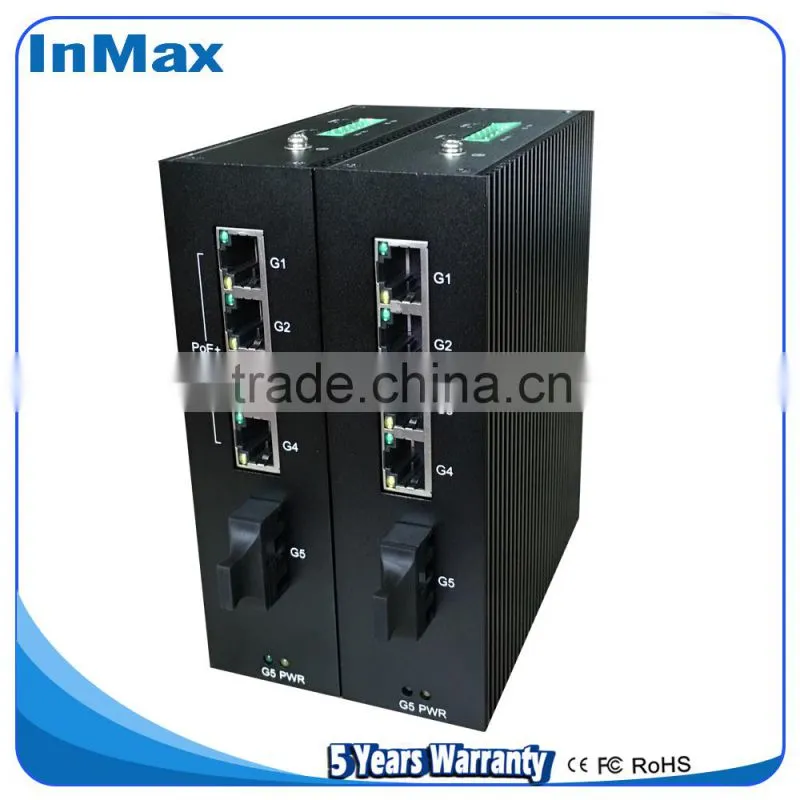

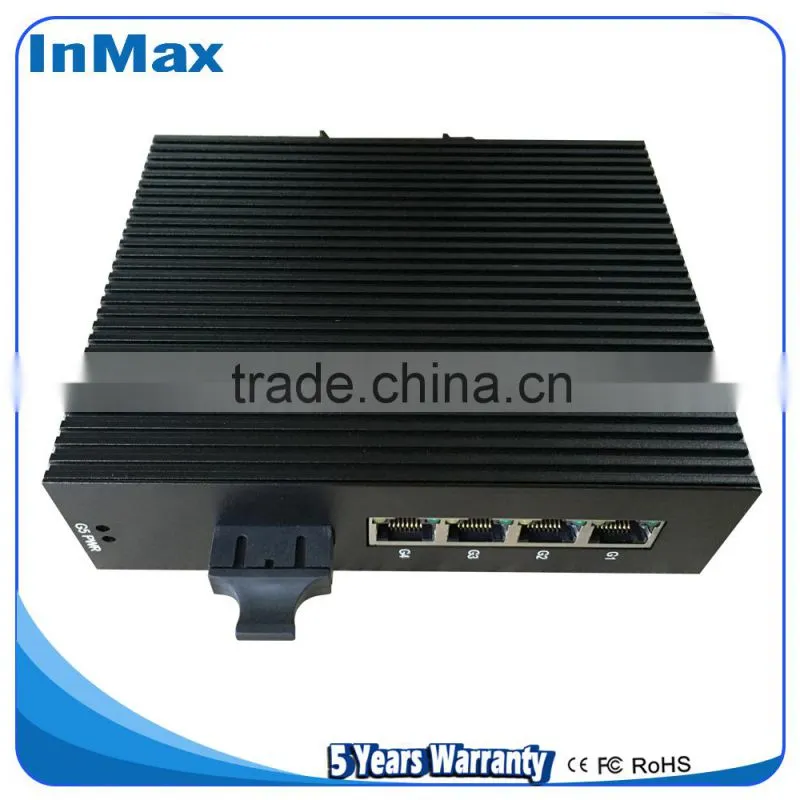

Good Price of 5 Port Full Gigabit Industrial Switch 1x1000BaseX FX Port and 4x10/100/1000BaseTx Ports Ethernet Switch I505B
US$ 1 - 199
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
i505B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Years Warranty Full Gigabit 1x1000BaseX FX Port and 4x10/100/1000BaseTx Ports Din-rail Industrial Ethernet Switches I505BUS$ 1 - 199MOQ: 1 Piece -
5 Ports Full Gigabit Industrial Network Switch 1x1000BaseX FX Port and 4x10/100/1000BaseTx Ports Din-rail Ethernet Switch I505BUS$ 1 - 199MOQ: 1 Piece
-
Full Gigabit 1x1000BaseX FX Port and 4x10/100/1000BaseTx Ports Din-rail Industrial Ethernet Switches for Rail Traffic I505BUS$ 1 - 199MOQ: 1 Piece
-
Factory Made 5 Port Full Gigabit 1x1000BaseX FX Port and 4x10/100/1000BaseTx Ports Din-rail Industrial Ethernet Switch I505BUS$ 1 - 199MOQ: 1 Piece
-
Digital Substation Full Gigabit 1x1000BaseX FX Port and 4x10/100/1000BaseTx Ports Din-rail Industrial Ethernet Switches I505BUS$ 1 - 199MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
i505B
i505B Full Gigabit Unmanaged Industrial Ethernet Switches
Features and Benefits
- with 4×10/100/1000BaseT(X) ports,and 1×1000BaseX port
- Redundant dual 12/24/48 VDC power inputs,Built-in over-current protection, Reverse connection protection
- -40 to 75℃ operating temperature range (WT models)
- No fan, low consumption, industrial design standard,industrial grade electronic components,environmental protection & lead-free production
- Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
- IP Rating up to IP40
- No packet lost in 72 hours full load traffic testing
Introduction
i505B Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 5 Gigabit Ethernet ports,and up to 1 fiber optic port,making them ideal for applications that demand high bandwidth.
No Fan,Low Consumption design,Working function more steady,and No packet lost in 72 hours full load traffic testing.
It accords with FCC, CE,RoSE standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
| Standards | IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) | |
| IEEE 802.3ab for 1000BaseT(X) | |
| IEEE 802.3x for Flow Control | |
| IEEE 802.3z for 1000BaseX | |
| IEEE 802.3az for Energy-Efficient Ethernet | |
| Flow Control | IEEE 802.3x Flow Control,Back Pressure Flow Control |
Switch Properties
| packet forwarding rate | 8.928Mpps |
| Processing Type | Store and Forward |
| MAC Table Size | 1 K |
| Jumbo Frame Size | 10Byte |
| Backplane | 12G |
| Packet Buffer Size | 1Mbit |
Interface
| Fiber Ports | 1000BaseX 1×9 Optical Transceiver |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Full/Half duplex mode | |
| MDI/MDI-X connection | |
| LED | RJ45 Ports: Link G1~G4, Act G1~G4 |
| Fiber Ports: Link/Act G5 | |
| Power: PWR |
Power Requirements
| Connection | 1 removable 6-contact terminal block |
| Input Voltage | 12/24/48VDC(9.6 to 60VDC),Redundant Dual Inputs |
| No-load Power | 5W @ 24VDC |
| Full-load Power | 8W @ 24VDC |
| Redundant Dual Inputs | Present |
| Reverse Polarity Protection | Present |
| Over current protection | Present |
Physical Characteristics
| Housing | Hard aluminum alloy case |
| IP Rating | IP40 |
| Dimensions (W×H×D) | 41 × 153.5 × 128 mm |
| Weight | 570g |
| Installation | DIN-rail mounting, wall mounting |
Environmental Limits
| Operating Temperature | Standard Models: -25 to 60℃ (-13 to 140℉) |
| Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
| Storage Temperature | -40 to 85℃(-40 to 185℉) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Industrial standard
| EMI | FCC Part 15,CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD),Level 4 |
| EN61000-4-3 (RS),Level 3 | |
| EN61000-4-4 (EFT),Level 4 | |
| EN61000-4-5 (Surge),Level 4 | |
| EN61000-4-6 (CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Warranty
| Warranty Period | 5 years |
Ordering
| Product Model | Description |
| i505B |
With 4 10/100/1000BaseT(X) ports,and 1 1000BaseX 1×9 Optical Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature |
| i505B-WT |
With 4 10/100/1000BaseT(X) ports,and 1 1000BaseX 1×9 Optical Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature |
Dimension
