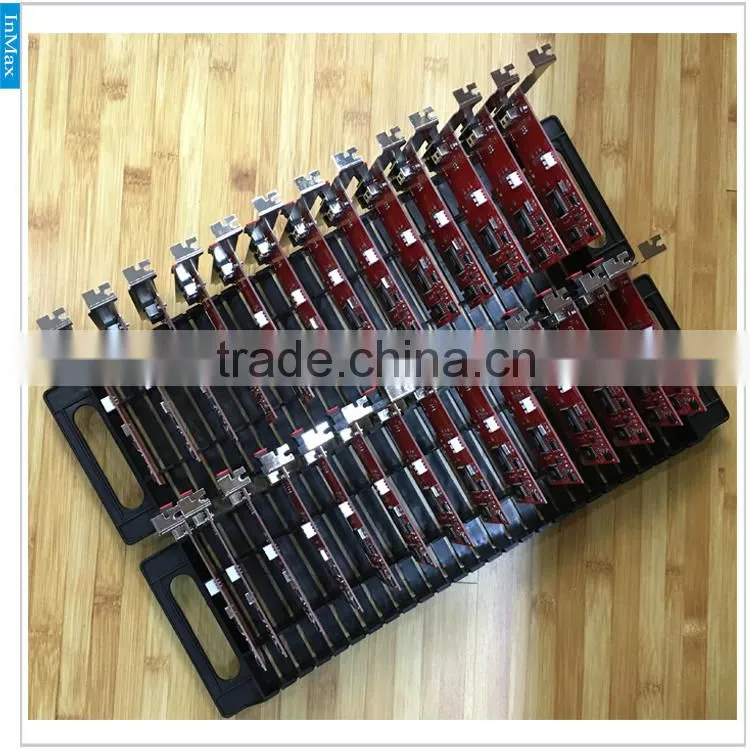

100M PCI Plastic Optic Fiber POF Optical NIC
US$ 60 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
InMax1001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber NIC, 1000Mbps Optical Gigabit Ethernet Adapter, LC or SCUS$ 60 - 100MOQ: 1 Piece -
Fiber NIC With 1000Mbps, Fiber Ethernet Card LC or SC, InMax 1101US$ 60 - 100MOQ: 10000 Pieces
-
PCI 100Mbps Fiber Optic Nic Pof Optical Nic InMax Fiber NICUS$ 60 - 100MOQ: 1 Piece
-
InMax 1101 1000Mbps Optical Gigabit Ethernet AdapterUS$ 60 - 100MOQ: 10000 Pieces
-
InMax 1101 Fiber NIC 1000MbpsUS$ 60 - 100MOQ: 10000 Pieces
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
InMax1001

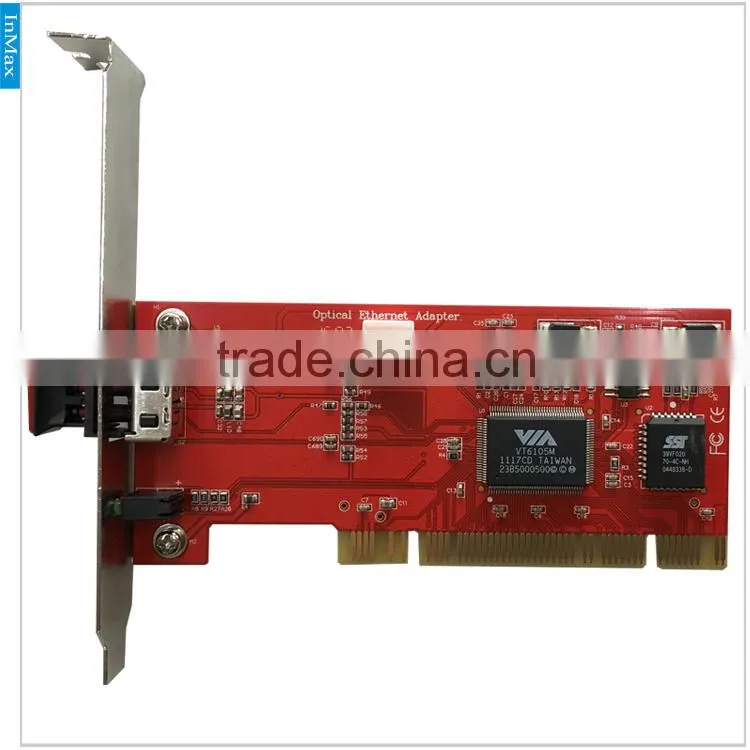

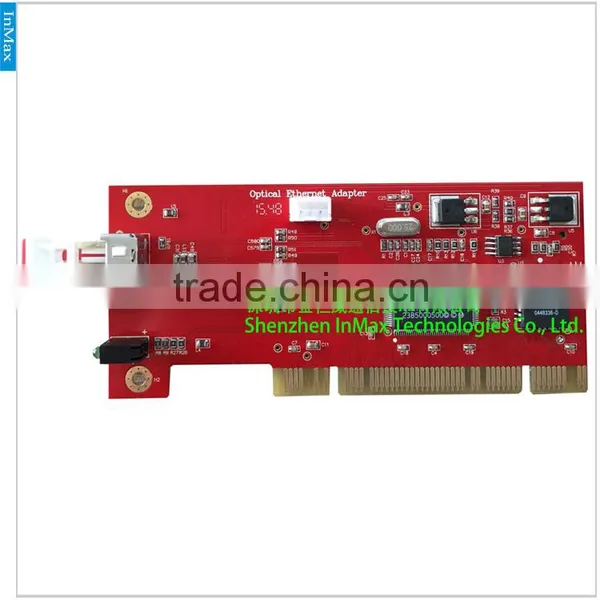

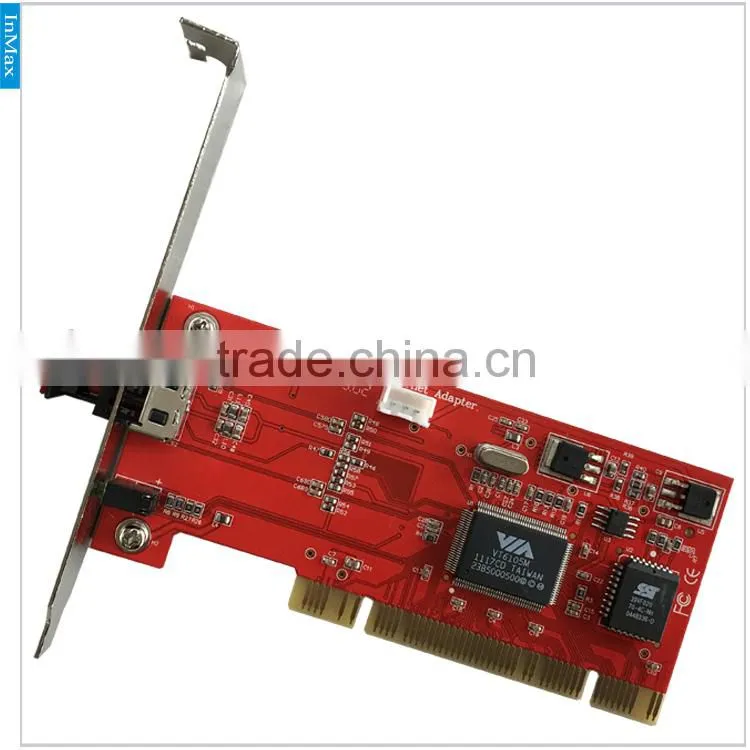

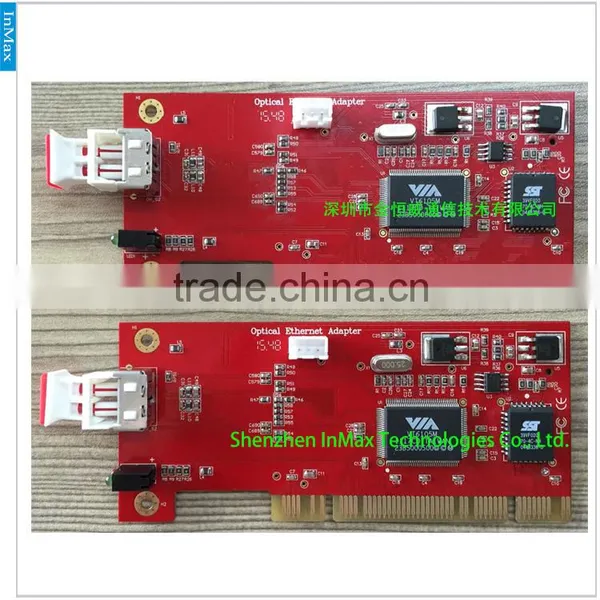

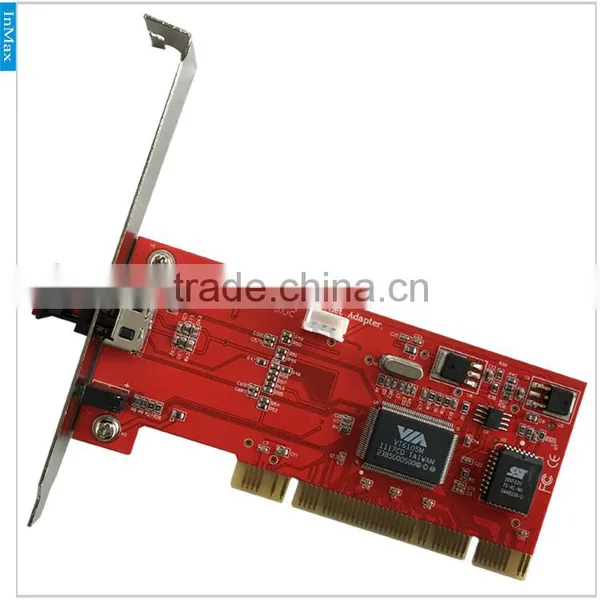

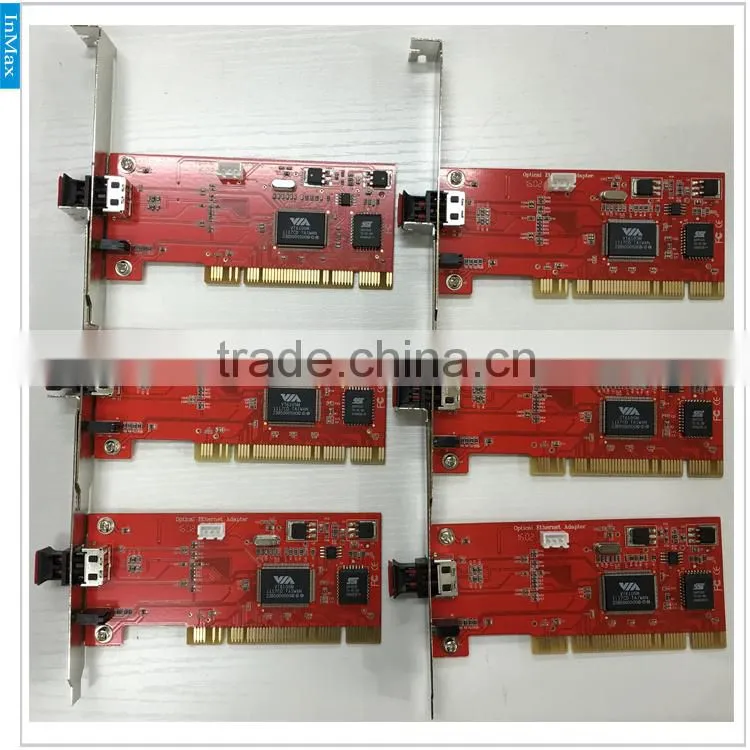

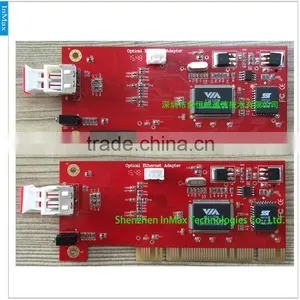

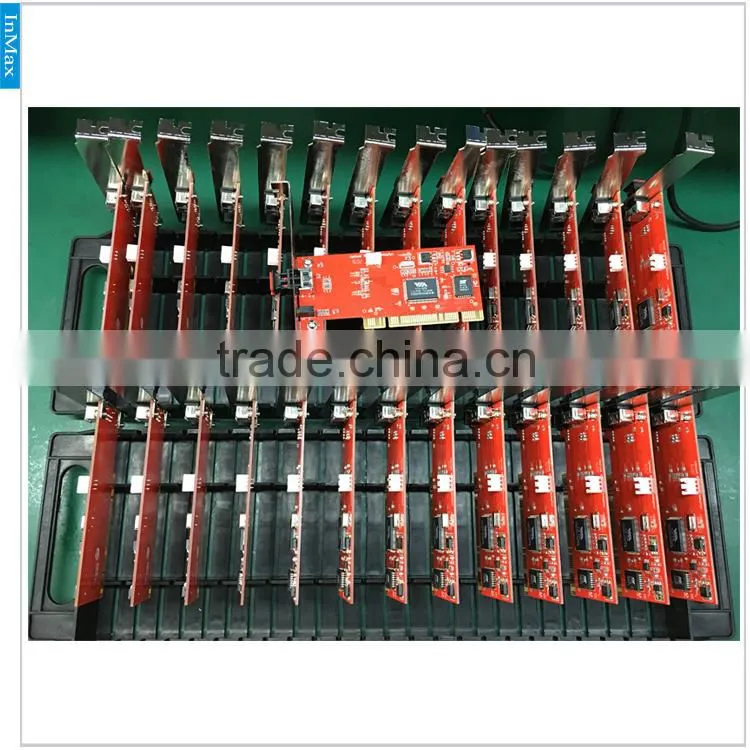

InMax 1001 PCI Bus Plastic Optical Fiber Ethernet Adapter
InMax 1001 PCI Bus Plastic Optical Ethernet adapter is designed to operate at 100Mbps and to provides a network throughput of 200Mbps in full-duplex mode. It offers a range of options, such as fiber / connector type and operating wavelength / distance, to meet the requirement of various applications.
Features
- Plug and Play installation.
- Complies with the IEEE 802.3u 100Base-FX / IEEE 802.3ah 100Base-LX10 / -BX10 Ethernet standard.
- Standard optical fiber connector and cable type options.
- Full duplex or half-duplex operation.
- PCI Bus Master direct memory access for high throughput and low CPU utilization.
- IEEE 802.3x Flow Control enabled with full duplex operation, allowing enhanced operation when directly connected to a switch.
- IEEE 802.1Q/VLAN Tagging supported
- VLAN registration using IEEE802.1Q GVRP standard
- IEEE 802.1p Tagging supported
- IP Multicast packet filtering reduces CPU utilization and conserves network bandwidth.
- Large 2Kb Tx, 2Kb Rx FIFO buffers synchronize transmissions and buffer data to help prevent packet loss.
- Two LED indicators: Link/RxAct, Power/TxAct.
- Drivers for all leading Network Operating Systems.
Software Drivers
- Microsoft Windows 95, 98, 98 SE
- Microsoft Windows 2000
- Microsoft Windows XP
- Microsoft NT 3.51 / 4.0
- Microsoft Windows for Workgroups 3.11
- Microsoft Windows CE.NET 4.0 / 4.2
- Microsoft Client for DOS
- NDIS 2 driver
- NDIS 3 driver
- NDIS 4 driver
- NDIS 5 driver
- Novell NetWare Client for DOS
- Novell NetWare Client 32 for DOS
- Novell NetWare Server 3.12, 3.2, 4.11, 4.2, 5.0, 5.1
- ODI for DOS driver
- 32 bit ODI LAN driver
- NCSA
- FTP PC/TCP
- SCO Open Server 5.0.x
- RPL boot ROM
- PXE Boot ROM
- DMI Driver
Specifications
Optical Interface: Optical Ethernet 100Base-FX
- Single single-mode fiber, single wavelength 1310nm, single SC/PC connector, operating distance 15km.
- Single single-mode fiber, dual wavelength 1310 / 1550nm, single SC/PC connector, operating distance 40km.
- Dual single-mode fiber, single wavelength 1310nm or 1550nm, dual SC/PC connectors, operating distance 60km.
- Dual multimode fiber, single wavelength: 1310nm, dual SC/PC connectors, operating distance 2km
Host interface: PCI 2.1 Bus (Bus Master)
Physical Dimensions: 12.0 cm x 5.3 cm
Environment:
- Storage: -25° ~ 55°C (-13° ~ 131°F)
- Operating: 0° ~ 50°C (32° ~ 122°F)
- Humidity: 10% to 90% non-condensing
- Power Consumption: 2 Watts max.
