Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female

Name: Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female
Brand: CNLINKO
SKU: 134393827
Availability: InStock

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female thumbnail-1

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female thumbnail-2

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female thumbnail-3

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female thumbnail-4

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female photo-1

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female photo-2

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female photo-3

Made in China Waterproof Male Female Speaker Connector Speakon Plug Jack Speakon Female photo-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CNLINKO

Model Number:

YF-24-C03PE-01-001,YF-24-J03SX-01-001

Contact Supplier Request Quote Chat Now

Shenzhen Linko Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CNLINKO

Model Number YF-24-C03PE-01-001,YF-24-J03SX-01-001

Type XLR

Application Power

Gender Other, male and female

Made in china waterproof male female speaker connector speakon plug jack Speakon Female

Product Description

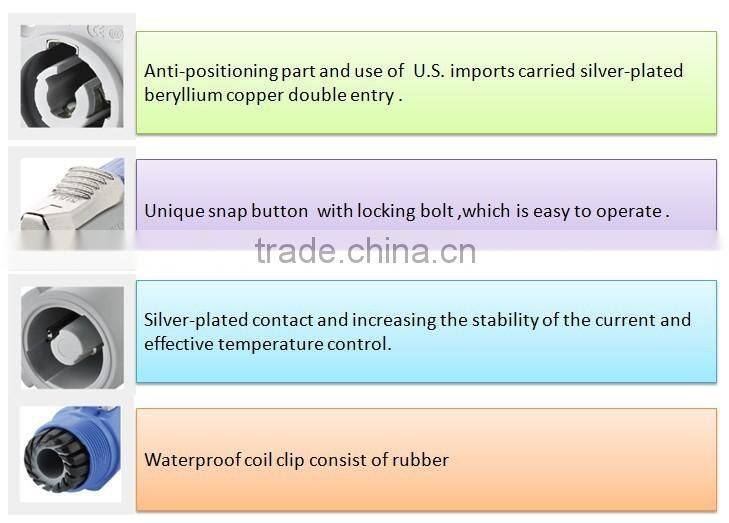

YF series connectors,because of its unique locking bolt,which is easy to operate and has a unique blue-gray separable power input and output,so effectively distinguish device input and output ports and a power coupling,both portable terminals transform at same time and make it more flexibility.Widely used in Audio,video and power equipment.

1.Locking 3-pin connector of the device,with contacts for the middle,straight,pre-adaptation safety ground.

2.High current capacity 20A/250VAC.

3.The use of different colors(blue line)input and output(output gray)control,to avoid the possibility of inverworking.

4.Fast and easy locking system

5. IP44 and IP65-way choice.

6.20A rms rated current

7.Unique copper core needle anti prolapse design.

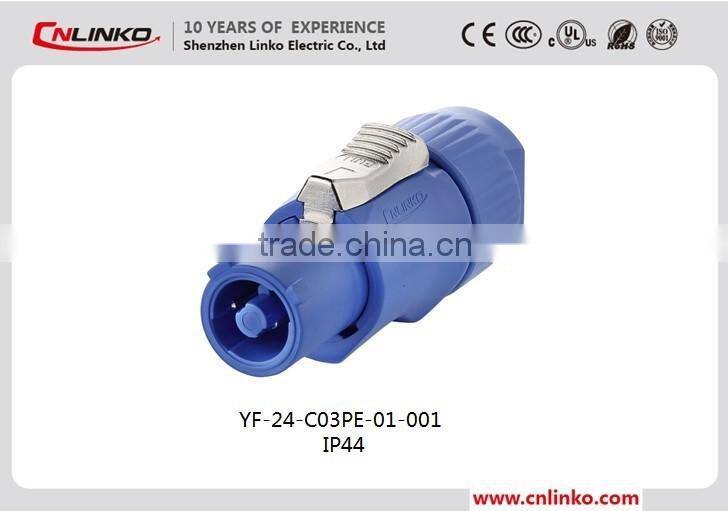

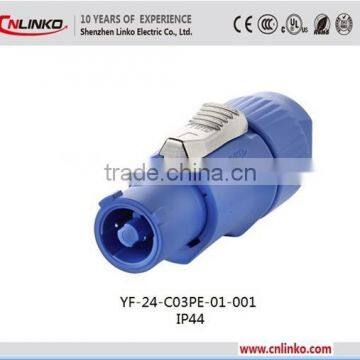

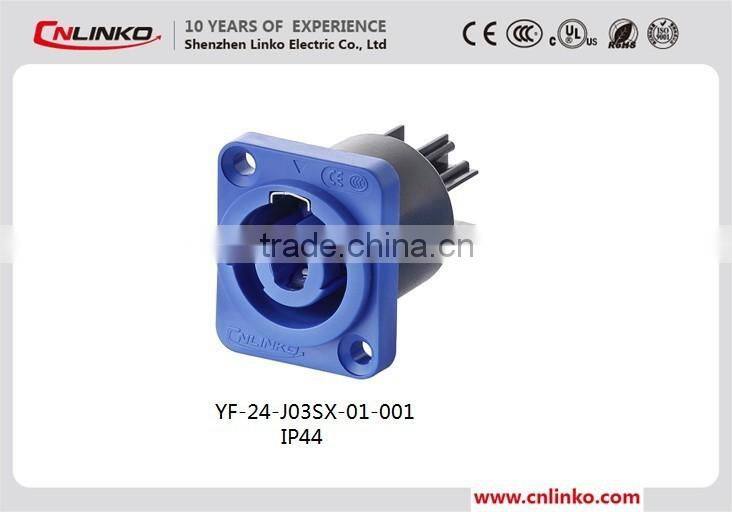

YF-24-C03PE-01-001,YF-24-J03SX-01-001
Specifications:
Connecting mode:	Latching lock
Protection level:	IP65
Cable specification:	2.5mm2~ 4mm2 /14~12 AWG
Diameter range:	Φ8mm ~ Φ12mm
Contact diameter×Qty:	Φ2.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating &unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder & lock screw
Flammability rating	UL94-V0
Temperature rise:	20A contact temperature below 30°C, 25A contact temperature below 40°C, 30A contact temperature below 50°C
Material:
Shell &insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and water (IP65)
- Vibration resistance,impact resistance,stretching resistance
- plug/ unplug for more than 500 times
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping

Normally, our price is based on our box packing.

Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model

Delivery Detail: 7-10 working days after received deposit .

You may choose our shipping partner or your own partner .

100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.

Supply OEM service .

We have professional quality control system and R&D department to strictly manufacture each product.

100,000 pcs per month .

National level laboratory , and have flexible production line, to make quick action to urgent customized needs.

We will supply the best service to you . Anything ,please feel free to contact us at:

Cellphone: 0086-18312450169 Skype: cnlinko01
