2015 Hot UL Approved Waterproof Powercon Connectors for Power LED
Negotiable
MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CNLINKO
Model Number:
YF-24-C03PE-02-002,YF-24-J03SX-02-002
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Hot Sale Watertight Bayonet 2 Male Pin ConnectorUS$ 5 - 5.2MOQ: 100 Sets -
Manufacture UL Approved IP65 Waterproof 3 Pin Cable Connector for LEDNegotiableMOQ: 100 Sets
-
Top Manufacture Provide IP65 4 Pins Circular Waterproof ConnectorNegotiableMOQ: 100 Sets
-
Made in China 2pin Cable Power Connector Manufacturers IP 67 Waterproof Connector Coaxial ConnectorNegotiableMOQ: 10 Sets
-
Made in China Waterproof Automobile Connectors Electrical Connector Cable Connector TypesUS$ 2 - 3MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
CNLINKO
Model Number
YF-24-C03PE-02-002,YF-24-J03SX-02-002
Type
XLR
Application
Other, Audio & Video
Gender
Other, male and female, male with female
Specifications
1.UL CE,CCC,CUL,RoHs,2.IP65/IP68
3.High performance engineering plastics.
petitive price,100% high opinion

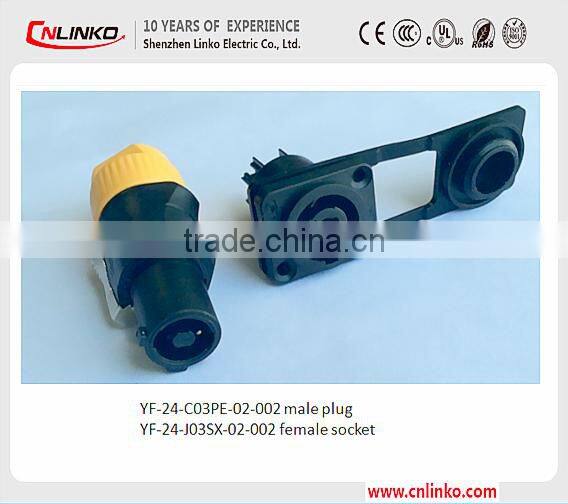

2015 hot UL approved waterproof powercon connectors for power LED
Product Description
1.Lockable 3 pole equipment (AC) power connector with contact for cable, neutral and premating safty.
2.Colour couled for easy identification
3.Fast and easy locking system
4.New lock design for easier handling and secure locking
| YF-24-CJ03E-02-002 | |
| Connecting mode: | Latching lock |
| Protection level: | IP65/68 |
| Wire gauge: | 14~12 AWG |
| Contact diameter×Qty: | Φ2.0*3 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <3mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~85°C |
| Method of connecting cable: | Soldering |
| Prohibited to charged inserted | |
| Material | |
| Shell&insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Contact socket: | Phosphor bronze(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out the | |
| Application industries: | |
| - Stage equipment | -The smart grid |
| - Medical equipment | -Server |
| -Solar energy equipment | -Ship equipment |
| -Electric power equipment | -Vehicle equipment |
| -Communications equipment | -Heavy machinery |
Packaging & Shipping
Package Term:
- 10pcs to a box, 40 boxes to a carton.
- Customized packing is welcome , MOQ of printing customized box is 3000 pcs/model.
Payment Term:
- Qty below 3000 pieces, 100% T/T in advance is required after confirming the order.
- Qty above 3000 pieces, we allow 30% T/T in advance, 70% of the balance against the copy of B/L.
- Western Union is available for trial order or small qty
Delivery Term:
- You may choose our shipping partner or your own partner.
- Delivery Detail: 1-7 working days after received deposit
Our Services
Quality Guaranteed:
UL,CE , ROHS, CCC, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
Supply Ability:
- 200,000 pcs per month
- We open the mould by ourselves. With a National level laboratory , and have flexible production line, to make quick action to urgent customized needs. Company Information
