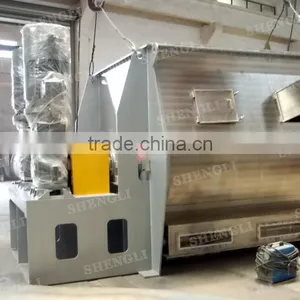

Help CenterStainless Steel Horizontal Paddle Mixer
Related Products
-
1000L Double Paddle MixerUS$ 2,000 - 40,000MOQ: 1 Set -
Paddle Mixer for Battery IndustryUS$ 2,000 - 50,000MOQ: 1 Set
-
Paddle Mixer for Pesticide PowderUS$ 2,000 - 4,000MOQ: 1 Set
-
Twin Paddle Mixer for Active CarbonUS$ 2,000 - 40,000MOQ: 1 Set
-
Paddle Mixer for Ceremic PowderUS$ 2,000 - 50,000MOQ: 1 Set

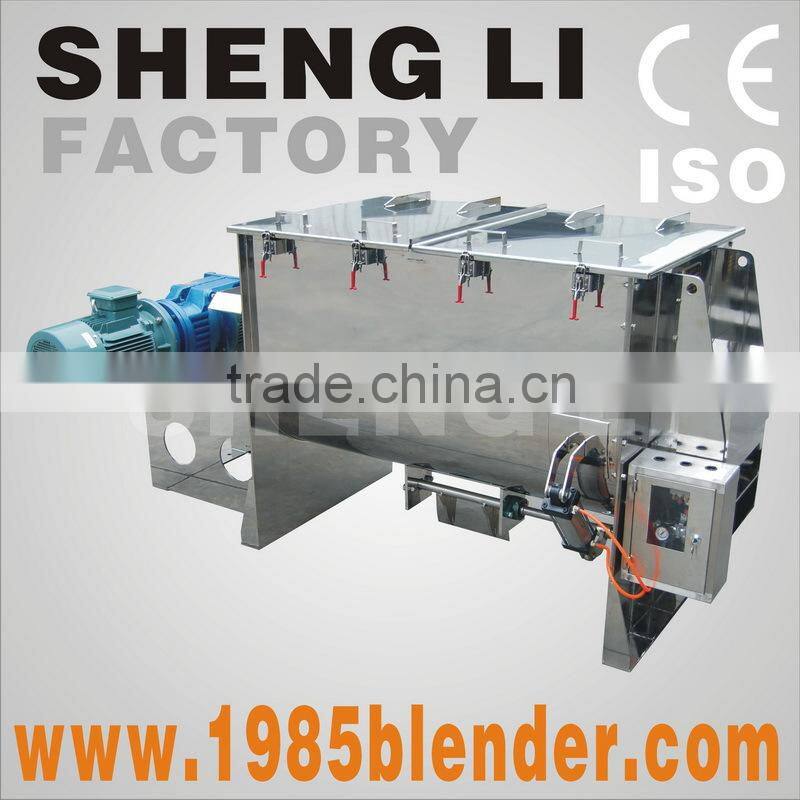

Horizontal ribbon mixer :
A. Features:
1. Ribbon Mixer
2. CE, ISO, SGS, BV approved;
3 .Wide application in: Powder and liquid mixing, like Food, Pharmaceutics; Agriculture; Dyestuff; Chemicals;
B. General Introduction:
Ribbon mixer is characterized by high mixing precision, and wide application to food, chemical industries, and building lines. The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit!!

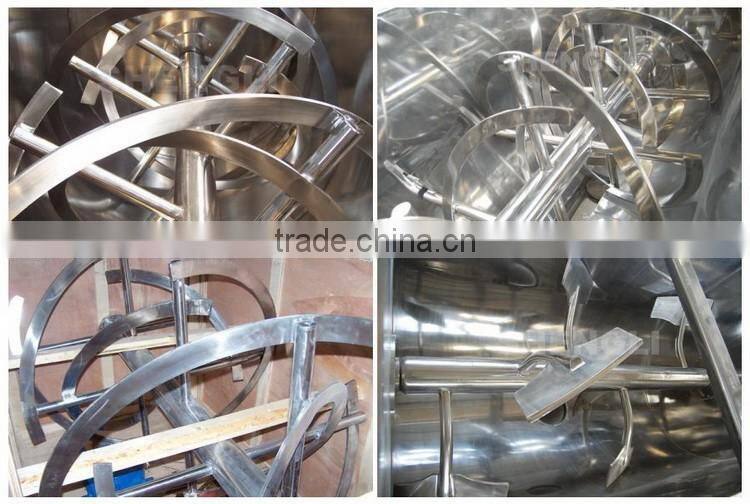

Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time!
Our ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. Besides, all of our powder mixer can tolerate about 10% liquid additives! We will add spraying or atomizing unit inside the tank!
/watch?v=18ypfMT7Rvo
c:Data sheet
| specification | LHY-0.3 | LHY-0.5 | LHY-1 | LHY-2 | LHY-3 | LHY-4 | LHY-5 | LHY-6 | LHY-8 | LHY-10 | LHY-15 | LHY-20 | LHY-30 | |
| wrking capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 | 9 | 12 | 18 | |
working capacity(kg) |
|
200 |
300 | 600 | 1200 | 1800 | 2500 | 3000 | 3600 | 4800 | 6000 | 9000 | 12000 | 15000 |
| speed (r/min) | 62 | 62 | 49 | 33 | 33 | 27 | 27 | 27 | 22 | 14 | 14 | 14 | 12 | |
| power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | |
| weight | 600 | 900 | 1200 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 | 6000 | 7500 | 10500 | 13000 | |
| Length | 2280 | 2670 | 3140 | 3860 | 4460 | 4950 | 5280 | 5530 | 5100 | 5610 | 5820 | 6300 | 7000 | |
| width | 680 | 780 | 980 | 1200 | 1300 | 1400 | 1550 | 1560 | 1720 | 1750 | 2000 | 2350 | 2600 | |
| Height | 880 | 1240 | 1400 | 1650 | 1700 | 2000 | 2100 | 2200 | 2500 | 2650 | 2900 | 3160 | 3350 |
D. Standard configuration:
1. Drive Unit: Cycloid reducer or gear reducer
2. Motor brand: Siemens (made in China)
3. Gear box brand: Chinese Famous brand (Huaxing)
4. Bearings: Chinese Famous brand
5. Discharging valve: pneumatic flap valve (no dead angle when mixing).
6. Main Shaft Seal
Air-purged seal and stuffing seal for powder material
Mechanical seal for liquid material
7. Voltage and Hz
380V 3Phases 50hz or in accordance with it in the using place
8. Top Cover
Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers
9. Normal duty type: start the mixer first and then load the material
10.Packing in pallet or wooden case
E. Additional configuration:
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so on
2. Bearings: NSK/TNT and so on
3. Heating/cooling jacket
4. Spraying system
5. Heavy duty type ( loading your material into the mixer first and then start the mixer)
6. Platform: we build the platform for you or we design it and you build it locally
7. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
Customizing according to client’s specific requirement
F: major parameters for technology selection
1. powders name and character (mesh and density)
2. output per batch
3. stainless 304/316L or carbon steel
4. the electrical enviroment in machine's using place
G: mixers need to be customized according to the different cases, the cases are as below:
1. Agglomerated material larger than 5mm is contained in the raw material
2. Bulk density of the raw material bigger than 3kg/l
3. Materials that are easy to get damp and not allowed to be exposed to the atmosphere, the mixer need to be vacuumized or negative pressure
4. Fill compressed air to the mixer barrel, and keep the pressure
5. Material with a large friction coefficient, mixer need to do a special Wear-resistant surface treatment
6. Material is not allowed to contact with the metal surface during mixing process
7. Mixer need to be heated up to 200 Celsius degree
8. Heavy duty (loading material into mixer before turning on it) is required.

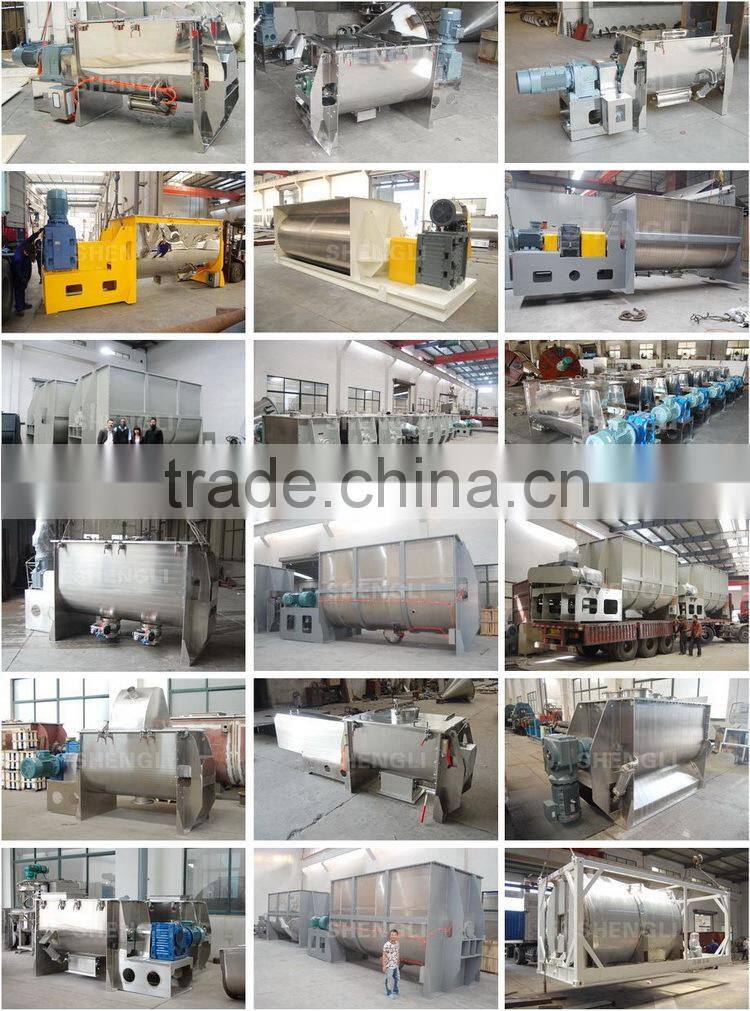

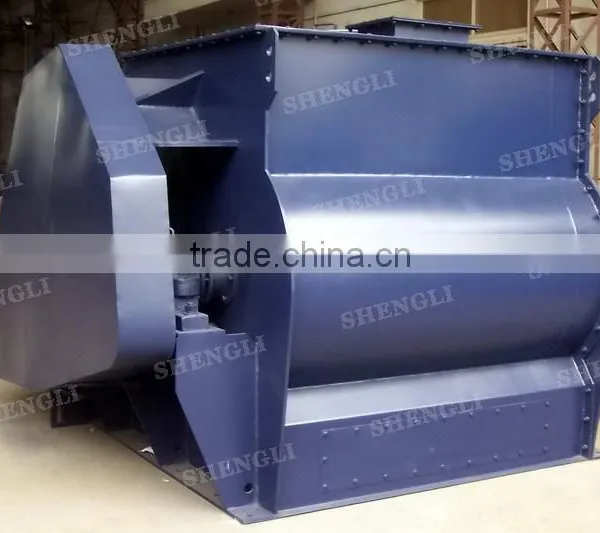

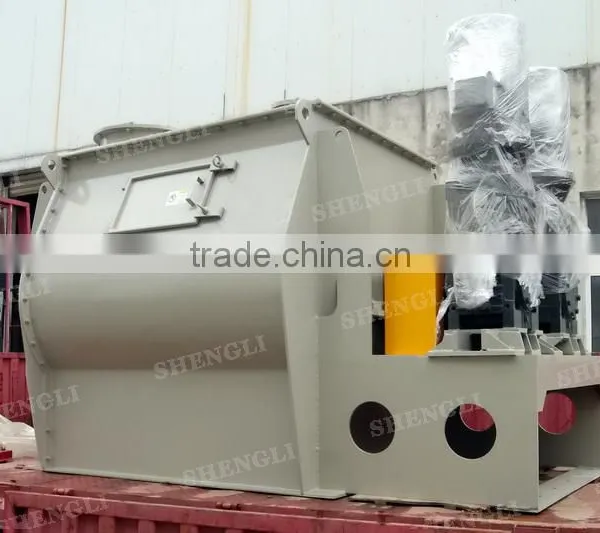

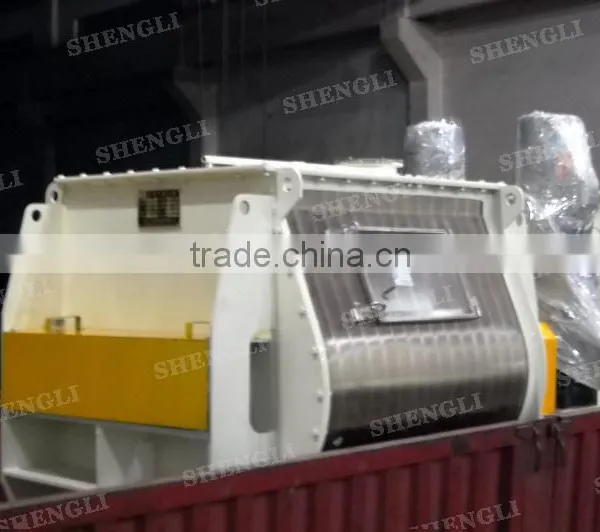

some kinds of ribbon mixers
FAQ
Which payment terms can we accept? |
1. Normally we can work on T/T term or L/C.
2. On T/T term,30% down payment is required in advance. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clauses can be accepted. Please seek the advice form the individual sales manager whom you work with.
Which incoterms 2010 terms can we work? |
Shengli company is a professional and sophisticated international supplier, can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF
Delivery time |
Normally, our delivery time is 45 days after we receive the deposit. If the order is big, we need to extend the delivery time.
What logistics ways we can work for shipment? |
We can ship construction machinery by various transportation tools.
Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.
Warranty time |
We ensure one year warranty, lift-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
