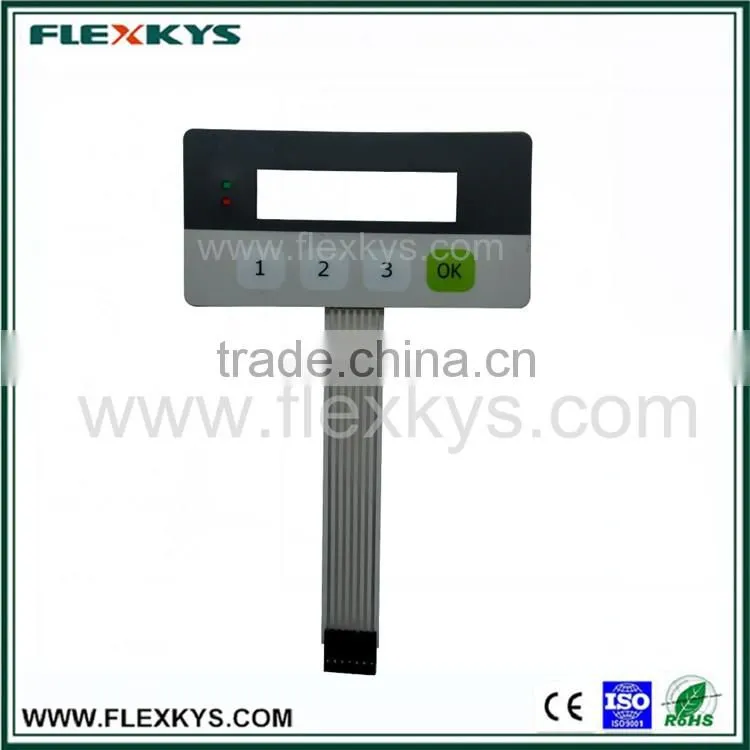

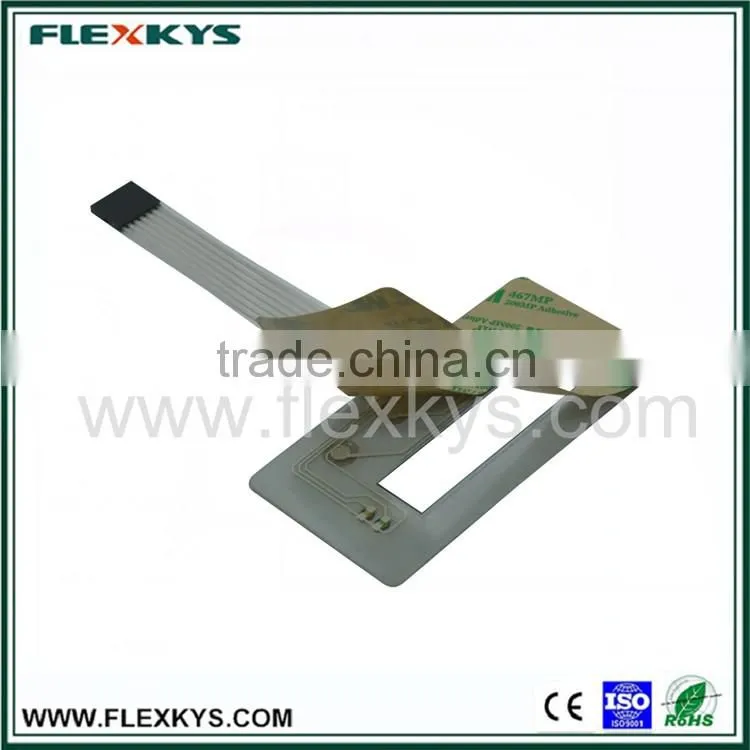

Help CenterChina Factory Led Window Conductive Membrane Switch 4 Buttons
Related Products
-
OEM Membrane Switch Display Panel With Poly Dome KeysUS$ 0.1 - 5MOQ: 100 Pieces -
Round Embossment Polyester Switch Keypad With 3M Adhesive Very GoodUS$ 0.1 - 5MOQ: 100 Pieces
-
Table Tennis Serve Poly Dome Membrane Circuit KeypadUS$ 0.1 - 5MOQ: 100 Pieces
-
Metal Dome Adhesive Circuit Membrane Keypad With Sheiding LayerUS$ 0.1 - 5MOQ: 100 Pieces
-
Ventilation System PET Keypad With 4 Leds 0603US$ 0.1 - 5MOQ: 100 Pieces
What are Silver Flex Membrane Switches (membrane keypad/keyboard switch/thin film switch)?
Silver Flex membrane switches are the most common construction for flexible, custom membrane keypads. It is also the most popular membrane switch construction due to its affordability, especially when compared to bulky, costly electromechanical switch assemblies. Silver flex membranes switches feature very thin flexible layers of material, of which some layers utilize screen printed silver and carbon conductive inks, and are separated by an adhesive layer.
What are the Silver Flex Membrane Switch Design Options?
- Tactile and non-tactile feedback with either metal or poly tactile domes
- Pillow or rim-embossed graphic overlays
- Embedded LEDs
- Fiber Optic backlighting
- EL (Electroluminescent) backlighting
- Rigid backers such as aluminum and FR4
- EMI/RFI shielding
- Graphic overlays that can be digitally printed, screen printed, or a combination of both
- The graphic overlays can incorporate transparent and tinted display windows, as well as selective textures and UV hard-coat surface finishes
- Standard connectors on .100″ centers, or prepared for zif connections
Our polydome membrane switches are renowned for providing absolute reliability even in the most hostile of operating environments. With a vast array of technical specifications available the perfect solution can always be offered by FLEXKYS.
Pictures
Connector
Material
| Part | Ordinary Material | ||
| Finish | Specification | ||
| Graphic Overlay | PC | Gloss | 0.175/.25/.35/.5 mm thickness |
| Matt | 0.175/.25/.35/.5 mm thickness | ||
| PET | Fine Texture | 0.15/.20 mm thickness | |
| Valet Texture | 0.15/.20 mm thickness | ||
| Gloss with Hard Coat | 0.18 mm thickness | ||
| Top Adhesive | PET Double-sided adhesive | 0.10/.22/.28 mm thickness | |
| Paper Double-sided Tape | 0.10 mm thickness | ||
| Transfer Tape | 0.06/.12 mm thickness | ||
| Retainer | PET | Gloss | 0.125 mm thickness |
| Spacer | PET Double-sided Tape | 0.225/.275 mm thickness | |
| Circuit Layer | PET | Gloss | 0.1/.125 mm thickness |
| Rear Adhesive | Paper Double-sided Tape | 0.10 mm thickness | |
| Transfer Tape | 0.06/.12 mm thickness | ||
| Connector | Pin | Metal,Male/Female 2.54mm | |
| House | Female,2.54mm | ||
| Conductive Layer | Silver Paste | Acheson ELECTRODA 820B | |
| Carbon Paste | Acheson ELECTRODA 423SS | ||
| Insulation Ink | Acheson ELECTRODA 452SS | ||
Structure
Electrical Performances membrane switch membrane switch membrane
| Wire Resistance | 0.5mm width,≤1Ω/cm | Rated Current | 25-100mA,0-30V DC |
| Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
| Working Life | >500k times | Working Temperature | -30℃-70℃ |
| Working Humidity | 40℃,98%RH | Withstand Voltage | 1500V DC |
| Feedback Time | 10ms | Tail Folding | R>1,180 |
Our Service & Advantage
ISO9001:2008 Quality Assurance System
Over 10 years customized manufacturing experience.
Sample is free, you just need to bear the shipping cost.
Customized sourcing, purchasing & manufacturing service.
Help clients to upgrade their design & improve the quality of products.
Original Equipment Manufactruing (OEM) & Original Deisgn Manufacturing (ODM)are welcome.
Our sample:
Welcome to Nanjing Momao(Flexkys) Electronic Technology Co., Ltd
Nanjing Momao Electronic Technology Co., Ltd is a customer-oriented manufacturer with 10 years of experience in manufacturing qualified membrane switch products, including silver flex membrane switch, PCB/FPC/silicone rubber membrane keypad, graphic overlay, display window diaphragm, ect.
Nanjing Momao Electronic Technology Co., Ltd possesses advanced production equipment, skilled management personnel and well-trained workers. Every production process is in compliance with the standards of IS0 9001: 2008 strictly. We established a complete quality management system, to ensure strictness and close linking from raw material procurement to deliver. We introduced advanced computer testing equipment to ensure our product qualified.
Production View
Certification
Products
Flexkys at Global Sources Electronic Components Show 2016
embrane switch membrane switch membrane switch membrane switch
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 10~15 days after payment received.
5. Payment terms:100% T/T in advance. membrane switch membrane switch membrane switch
