High quality & low price FPC copper flexible printed circuit switches
- 500000 Piece / Pieces per Month
- Shanghai
- Credit Card
You May Like
-
Camera use FPC copper flexible printed circuit membrane switches
-
Reliable supplier FPC copper flexible printed circuit membrane switches
-
High grade FPC copper flexible printed circuit membrane switches
-
High end FPC copper flexible printed circuit membrane switches
-
USB connecting FPC flexible printed circuit switches with quick shipping
-
New hot selling products FPC copper flexible printed circuit membrane switches
Product Details
| Place of Origin | Jiangsu, China | Brand Name | FLEXKYS | |
| Model Number | FPC Cable | Base Material | FR4 | |
| Copper Thickness | 1oz | Board Thickness | 0.11mm-0.5mm | |
| Min. Hole Size | 0.30mm 0.02mm | Min. Line Width | 0.05 Mm | |
| Min. Line Spacing | 0.076mm | Surface Finishing | Immersion Gold |
Product Description
What are Copper Flex Membrane Switches?
FPC Copper Flex membrane switches can be produced using polyester or polyimide as the base material, depending on your interface requirements. A very thin sheet of copper is laminated to the flexible film substrate then chemically etched away, leaving copper traces. The etching process is not environmentally friendly due to the chemicals used, and is also more expensive than screen printing the silver traces used in Silver Flex membrane switches. Copper Flex switches can be constructed as:
- Single-sided – conductive traces one side of the film substrate
- Double-sided – conductive traces both sides of the film substrate
- Multi-Layer flex – a laminated “sandwich” of numerous layers with conductive traces
- Rigid-Flex – a laminated combination of a Copper Flex switch with a rigid FR4 PCB membrane switch
What are the Advantages of Copper Flex Membrane Switches?
Copper Flex membrane switches are ideal for smaller designs where dense circuit patterns or trace routing limitations exist. This design also allows the ability to accommodate the complex circuit patterns of a FR4 rigid printed circuit board with the flexibility of a membrane switch. Copper Flex keypads also have the advantage of being able to hard solder active and passive components into the assembly, making it a good choice in high-vibration, high-reliability environments.
What are the Copper Flex Membrane Switch Design Options & Considerations?
- Single-sided, double-sided, and multi-layer designs available
- Lower electrical resistance and higher conductivity vs. traditional Silver Flex membrane switches
- Tight trace routing capabilities
- Same thin profile and flexibility as Silver Flex Membrane Switches
- Plating options can be tin-lead, nickel, or gold
- Tactile and non-tactile with either metal or polyester tactile domes
- Pillow or rim-embossed graphic overlays
- LEDs and other components can be soldered and are more robust
- Graphic overlays that can be digitally printed, screen printed, or a combination of both
- The graphic overlays can incorporate transparent and tinted display windows, as well as selective textures and UV hardcoat surface finishes
Comparison Chart
Characteristic | Silver Flex | Copper Flex |
Printing vs. Etching | Conductive silver ink traces are screen printed onto the film substrate. | A sheet of copper is chemically etched away, leaving conductive traces. More expensive than screen printing. |
Pliability/Weight | Silver traces are lightweight and more flexible than solid copper traces. | Solid copper traces are heavier and more durable than softer printed silver traces. |
Conductivity | Resistivity approx 50 mOhms/sq | Lower electrical resistance and higher conductivity. |
Price | Low to Moderate | Expensive to very expensive |
Soldering | No. Components are attached with conductive adhesive. | Ability to solder active and passive components into the switch design. |
Pitch | Minimum of 1.0mm | Possible pitch 0.5mm and 0.3mm for ZIF connector |

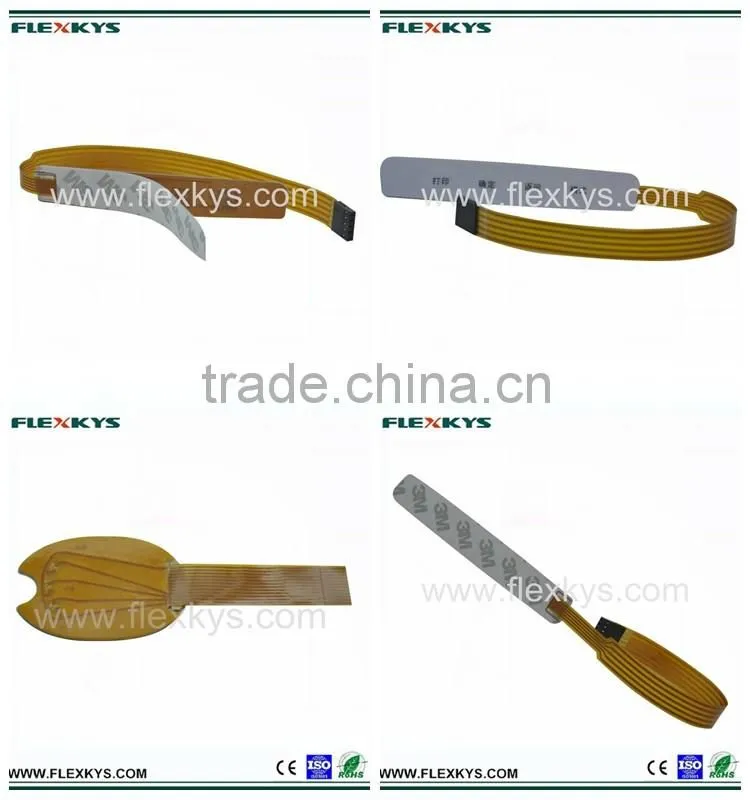

Pictures FPC flexible printed circuit switch FPC flexible printed circuit switch FPC flexible printed circuit switch
Our Service & Advantage
ISO9001:2008 Quality Assurance System
Over 10 years customized manufacturing experience.
Sample is free, you just need to bear the shipping cost.
Customized sourcing, purchasing & manufacturing service.
Help clients to upgrade their design & improve the quality of products.
Original Equipment Manufactruing (OEM) & Original Deisgn Manufacturing (ODM)are welcome.
First put into a polybag per 50 pcs usually, seperated by cardboard, then paked into a 5-layer carton. According to clients' special requirements.
Delivery Detail:
10-15 days after getting payment.
Shipping: by air, by sea & expressage
FPC flexible printed circuit switch FPC flexible printed circuit switch FPC flexible printed circuit switch
Welcome to our Global Sources Electronic Components Show 2016
Name: Global Sources Electronic Components Show
Date: 11th-14th, April 2016
Place : Asia World-Expo, Hong Kong
Booth No.: 9G07
We will wait for you! FPC flexible printed circuit switch FPC flexible printed circuit switch FPC flexible printed circuit switc
Welcome to Nanjing Momao(Flexkys) Electronic Technology Co., Ltd
Nanjing Momao (Flexkys)Electronic TechnologyCo., Ltd is a customer focused contract manufacturer with10years of experience in manufacturing qualified membrane switch products, including PCB Membrane Switch, Copper Flex Membrane Switch,Tactile and Non-tactile Membrane Switch, LED Integrated Membrane Switch , Capacitive Touch Switch,Metal Dome Membrane Swwitch, Poly Dome Membrane Switch,FPC Membrane Switch, Graphic Overlays &Panels&Labels, Silicone keypads&Keyboards and Rubber Keyboards&Keypads, Printed Circuits,etc.
With Nanjing Momao (Flexkys)Electronic Technology Co., Ltd as your collaborating partner we can offer development of prototypes customized production flow and volume production. The size of the contributes the benefits of a smaller companies flexibility, combined with the professionalism and competence of a bigger organization.
To a large extent we can offer customized solutions to our customers both concerning products and logistics.
Our most significant clients are represented within the following branches: electronic scales, safety equipment, household appliance, medical,automotive, and industrial control.
Certifications
FPC flexible printed circuit switch FPC flexible printed circuit switch FPC flexible printed circuit switch
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 10~15 days after payment received.
5. Payment terms:100% T/T in advance.
FPC flexible printed circuit switch FPC flexible printed circuit switch FPC flexible printed circuit switch
