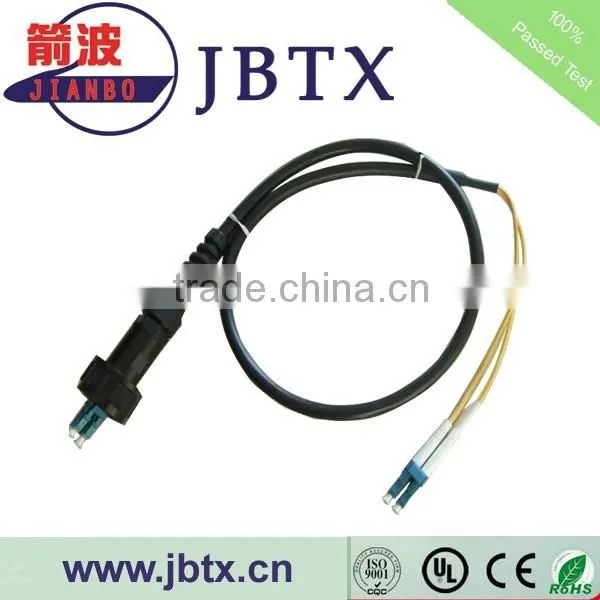

Help CenterLC Single Mold Waterproof Pigtail Patch Cord/Duplex Armoured Pigtail Cord
Related Products
-
OM3 MPO/MTP Patch Cord /JUMPER ,OM3/OM4/MTP Fiber Patch JumperUS$ 0.1 - 0.1MOQ: 100 Pieces -
OM4 Purple Duplex LC/UPC to LC/UPC Fiber Otpci Patch CordUS$ 0.1 - 0.1MOQ: 100 Pieces
-
SC LC FC ST Fiber Patch Cord / Fiber Optic Patch JumperUS$ 0.1 - 0.1MOQ: 100 Pieces
-
Fiber Patch Jumper / SC-LC OM1/OM2 Jumper Fiber Optic Patch CordUS$ 0.1 - 0.1MOQ: 100 Pieces
-
OM1 LC-LC Fiber Optical Jumper Fiber Optic Cable Price per Meter JumperUS$ 0.1 - 0.1MOQ: 100 Pieces
Features:
.IP67 rated to ensure protection from dust and water immersion
.LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3
.Temperature range of -40°C to +85°C
.Bayonet-style mechanical lock
.Flame retardant materials per UL 94 V-0
Applications:
.Harsh environments where chemicals, corrosive gases and liquids are
commonplace
.Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
.Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
.Mobile routers and internet hardware
|
Single-mode |
Multi-mode |
Insertion Loss |
≤0.30dB typical ≤0.40dB maximum |
≤0.25dB ≤0.40dB Maximum |
Return Loss |
≥50.00dB(PC) ≥65.00dB(APC) |
|
Durability |
≤0.20dB typical change,1000matings |
|
Operating Temperature |
-40°C to +85°C |
-40°C to +85°C |
Ferrule Specification |
125.3+1/-0μm, concentricity: ≤1.0μm 125.3+1/-0μm, concentricity: ≤0.5μm APC |
127+3/-0μm, concentricity: ≤4.0μm |
Packing&Delivery
1:Plastic box or as your demand
2:Free shipping once we cooperation
3:Delivery time:payment after 5-8 workdays
Why you choose JBTX be one of your partner?
1. Professional manufacturer, 100% tested, free samples are available.
2. OEM service with 5-year experiences, manufacture as per your request.
3. Warmly services with careful attentions.
4. Can provide your specific inquiry within 24 hours.
5. Save much costs, bring more benifits for customer to expand business.
6.Free shipping and Sample once we're cooperation
Order Now , you'll save your time and $$
Contact:
Tel:+86 632 5639 666
Website:
Your inquiry will be answered within 24 hours .Wishing to be your long-term partner ,please feel free to contact me ,we will do our best for you.
