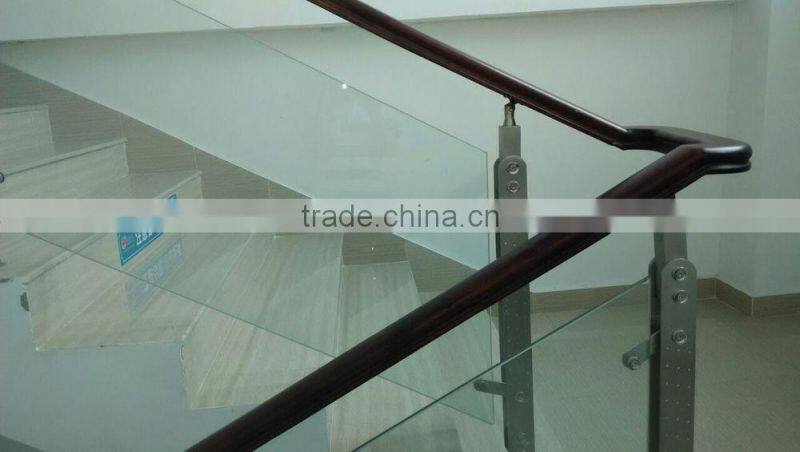

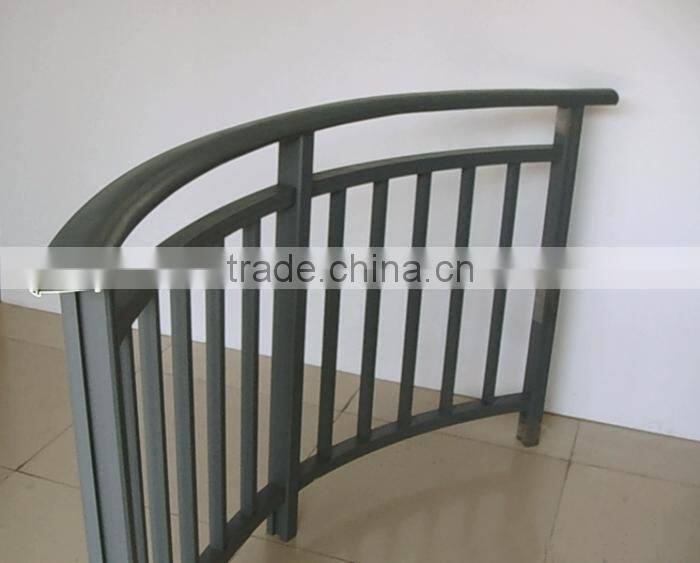

aluminium profiles for stairs handrail

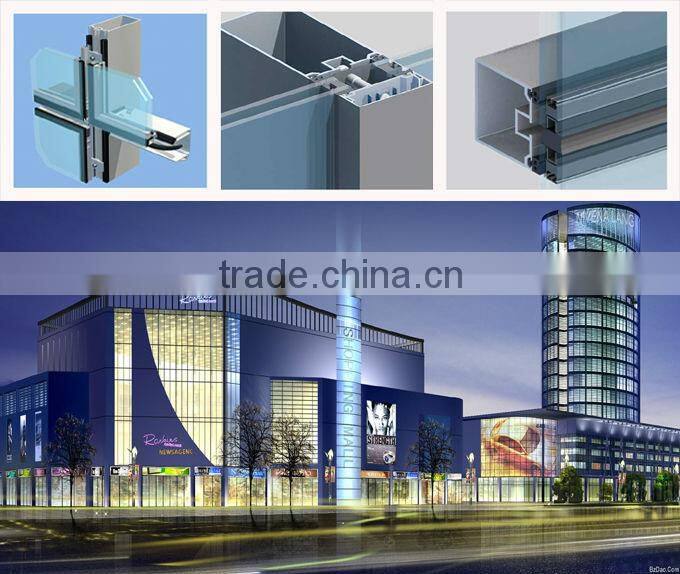

With flexible deasign, the product can meet the requirements of different buliding curtain wall types.
- Having higher wind pressure resistance, water tightness, air tightness, heat insulation & heat presservation and sound insulation & noise reduction.
- Offering the design, manufacture and supply of hardware accessories, sealing joint strip and various matching materials and providing the one-stop service.
-
Having convenient & perfect processing, assembly and installation technology, and high efficiency.
1
Item name
Aluminium profiles
2
Aluminium profile
Standard/energy efficient finished aluminum profile with thickness of 1.2-1.8mm.
3
Aluminum alloy
6063 / 6060 mainly
4
Profile surface treatment
Powder coating(with 70um thickness)
Anodized(with 15um thickness)
Electrophoresis(with 25um thickness)
PVDF(with40um thickness)
5
Glazed(AS2208)
A: single glazed like 5mm or 6 mm glass
B: double glazed like 5+6/9/12+5mm.
C: Laminated glazed like 5+0.38/0.76/1.52+5mm
D: Low-e /tinted /frosted/obscure glazed
E: Can be with colonial/decorative bars
F: All the glass we choose are safety tempered/toughed glazed
6
Glass seal
Rubber(EPDM) or silicone sealant.
7
Hardware
Italy Zuoma brand or made in china
8
Screen fly net
Nylon/Fiber glass/metal material
9
Dimensions
According to your designs
10
Packing
Seaworthy wooden export packing
11
Delivery Period
15-20 days according to your designs
12
Performance
1.Soud insulation:33dB/500HZ 2.Wind pressure resistance:4.0kPa 3.Air permeation
resistance:0.5m²/(h.m.) 4.Water resistance:500Pa 5.U-Value<2.0w/m2.k
aluminum extrusion profile for closet wardrobe door- Meeting customer demands, independent development & design, patent products.
- Economy, environmental protection and high efficiency lead new tendency of aluminum door & window and curtain wall development.
- Advanced structure, perfect technology, regional features.
- Comprehensive and systemic solutions, wide application range.
- Including extruded profiles, design software, hardware accessories, professing equipment, assembly and installation technology.
- Containing two parts like building door & windows and building curtain walls, totaling over 20 series
- The core of the system is the technical support & overall serice.
Chemical Composition 6063 T5 Si Fe Cu Mn Mg Zn Ti Cr Others total others 0.2-0.6 M.0.35 M. 0.1 M. 0.1 0.45-0.9 M. 0.1 M. 0.1 M. 0.1 M. 0.05 0.15 Mechanical property Yield Strength Tensile Strength Extensibility hardness 110Mpa 160Mpa 8% 8 HW Wood-Aluminium wall system
1. Inner wood with natural grain is beautiful, having the decoration effect.
2. With ageing resistance, the outer aluminium extruded profile is firm and durable.
3. Energy saving, environmental protection, beautiful appearance, elegance.
4. Realizing flat-open, flat-open & top-hung, push-pull, folded and other start modes.
5. The product has features like tightness, heat preservation, sound insulation,rain protection
and multi-lock dot anti-theft performance.
6. The product is the best window type of star hotels and high-grade villas.
Product Advantages
1. Plenty of surface treatments for your choice
2. Strict control for surface finish, very little scratch.
3. Accurate mold as well as accurate size.
4. Standard alloy composition
5. Both ends of the profiles are very plain and with no burr.
About Weifang Mario Industrial Trade Co.,Ltd.
1. Founded in 2014, It will be responsible for the whole international export & import items of
Xinyudong Aluminium Co.,ltd. who has 12 years manufacturing experience;
2. 30 million RMB registered capital, 2 factories and 1000 employees;
3. ISO9001: 2008, ISO14001: 2004, ISO10012, AA grade standardize corporate;
4. 41 appearance patents, 2 utility model patents, 1 scientific and technological innovation;
5. “China Famous Brand ", “30 assured quality supplier brand ", “Shandong Famous Brand”.
Certificate
We can provide free design service, provide free samples.
we will take car to pick you if you have plan come to visit us,and we will also arrange you hotel for free.
Business Process:
Inquiry ----> Drawing ----> Mould Confirmation ----> Sample Confirmation ----> Placing Order ----> Delivery
Terms & Conditions of Trade:
1.The price of Aluminum Profile is about USD$2600~USD$3600/ton FOB Qingdao.
Windows and doors is about USD50~USD200/ square meter
(Different Surface Treatment,Different Price)
2.MOQ is 1ton or 30 square meter.
3.T/T and L/C payment is accepted.
4.Terms of Delivery:Ex-workFOBCIF.
5.Lead time:15-20 days.
