Help CenterDigital 7inch Tft Lcd Module With Menu/knob/IR Adjust
Related Products
-
4.3"TFT Color LCD Display Screen 480x272 DotsNegotiableMOQ: 1 Piece -
Unique Design TFT Color LCD Module Display Screen 320 x 240 DotsNegotiableMOQ: 1 Piece
-
3.5" TFT LCD Module Display + 3.5 Inch Driver BoardNegotiableMOQ: 1 Piece
-
LCD Controller for 4.3" TFT LCD Module With Board 480x272Dots 40PinNegotiableMOQ: 1 Piece
-
3.5inch Tft Lcd Monitor Modules With Tft Driver BoardNegotiableMOQ: 1 Piece
Specifications
1)Backlight: LED2):Rated power:2w
3)Signal input: 2 way CVBS
4)Specialized Design
5)Certificate:FCC,CE,RoHs
Descriptions
Use for:
Car monitor Building interphone
car reversing system Industrial controlling system
medical equipment Audio visual equipment
Portable DVD Player Household Video door bell
Video doorphone Digital Camera
Advantage:
Unique design
Free for customer ordering starting LOGO, accepts order the CABLE lines
OEM/ODM based on the customer demands
| 2. Feature: | |

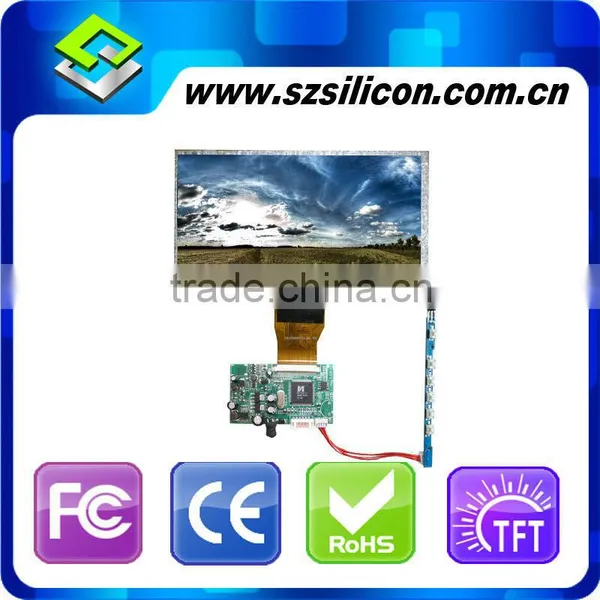

| Product name: | 7"Digital TFT-LCD module |
| Product number: | Silicon-P-008-2 |
| Display | 7"TFT-LCD (16:9) |
| LCD FPC connector | 50pin |
| Backlight: | LED |
| Resolution: | 800(RGB)*480 |
| View Angle(up/down/left/right): | 60/60/70/70 |
| Brightness: | > 400Cd/m2 |
| Signal input: | 2 way digital CVBS |
| System format: | PAL/NTSC(Auto switch) |

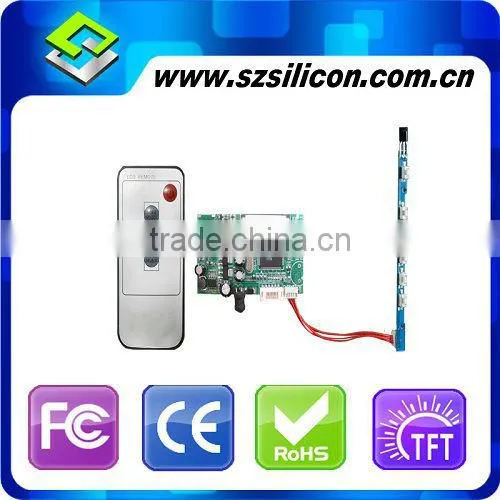

| Adjust model: | Menu/knob/IR adjust(optional) |
| Power Input: | DC 9V-18V, 18V-30V |
| Rated power: | 2W |
| OSD Language | Chinese/English/French/Germany/Korean…(customizable) |
| Display Dimension of LCD(mm): | 153.6(H)*86.64(V) |
| Overall Dimension of LCD(mm): | 165.0(W)*104.0(H)*5.1(D) |
| PCB Structural dimension(mm): | 69(W)*40(H)*7(D) |
| Operating Temperature: | -40~+85 °C |
| Relative Humidity: | 5~95% RH |
| Storage Temperature: | -65~+150°C |
| Packing: | bubble bag and standard export carton |
Certification:
Guarantee :
For the warranty, we always give one year warranty when we sell the products in Chinese Mainland. However, we must apply other methods to handle the after-sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support. Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for the loss.
support :
We will sincerely provide you with quality service!
