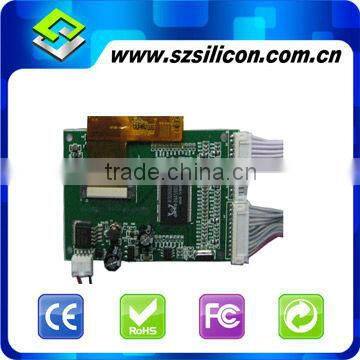

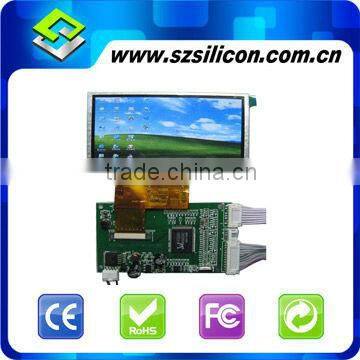

Digital 4.3inch TFT Module With 2way CVBS+VGA

Digital 4.3inch TFT Module With 2way CVBS+VGA thumbnail-1
Digital 4.3inch TFT Module With 2way CVBS+VGA photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Silicon
Model Number:
Silicon-P-004-2
Contact Supplier Request Quote Chat Now
Shenzhen Silicon Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenshen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Silicon
Model Number Silicon-P-004-2
Type Other, TFT, Digital

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:1.2w
4)Signal input: 2way CVBS+VGA
5)Certificate:FCC,CE,RoHs



 Model : Silicon-P-004-2



1.Application:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audio visual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera

 digital 4.3inch TFT module with 2way CVBS+VGAdigital 4.3inch TFT module with 2way CVBS+VGA



2. Feature:
Product name: 4.3" LCD TFT LCD module
Product number: Silicon-P-004-2
Display 4.3"TFT-LCD   (16:9)
LCD FPC connector 40pin
Backlight: LED
Resolution: 480(RGB)*272
View   Angle(up/down/left/right): 50/70/70/70
Brightness: >   300Cd/m2
Signal input:  VGA+2 way CVBS
System format: PAL/NTSC(Auto   switch)
Adjust model: Menu   adjust
Power   Input:      DC 6V-24V
Rated power:        1.2W
OSD Language Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm): 95.04(H)*53.86(V)
Overall Dimension of   LCD(mm): 105.5(W)*67.2(H)*2.85(D)
PCB Structural dimension(mm):  90(W)×58(H)×6.8(D )
Operating Temperature: -20~+70   °C
Relative Humidity: 5~95% RH
Storage Temperature: -30~+80°C
Packing:    bubble   bag and standard export carton



 3. Advantage :



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands



4. Related products:

SIZE A/D board type Signal Input Osd LCD FPC No. Backlight Resolution
3.5" SILICON-P-003 digital 2way CVBS yes 54PIN LED 320*240
SILICON-P-003-2 digital 2way CVBS yes 54pin/60pin LED 320*240
SILICON-P-009 digital 2way CVBS yes 54PIN LED 320*240
Silicon-P-016 digital CVBS yes 54PIN LED 320*242
Silicon-P-31N1-3.5 digital 2way CVBS yes 54PIN LED 320*243
4.0" SiLICON-P-005 digital CVBS yes 40PIN LED 320*240
SiLICON-P-005-2 digital CVBS no 40PIN LED 320*240
SiLICON-P-005-3 digital CVBS yes 54PIN LED 320*240
4.3" SiLICON-P-004 digital 2 way CVBS yes 40PIN LED 480*272
SiLICON-P-010 digital 2 way CVBS yes 40PIN LED 480*272
SiLICON-P-010-2 digital CVBS yes 40PIN LED 480*272
5.7" SILICON-P-017 digital CVBS yes AA057VG02 LED 650*480
6.2" SILICON-P-018 digital VGA+2way CVBS yes 60PIN LED 800*480
6.5" SILICON-P-019 digital VGA+2way CVBS yes 50PIN LED 800*480
7.0" SiLICON-P-002 analog CVBS yes 26PIN LED 480*234
SiLICON-P-006 analog CVBS yes 26PIN LED 480*234
SiLICON-P-006-2 analog 2 way CVBS yes 26PIN LED 480*234
SiLICON-P-006-3 analog CVBS yes 26PIN LED 480*234
SiLICON-P-008 digital CVBS yes 50PIN/60pin LED 800*480
SiLICON-P-008-2 digital 2 way CVBS yes 50PIN LED 800*480
SILICON-P-020 analog VGA+2way CVBS yes 26PIN LED 480*234
10.1" SiLICON-P-007 digital CVBS yes double 30PIN LED 800*480



Certification:

digital 4.3inch TFT module with 2way CVBS+VGA

 digital 4.3inch TFT module with 2way CVBS+VGA

Guarantee :

        For the warranty, we always give one year warranty when we sell the products in Chinese Mainland. However, we must apply other methods to handle the after-sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support.  Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for the loss.



support :





We will sincerely provide you with quality service!
