Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SILICON
Model Number:
Silicon-P-003-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
POP SALE TFT Screen LCD Module With ConnectorNegotiableMOQ: 1 Piece -
CVBS New 3.5 Inch TFT LCD Display ModuleNegotiableMOQ: 1 Piece
-
3.5" TFT Color LCD Module Screen 320 x 240 Dots CVBSNegotiableMOQ: 1 Piece
-
Hot Design TFT LCD Display Module 320x240 With LED BacklightNegotiableMOQ: 1 Piece
-
480x272 LCD 4.3'' TFT Display ModuleNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SILICON
Model Number
Silicon-P-003-2
Base Material
FR4
Copper Thickness
0.18mm
Board Thickness
1.2mm
Min. Hole Size
0.3mm
Min. Line Width
0.127mm
Min. Line Spacing
0.2mm
Surface Finishing
ROHS,Lead Free
Specifications
1.3.5inch car monitor control board2.support 54pin and 60pin LCD
3.Input signal: 2 way AV
4.Rated power:1.2w
5.OSD:YES

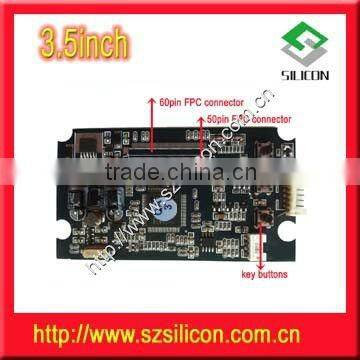

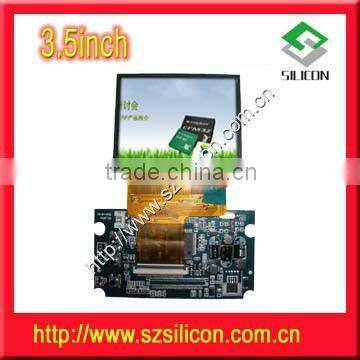

3.5inch car monitor control board
1.Application:
Building interphone, car reversing system
Industrial controlling system, medical equipment
Audiovisual equipment Car display, Portable DVD Player
Household Video door bell, Videophone, Digital Camera
| 2. Feature: | |
| Product name: | 1.3.5inch car monitor control board |
| Product number: | Silicon-P-003-2 |
| Display | 3.5"TFT-LCD (54pin or 60pin 4:3) |
| Backlight: | LED |
| Resolution: | 320(RGB)*240 |
| View Angle(up/down/left/right): | 50/55/60/60 |
| Brightness: | > 300Cd/m2 |
| Signal input: | 2 way CVBS |
| System format: | PAL/NTSC(Auto switch) |
| Adjust model: | Menu adjust |
| Power Input: | DC 9V-18V |
| Rated power: | 1.2W |
| OSD Language | Chinese/English/French/Germany/Korean…(customizable) |
| Display Dimension of LCD(mm): | 70.08(H)* 52.56(V) |
| Overall Dimension of LCD(mm): | 76.9(W)* 63.9(H)*3.15(D) |
| PCB Structural dimension(mm): | 88.0(W)*58(H)*6.8(D) |
| Operating Temperature: | -20~+70 °C |
| Relative Humidity: | 5~95% RH |
| Storage Temperature: | -30~+80°C |
| Packing: | bubble bag and standard export carton |
3. Advantage :
Unique design,Free for customer ordering starting LOGO, accepts order the CABLE lines,OEM/ODM based on the customer demands
