7 inch analog lcd panel driver board > 400Cd/m2
- 2000 Piece / Pieces per Month
- SHENZHEN
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | silicon | Model Number: | Silicon-P-002 |
Type: | TFT |
Product Description
Specifications

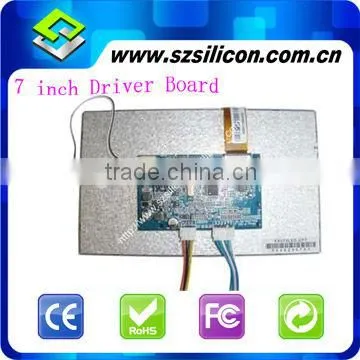

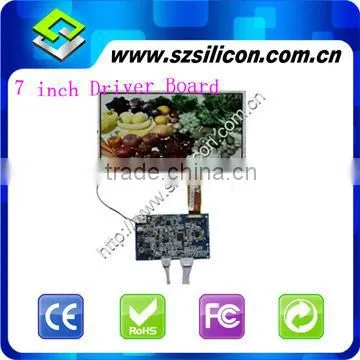

Unique design,Free for customer ordering starting LOGO, accepts order the CABLE lines,OEM/ODM based on the customer demands.7 inch Analog TFT-LCD driver board
high quality driver board
new driver board
1.Application:
Building interphone, car reversing system, Industrial controlling system, medical equipmentAudiovisual equipment Car display, Portable DVD Player Household Video door bell, Videophone, Digital Camera.
2. Feature: | |
Product name: | 7"Analog TFT-LCD driver board |
Product number: | Silicon-P-002 |
Display | 7"TFT-LCD (26PIN 16:9) |
Backlight: | LED |
Resolution: | 480(RGB)*234 |
View Angle(up/down/left/right): | 60/60/70/70 |
Brightness: | > 400Cd/m2 |
Signal input: | 1 way analog CVBS |
System format: | PAL/NTSC(Auto switch) |
Adjust model: | Menu adjust |
Power Input: | DC 9V-15V |
Rated power: | 2W |
OSD Language | Chinese/English/French/Germany/Korean…(customizable) |
Display Dimension of LCD(mm): | 154.08(H)*86.58(V) |
Overall Dimension of LCD(mm): | 162.5(W)*95.5(H)*5.5(D) |
PCB Structural dimension(mm): | 82(W)*50(H)*7(D) |
Operating Temperature: | -20~+70 °C |
Relative Humidity: | 5~95% RH |
Storage Temperature: | -30~+80°C |
Packing: | bubble bag and standard export carton |
3. Advantage : |
4.warranty:
For the warranty, we always give one year warranty when we sell the products in Chinese Mainland.However, we must apply other methods to handle the after sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support. Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for theloss. |
