Video Doorphone 320RGB*240 3.5" LCD Control Panel

Name: Video Doorphone 320RGB*240 3.5" LCD Control Panel
Brand: Silicon
SKU: 134340945
Availability: InStock

Shenzhen Silicon Electronics Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Silicon

Model Number:

Silicon-P-003

Type:

TFT

Payment & Shipping

Payment Methods:

Port of Shipment:

Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Silicon

Model Number Silicon-P-003

Type TFT

Specifications

1.warranty: one year
2.Display: 3.5" TFT/LCD
3.Resolution: 320*240(Digital)
4.Rated Power: 1.2w
5.Backlight: LED

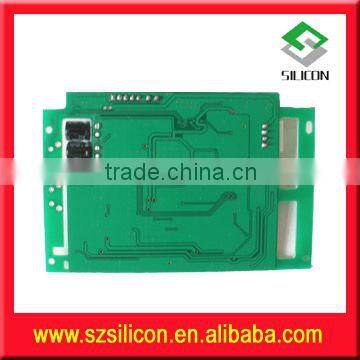

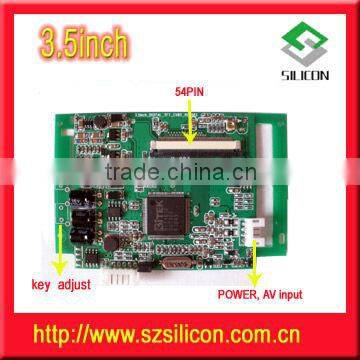

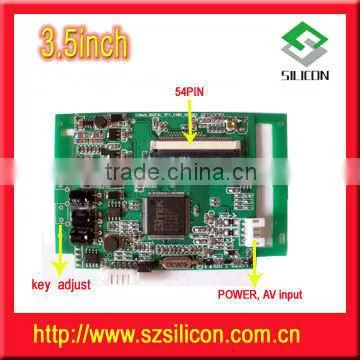

Video Door Phone 3.5" LCD Control Panel

Model:Silicon-p-003

1. Applicaitons:

Car Monitor Car reversing system,

The Building interphone Doorbell visualization,

Visual telephone Monitoring equipment,

On-vehicle Display Portable DVD Player,

Bank System POS Machine and other devices

. Feature:
Product name:	3.5" LCD Control Panel
Product number:	Silicon-P-003
Display	3.5"TFT-LCD (54PIN 4:3)
Backlight:	LED
Resolution:	320(RGB)*240
View Angle(up/down/left/right):	50/55/60/60
Brightness:	> 300Cd/m2
Signal input:	2 way CVBS
System format:	PAL/NTSC(Auto switch)
Adjust model:	Menu adjust
Power Input:	DC 9V-18V
Rated power:	1.2W
OSD Language	Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm):	70.08(H)* 52.56(V)
Overall Dimension of LCD(mm):	76.9(W)* 63.9(H)*3.15(D)
PCB Structural dimension(mm):	88.0(W)58(H)6.8(D)
Operating Temperature:	-20~+70 °C
Relative Humidity:	5~95% RH
Storage Temperature:	-30~+80°C
Packing:	bubble bag and standard export carton
