Home > Consumer Electronics > Display & Accessories > LCD Module > Fantastic 7inch TFT LCD Panel for Tft Lcd Driver Board

Fantastic 7inch TFT LCD Panel for Tft Lcd Driver Board

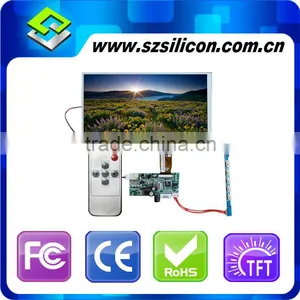

Fantastic 7inch TFT LCD Panel for Tft Lcd Driver Board thumbnail-1
Fantastic 7inch TFT LCD Panel for Tft Lcd Driver Board photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Silicon
Model Number:
Silicon-P-006-4B
Type:
Other, TFT, analog
Contact Supplier Request Quote Chat Now
Shenzhen Silicon Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenshen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Silicon
Model Number Silicon-P-006-4B
Type Other, TFT, analog

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:2w
4)Signal input: 2way analog CVBS
5)Specialized Design + high quality

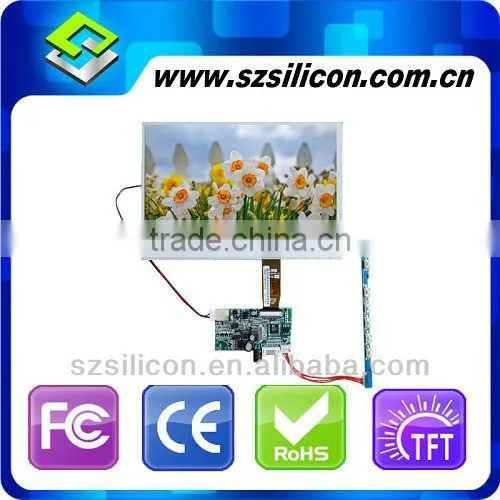

fantastic 7inch TFT LCD Panel for tft lcd driver board





 Model :  Silicon-P-006-4B



1.Application:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audio visual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera





2. Feature:
Product name: 7"Analog TFT-LCD  panel with Driver Board
Product number: Silicon-P-006-4B
Display 7"TFT-LCD   (26PIN 16:9)
Backlight: LED
Resolution: 480(RGB)*234
View   Angle(up/down/left/right): 60/60/70/70
Brightness: >   400Cd/m2
Signal input:  2 way analog   CVBS
System format: PAL/NTSC(Auto   switch)
Adjust model: Menu/knob/IR   adjust(optinnal)
Power   Input:      DC 9V-18V
Rated power:        2W
OSD Language Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm): 154.08(H)*86.58(V)
Overall Dimension of   LCD(mm): 162.5(W)*95.5(H)*5.5(D)

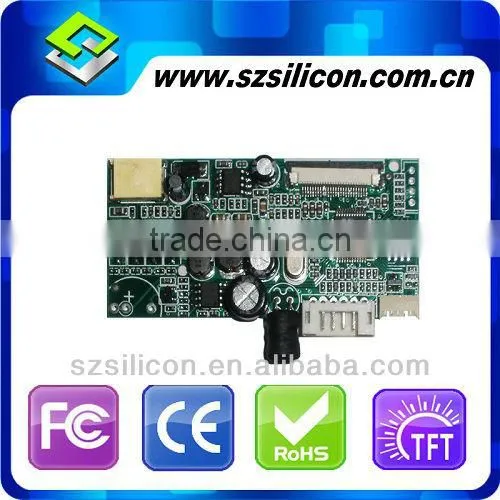

PCB Structural dimension(mm): 62(W)*30(H)*5(D)
Operating Temperature: -20~+70   °C
Relative Humidity: 5~95% RH
Storage Temperature: -30~+80°C
Packing:    bubble   bag and standard export carton



fantastic 7inch TFT LCD Panel for tft lcd driver boardfantastic 7inch TFT LCD Panel for tft lcd driver board



 3. Advantage :



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands



4. Related products:

SIZE A/D board type Signal Input Osd LCD FPC No. Backlight Resolution
3.5" SILICON-P-003 digital 2way CVBS yes 54PIN LED 320*240
SILICON-P-003-2 digital 2way CVBS yes 54pin/60pin LED 320*240
SILICON-P-009 digital 2way CVBS yes 54PIN LED 320*240
Silicon-P-016 digital CVBS yes 54PIN LED 320*242
Silicon-P-31N1-3.5 digital 2way CVBS yes 54PIN LED 320*243
4.0" SiLICON-P-005 digital CVBS yes 40PIN LED 320*240
SiLICON-P-005-2 digital CVBS no 40PIN LED 320*240
SiLICON-P-005-3 digital CVBS yes 54PIN LED 320*240
4.3" SiLICON-P-004 digital 2 way CVBS yes 40PIN LED 480*272
SiLICON-P-010 digital 2 way CVBS yes 40PIN LED 480*272
SiLICON-P-010-2 digital CVBS yes 40PIN LED 480*272
5.7" SILICON-P-017 digital CVBS yes AA057VG02 LED 650*480
6.2" SILICON-P-018 digital VGA+2way CVBS yes 60PIN LED 800*480
6.5" SILICON-P-019 digital VGA+2way CVBS yes 50PIN LED 800*480
7.0" SiLICON-P-002 analog CVBS yes 26PIN LED 480*234
SiLICON-P-006 analog CVBS yes 26PIN LED 480*234
SiLICON-P-006-2 analog 2 way CVBS yes 26PIN LED 480*234
SiLICON-P-006-3 analog CVBS yes 26PIN LED 480*234
SiLICON-P-008 digital CVBS yes 50PIN/60pin LED 800*480
SiLICON-P-008-2 digital 2 way CVBS yes 50PIN LED 800*480
SILICON-P-020 analog VGA+2way CVBS yes 26PIN LED 480*234
10.1" SiLICON-P-007 digital CVBS yes double 30PIN LED 800*480









 12month warranty

fantastic 7inch TFT LCD Panel for tft lcd driver board

 fantastic 7inch TFT LCD Panel for tft lcd driver board
