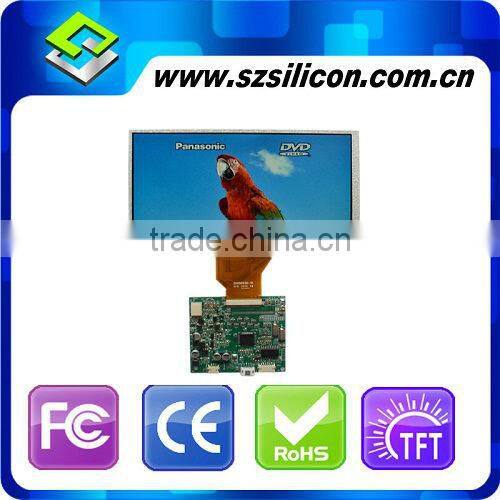

Hot Selling Digital, Lcd Dislay Control Board(50/60pin)

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:2w
4)Signal input: 1 way CVBS
5)Specialized Design + high quality











Descriptions



Use for:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audio visual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera



Advantage:



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands





Features

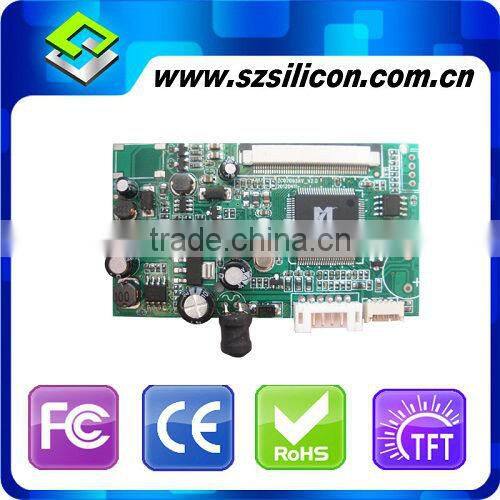

Product   name:	7"Digital   TFT-LCD Control Board
Product number:	Silicon-P-008
Display	7"TFT-LCD   (50PIN/60pin 16:9)
Backlight:	LED
Resolution:	800(RGB)*480
View Angle(up/down/left/right):	60/60/70/70
Brightness:	>   400Cd/m2
Signal input:	1 way digital   CVBS
System format:	PAL/NTSC(Auto   switch)
Adjust model:	Menu/knob/IR   adjust(optinnal)
Power   Input:	DC 6V-24V
Rated power:	2W
OSD Language	Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm):	153.6(H)*86.64(V)
Overall Dimension of   LCD(mm):	165.0(W)*104.0(H)*5.1(D)
PCB Structural dimension(mm):	77(W)*66(H)*7(D)
Operating Temperature:	-40~+85   °C
Relative Humidity:	5~95% RH
Storage Temperature:	-65~+150°C
Packing:	bubble   bag and standard export carton



















Certification:







Guarantee :

        For the warranty, we always give one year warranty when we sell the products in Chinese Mainland. However, we must apply other methods to handle the after-sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support.  Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for the loss.



support :







We will sincerely provide you with quality service!
