Home > Products > Soldering Iron&Hot Air Gun > Lead Free Soldering Iron station for motherboard bga chip Shuttle Star 205
Lead Free Soldering Iron station for motherboard bga chip Shuttle Star 205
- 10000 Set / Sets per Month
- Shenzhen/HK
- T/T Credit Card
- Portable LED Smart Soldering Iron with C210 Series Tips
- SS-S210 110W Portable LED Smart Soldering Iron with C210 Series Tips
- 1300W Quick 881D Hot Air Rework Station Super Power 861DW
- 220V SONER-8786D 2 In 1 Dual Display SMD Hot Air Rework Soldering Station
- 220V Quick 2008 700W Hot Air Rework Soldering Station with Heat Gun
- 65W Digital OLED TS100 TS-B2 Mini Portable Programmable Electric Soldering Iron
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Shuttle Star |
Model Number: | 205 | Input Voltage: | 110V/220V | Output Temperature: | 50~600 |
Temperature Stability: | 2 C(static) | Output Power: | 150w | Dimensions: | 200*130*100mm |
Certification: | CE RoHS | After-sales Service Provided: | No overseas service provided |
Product Description

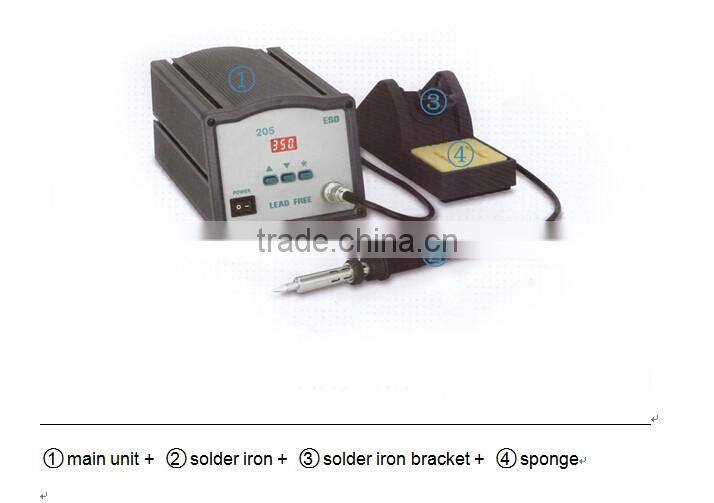

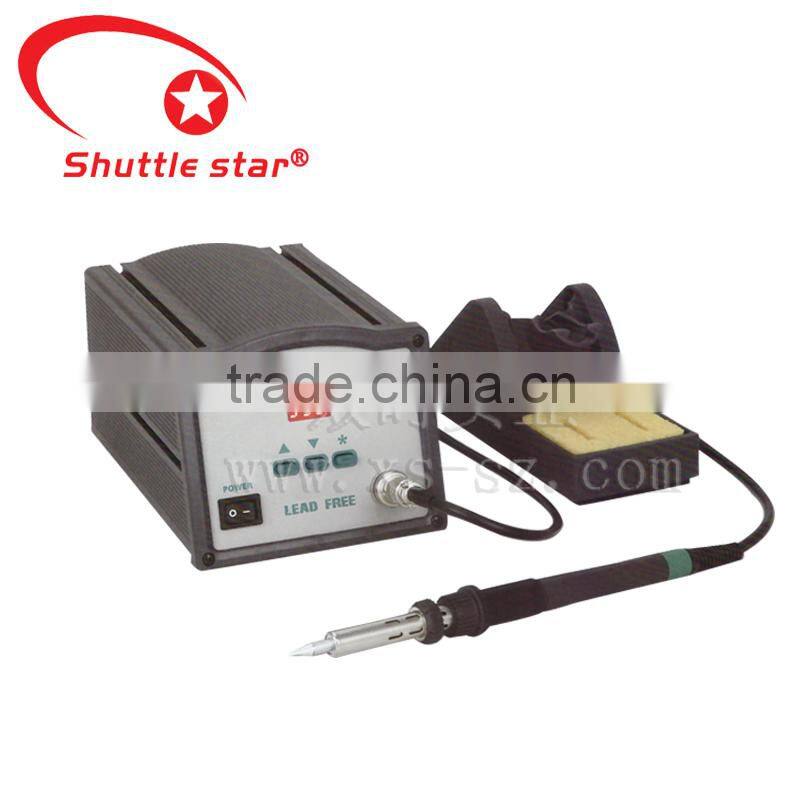

Lead Free Soldering Iron station for motherboard bga chip Shuttle Star 205
1.High-frequency eddy current heating, heating and warmed faster, more suitable for low temperature soldering sites, high-quality lead-free soldering;
2.Microcomputer control, the button type thermal control, digital temperature calibration, and is equipped with automatic dormancy and automatic shutdown function;
3.150W high power design, Max 8mm solder tip enable;
4.Temperature password lock function effectively to protect the production process;
5.The heater plug type design, maintenance more convenient.
Specification:
Working Voltage: AC220V/50HZ
Temp Range: 50~600℃
Max instantaneous power: 150W
Temp stability(un load): ±2℃
Tin to Ground Resistance: <2Ω
Tin to Ground Potential: <2mV
Temperature Calibration: Digital
Weight: Approx 2.7Kg
Dimension: L200*W130*H100mm

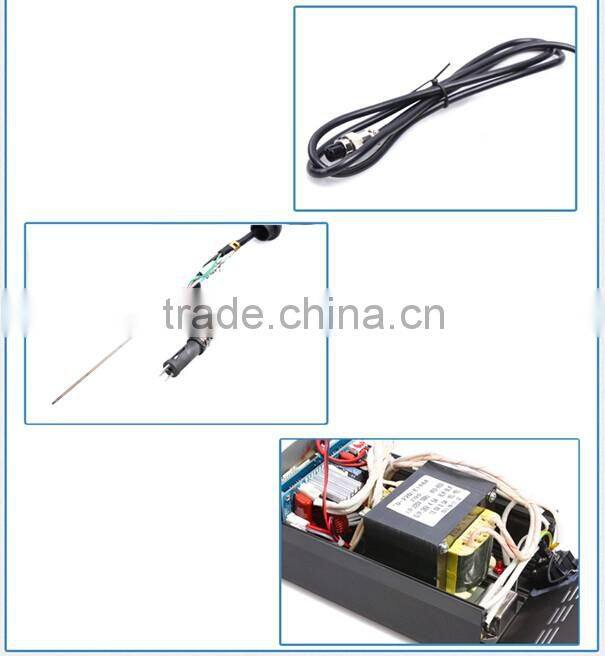

Accessories Option:
Handgrip: 150W
Heating Element: 150W Plug type heater
Suitable solder tip: 500 Series solder tip
Wooden box or carton box
Why should you trust us
1.Shutte Star established in 2000,we are gold member on Alibaba, ,Made-in-China, customers covers Worldwide, especially in North America, Europe, Middle East, India, South America.
2.Factory equipped with 200 workers, metal plate,
technology ,assemble ,debugging ,QC ,aftersales service department,
3.Capacity: 500sets/Month,ship on time
4.The Exhibition we attend: nepcon
Payment
T/T (Bank transfer), Western Union
Large order for T/T, small order for Western Union
Warranty
1 year for all machine
If any parts get broken under normal usage,shuttlestar will replace a new one for you and all the shipping cost is on seller's party
Shipping
DHL, UPS, TNT, EMS,By Sea,By Air,we will choose the cheapest for you.
How long judge by the city
Import taxes
To help you reduce import taxes, we can declare low value on the Invoice
