Manual BGA Rework Station With Optical Vision System (RW-SV520)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
shuttlestar
Model Number:
RW-SV520
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XBOX/PS2/3 Chipset Repair Machine (RW-SV550)NegotiableMOQ: 1 Unit -
SV550A Shuttle Star Auto BGA Machine With Two CamerasNegotiableMOQ: 1 Set
-
Shuttlestar BGA Reflow Machine for Motherboard Repair RW-SV550NegotiableMOQ: 1 Piece
-
Auto BGA Reballing Machine With Two Camera SV550ANegotiableMOQ: 1 Set
-
Cost-effective BGA Rework Station SV550 for Large Motherboards RepairNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
shuttlestar
Model Number
RW-SV520
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
*3 heaters*BGA rework station;
*manual machine with vision,
*embedded industrial computer system
*laptop/motherboard repair

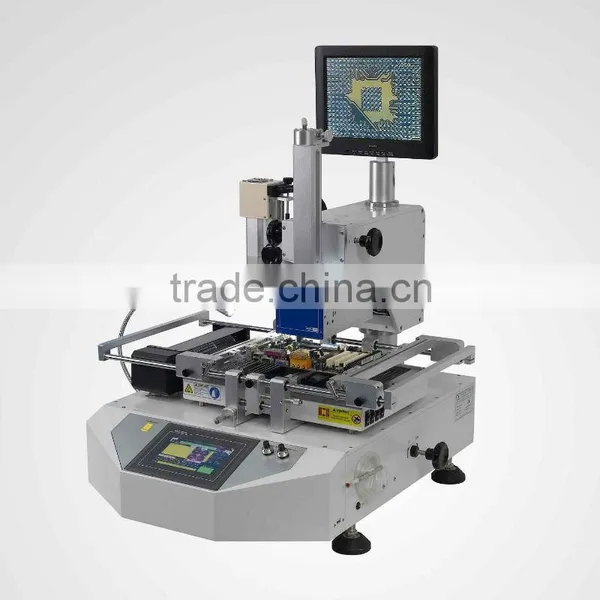

Manual BGA Rework Station with optical vision system (RW-SV520)
Specification:
Applicable PCB: |
W20*D20~W450*D450mm |
PCB thickness: |
0.5~4mm |
Working table adjustment: |
±10mm forward/backward, ±80mm left/right |
Temperature control: |
K-type thermocouple, close cycle controlled |
Upper heater(hot air): |
600W |
Lower heater(hot air): |
800W |
Bottom IR heater: |
2700W |
Power supply: |
AC singal-phase 220V 50/60Hz |
Applicable BGA: |
1*1~70*70mm |
Placement precision: |
0.01mm |
Max BGA weight: |
300g |
Machine Weight: |
110KG |
Machine Dimension: |
L700*W650*H800mm |
----------------------------------------------------------------------------------------------------------------------Features:
