1220*3200mm 3mm 4mm Color Coating Cupboard Board Aluminum Composite Panel Acp Sheet

FOB Price

US$ 5 - 20 / Square Meter

1000 Square Meters(Min. Order)

Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	sunshine
Model Number	1220*2440	Usage	Outdoor
Function	Anti-Static, Antibacterial, Fireproof, Mould-Proof	Surface Treatment	Mirror, PE Coated, Printing, PVDF Coated, Other

Product Description

WELCOME!

We have two adventages .

No.1 Materials produce by ourselves

- Our factory produce ACP material aluminum coil and polyester painting by ourself .

Which could reduce the purchase charge, cut down the cost and make us control well the quality in the processes of production.

No.2 Bonded Zone avold the taxes,save the time

- Our new production center in Linyi Bonded Zone , get government big support.

Which could avoid many types taxes, save time , promote the import and export .

Shandong Aluminum Composite Panel Manufacturer

1.Specifications

Standard size

1220*2440*3mm and 1220*2440*4mm

Accepted Width

Max:1580mm

Accepted Length

Max:6000mm

Accepted Thickness

2mm,3mm,4mm,5mmm,6mm

Aluminum alloy thickness

0.10mm	0.15mm	0.18mm	0.21mm	0.25mm
0.3mm	0.35mm	0.40mm	0.45mm	0.50mm

Weight

5 kg/m2 base on 4*0.4mm

2.Seaworthy packing

1) 20 foot container: 2mm panel-6000M2, 3mm panel-5000M2, 4mm panel-4000M2, 5mm panel-3000M2.

2) 40 foot container:2mm panel-8000M2, 3mm panel-7000M2, 4mm panel-6000M2, 5mm panel-5000M2.

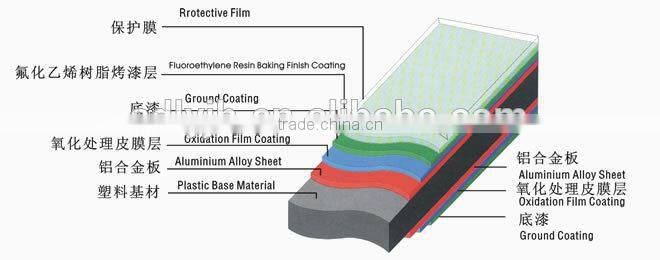

3.Material

1) Top: aluminum alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting.

2) Core:non-toxic polyethylene or fireproof material(B1).

3) Back:aluminium alloy sheet coated with polyester resin painting.

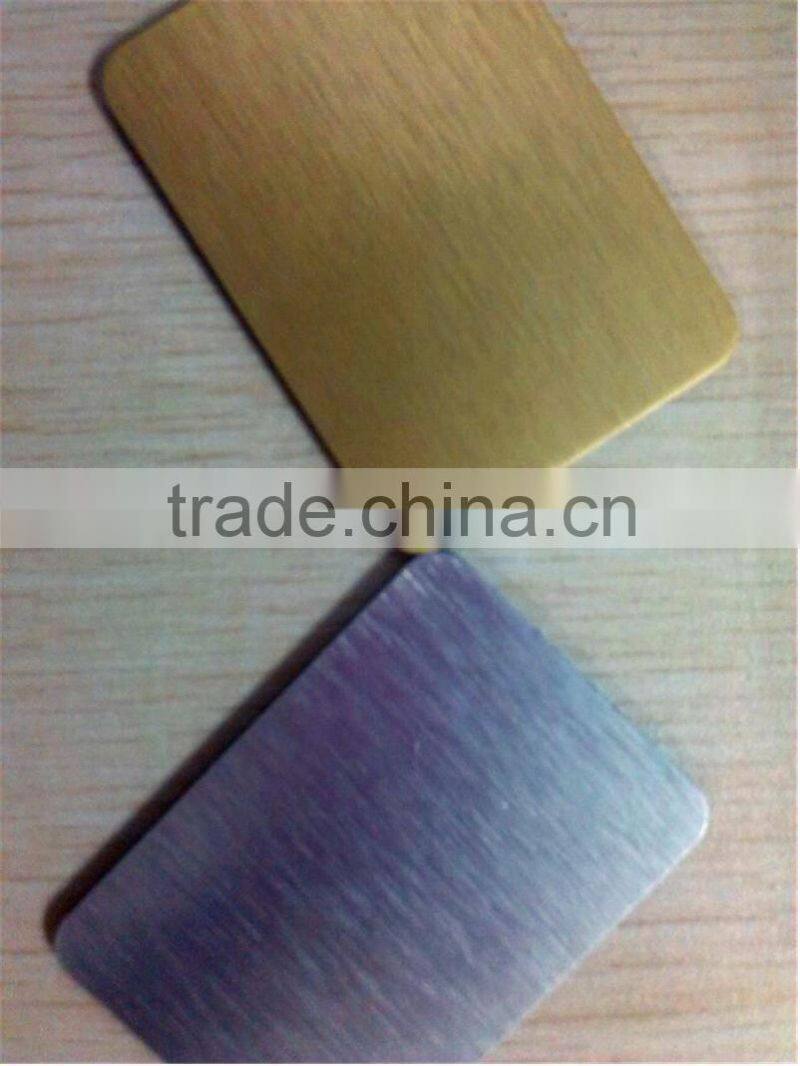

4) Surface finish: PVDF / PET coated,brushed finish, mirror finish, wooden faced,marble faceed ,nano paintingect.

5) Surface coating thickness :25~30 μm 70% KYNAR 500 PVDF or PET.

4.Feature

1)Super werther resistance

2)Light weight easy to process

3)Excellent fire resistance

4)Excellent impact strength

5)Uniform and colorful coating

6)Easy maintenance.

5.Certification

According to GB/T17748-1999 standard and ISO9001,SGS,CE etc.

6.MOQ

MOQ:1000 SQM , Stock size could be less .

7.Delivery time

Within 15 work days after receiving the first deposite payment .

8. Payment

T/T, L/C

10.Production capacity

Average 3500 SQM/Day

Shandong Aluminum Composite Panel Manufacturer

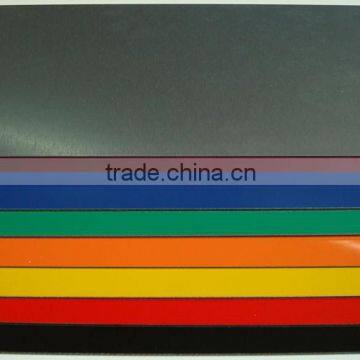

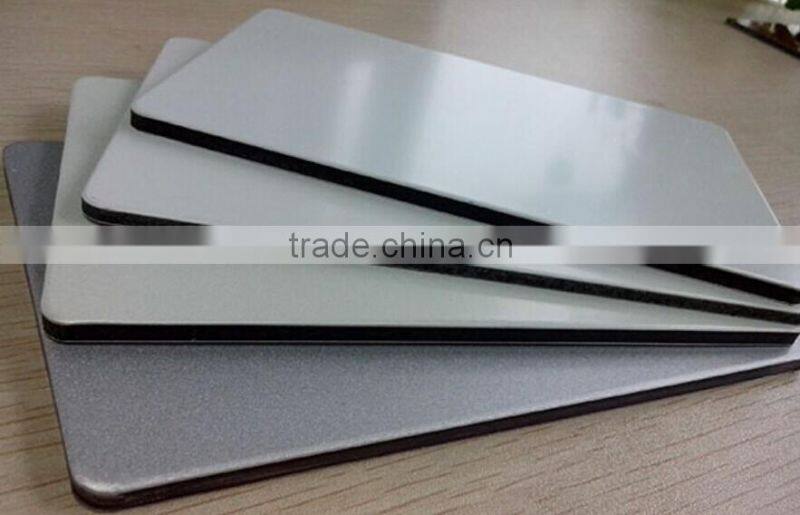

3mm PE acp/ granite / glossy / mirror /drawing aluminum composite panel / wood finished aluminum composite panel

PVDF Aluminum Composite Panel:

By adopting PVDF paints from the two toppest paint supplier: American PPG and Sweden Beckers, Megabond® PVDF Aluminum Composite Panel is the most ideal material for facade cladding, curtain wall cladding and other outdoor using purpose.

PVDF is short for Polyvinlylidene Fluoride, the color will have no obvious change within 15 to 20 years when it’s applied outdoor. PVDF paint should be 2-layer coating or 3-layer coating, and Painting Thickness ≥25um., Fluorocarbon Powder ≥70%.

Polyester(PE) Aluminum Composite Panel:

Due to Polyester paints’s great nature, it can achieve versatile vivid color and achive higher gloss rate than PVDF. Megabond® Polyester Aluminum Composite Panel is ideal for interior wall and shopfront decoration and signaboard materials. And it can lower your budget the most.

With Polyester, the color has 5 to 10 years color warranty. Painting Thickness ≥18um, usually its a 1-layer coating or 2-layer coating.

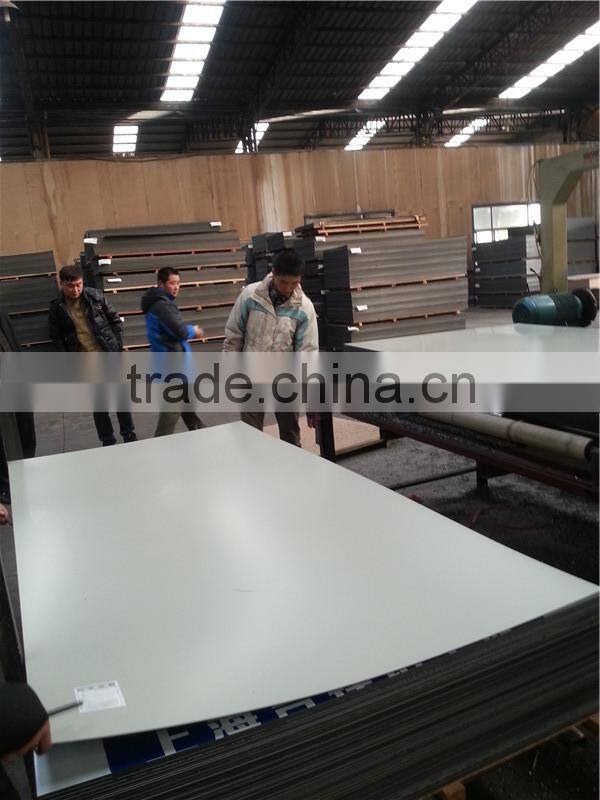

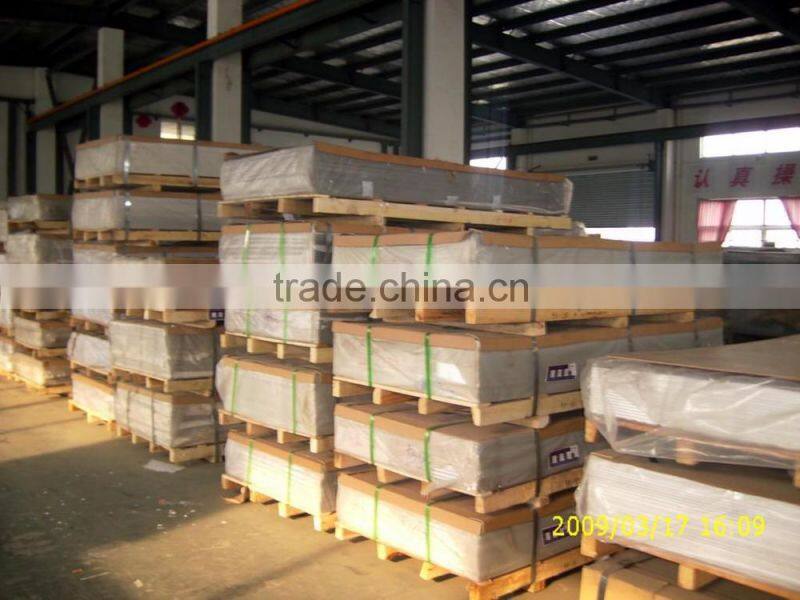

*Package

3mm aluminum composite panel/pvdf exterior aluminum composite panel acp

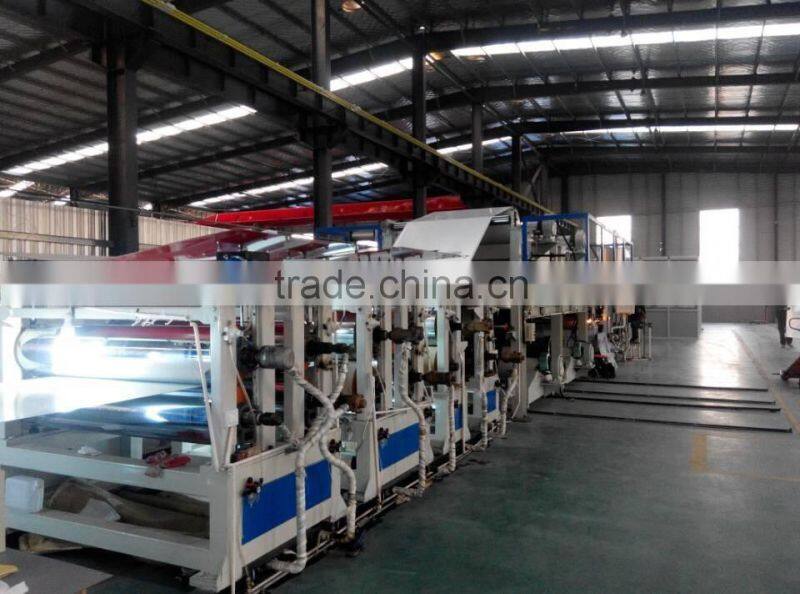

Production Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Aluminum Composite Panel Line	YF & 2750, 1800, 1700	4	7.0	Acceptable
Cutting Machine	JB11-4X1500, JB11-3X3500, QF11-3X1500, QF-3X1300	4	6.0	Acceptable
Trimming Machine	TSC125*350	1	3.0	Good
Plate Leveler Machine	PZ-3700X5000	1	7.0	Acceptable

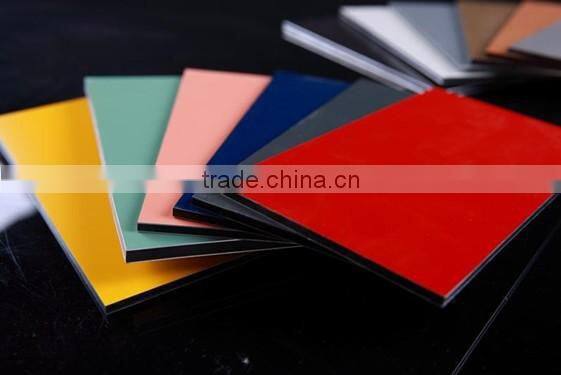

unbreakable Aluminum Composite Panel ACP both sides coated with PE or PVDF

Testing Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Peeling Force Tester	TGS-500TV	1	6.0	Acceptable
Coating Waste Tester	QFS	1	6.0	Acceptable
Color Assessment Cabinets	No Information	1	6.0	Acceptable

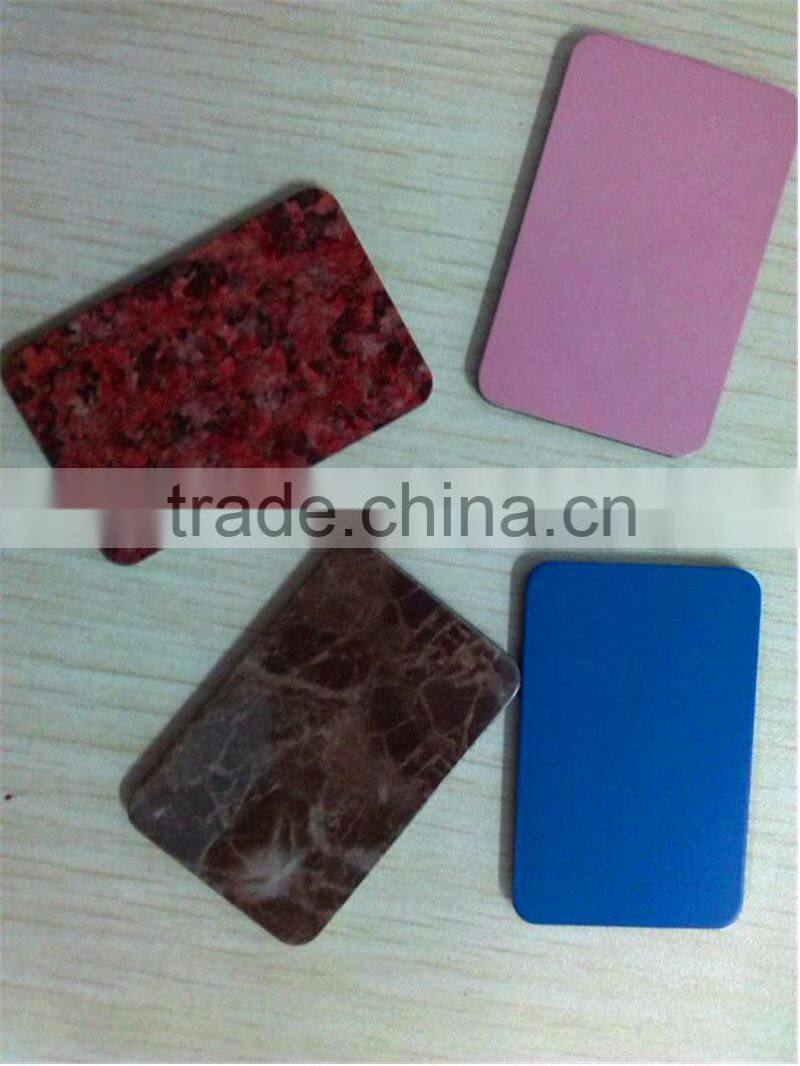

3mm PE acp/ granite / glossy / mirror /drawing aluminum composite panel / wood finished aluminum composite panel

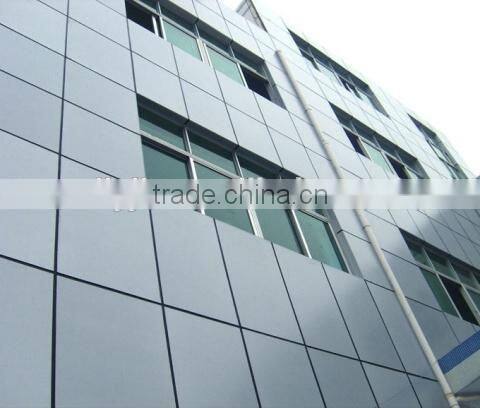

*Project cases show

two side Bright Siver/ivory white 3mm interior/exterior Decorative laminated ACP aluminium composite panel price

*Lovely colleague and certificate
