Specifications
1.stucco-embossed aluminum coil2.Max width:1400mm
3.thickness:0.25-0.60mm
4.used for roofing ceiling

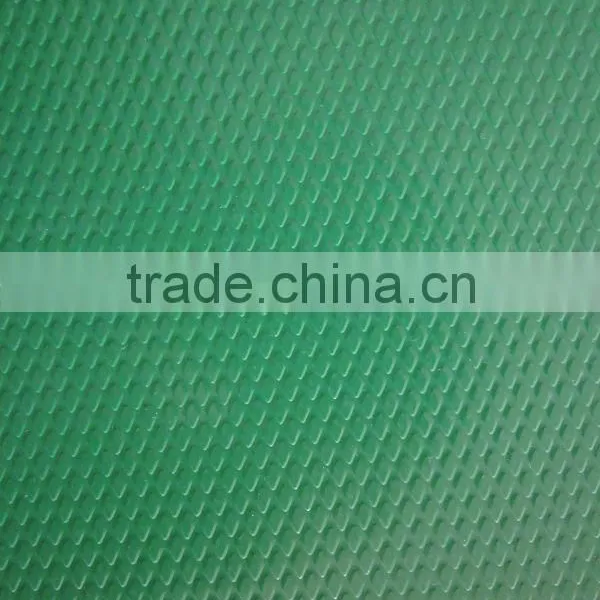

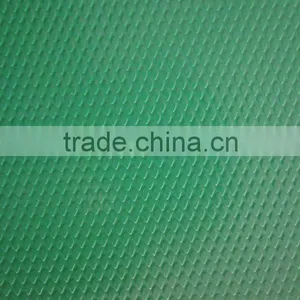

STUCCO EMBOSSED ALUMINUM COIL
We are the biggest manufacture of color coated aluminum coil and stucco-embossed aluminum coil in the North of China .established in 2002. now we have five production line .mainly produce aluminum thickness is from 0.02mm-1.00mm with PVDF , PE AND ACRYLIC coating ,and the max width is 1600mm .stucco-embossed aluminum coil include Gridirion pattern , Diamond pattern ,Indication pattern etc.
Here is our products specification for your reference :
Specifications:
01) Alloy: A3003 A1100 A8011 etc
02) Aluminum thickness: 0.02mm~1.0mm
03) Aluminum max width:1600mm
Standard width: 1240mm
Special width such as 1300mm, 1520mm, 1570mm, 1595mm are also available
04) Coil's standard diameter: 1200mm
Interior diameter:150mm,405mm or 505mm
05) weight: 2.5T/coil 3.0 T/coil
06) Coating finish: PVDF, POLYESTER, ACRYLIC
07) Gloss: meet the customer requirement
08) Total coating thickness:
PVDF coating: more than 25 micron
Polyester coating: more than 18 micron
09) Coating hardness (pencil hardness) more than 2H
10) coating adhesive : no lower than first grade
11) Impact resistance: No cracking and peeling (50kg/cm ,ASTMD-2794:1993)
12) Flexibility (T-bend): 2T
13) MEK resistance: more than 100
14) Bottom side aluminum sheet is coated with protective polyester material, thickness more than 6 micron
15) outer packing ;export standard , wooden plate .
kindly give me your detail of requirement for the A.C.P . as soon as posssible.
we are expecting to start our business by offering high quality and competitive price in the future .
thanks and regards !
LINYI JINHU COLOR COATING ALUMINUM INDUSTRY CO.,LTD
